Atmos PX10 pellet boiler 10 kW with integrated pellet container

Atmos PX10 pellet boiler – 10kW

Product description

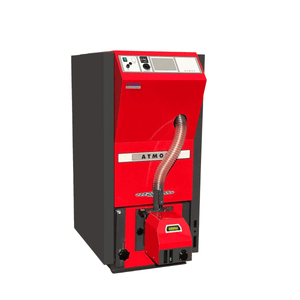

The Atmos PX10 is a compact pellet boiler for single-family homes and smaller apartment buildings. With its integrated pellet hopper, auger, and the ATMOS A25 pellet burner, it offers a space-saving, complete solution. Automatic ignition and control ensure convenient and efficient heating with wood pellets.

Highlights

• Compact design with integrated pellet hopper (65 l)

• efficiency up to 91.6%

• boiler class 5 according to EN 303-5

• Energy efficiency class A+

• Easy cleaning from the front.

Areas of application

Suitable for:

• Single-family homes with low to medium heating requirements

• Renovations with limited installation space

Not suitable for:

• Buildings with very high heating requirements

• Operation with fuels other than wood pellets

Technical specifications (excerpt)

• Nominal heat output: 3–10 kW

• Efficiency: 91.6%

• Pellet hopper: 65 l

• Flue pipe connection: Ø 130 mm

• Dimensions (H×W×D): 1221 × 594 × 1150 mm

• Weight: 287 kg

• Connection: 230 V/50 Hz

Scope of delivery

• Atmos PX10 pellet boiler

• ATMOS A25 pellet burner

• Integrated pellet hopper

• Cleaning tool

• User manual

Conclusion

The Atmos PX10 is the ideal solution for compact pellet heating systems with high efficiency and low space requirements.
