LK 810 ThermoMat return increase

ThermoMat return temperature boost

Return temperature boost 60°C or 70°C including insulation and 3 x 1¼" ball valves.

The LK 810 ThermoMat 2.0 W is a return temperature booster for heating systems with solid fuel boilers and buffer storage tanks.

The Return flow increase It is used to generate a high return temperature to the boiler and optimal temperature stratification in the buffer storage tank.

This increases the efficiency of the heating system, prevents condensation and tar deposits, and extends the system's lifespan.

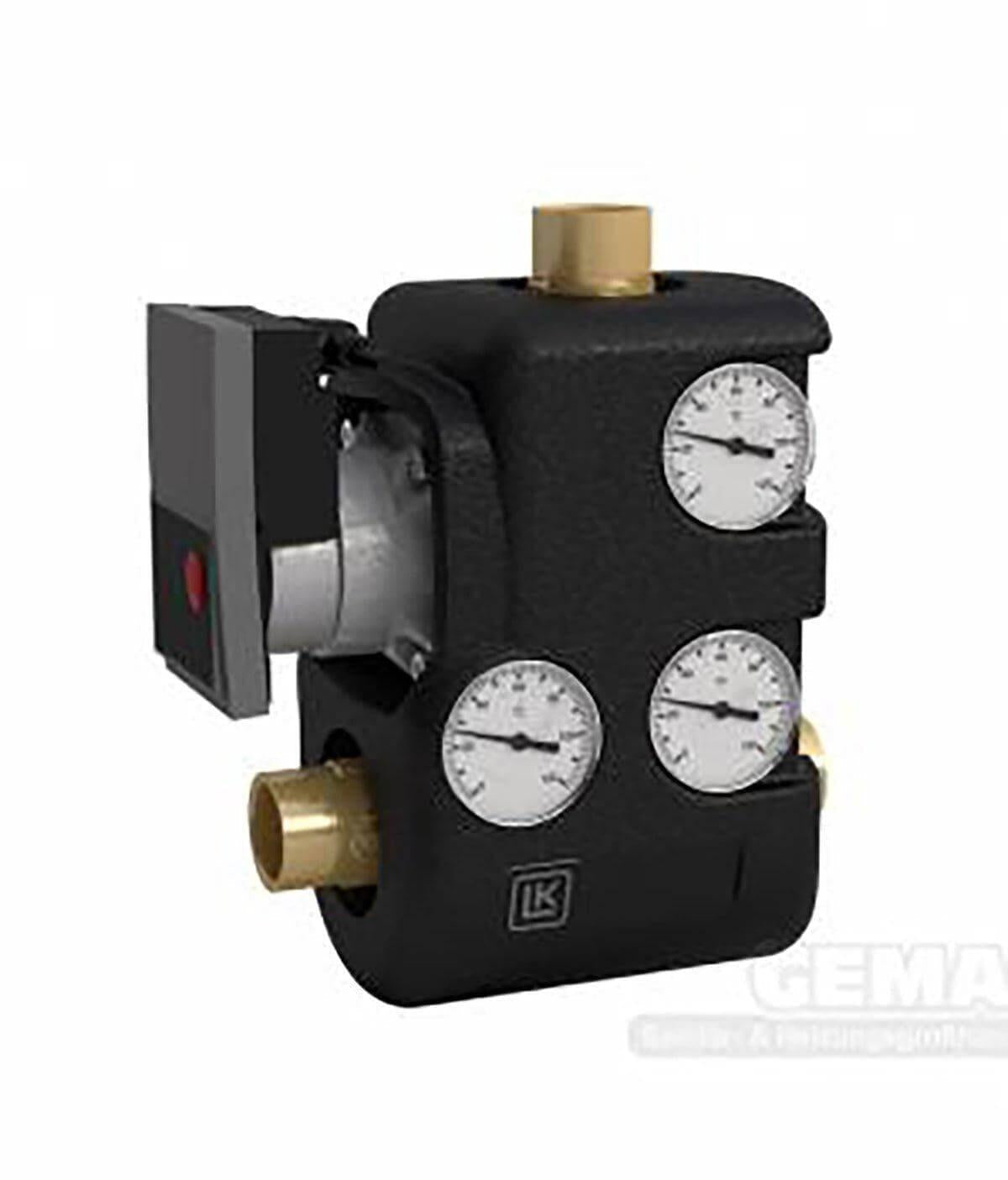

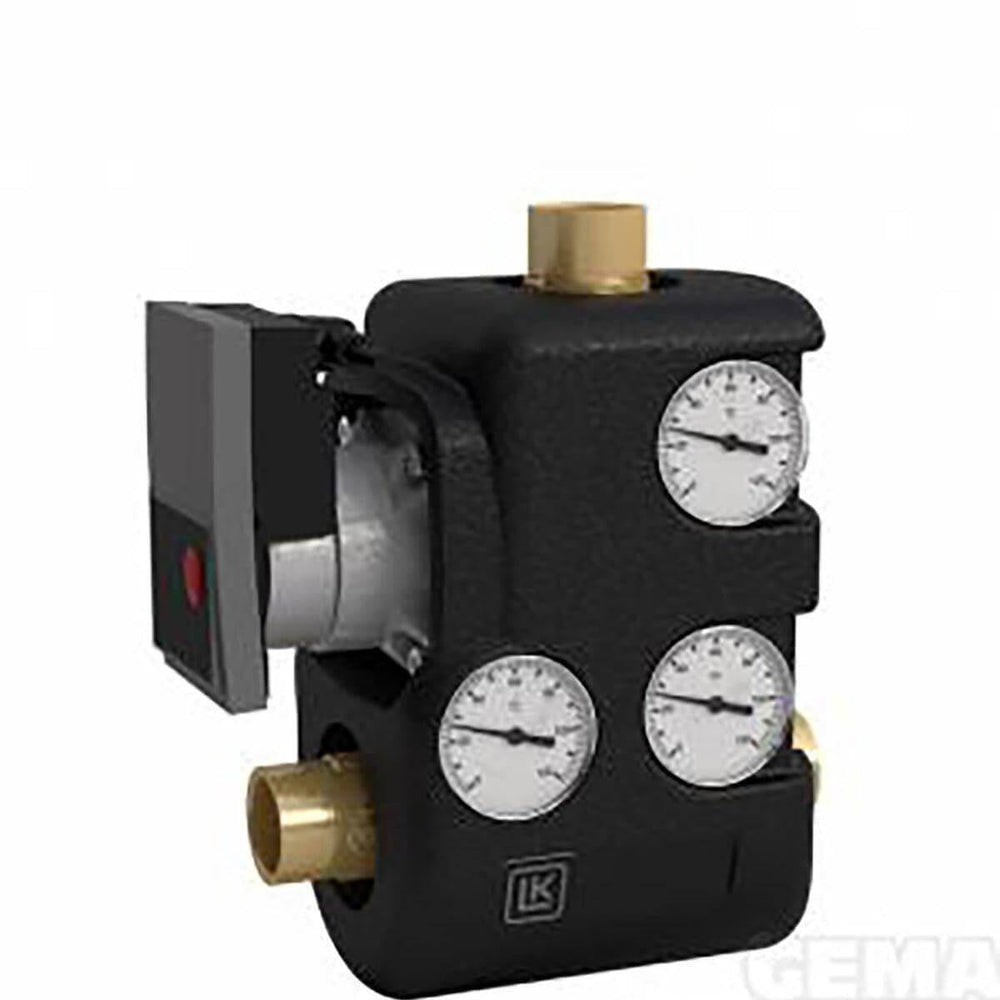

The LK 810 ThermoMat 2.0 W is a compact unit with an integrated high-efficiency pump and a thermal valve that controls two valve connections.

The Return flow increase It has three shut-off valves to facilitate installation and maintenance, three thermometers to allow easy monitoring of the charging process, and insulation to minimize heat loss.
LK 810 ThermoMat ThermoMat return temperature boost 2.0 W It is also available with a high-efficiency pump controlled by a PWM signal. For further information, please contact our sales department.
The LK 810 ThermoMat 2.0 W is installed in the return line between the solid fuel boiler and the buffer tank. It must be mounted vertically with the pump's drive shaft in a horizontal position. The return temperature boost is reversible and can be easily adjusted for installation to the right or left of the boiler.
The Return flow increase It is normally maintenance-free. The installation should be checked regularly. Thanks to the shut-off valves, all parts are replaceable without having to drain the system for maintenance.

*Technical changes reserved | Images may differ
