Anschlusspaket Kombispeicher: Montageset mit Ventilen 🔴, Manometern 📏 und Verbindungsteilen für Kombi-Pufferspeicher.
Anschlusspaket Kombispeicher: Montagezubehör mit Ventilen, Manometern🔧 und verschiedenen Anschlüssen für Pufferspeicher.
Anschlusspaket Kombispeicher: Montageset mit Ventilen 🔴, Manometern 📏 und Verbindungsteilen für Kombi-Pufferspeicher.
Anschlusspaket Kombispeicher: Montagezubehör mit Ventilen, Manometern🔧 und verschiedenen Anschlüssen für Pufferspeicher.

Connection package for combination storage for boilers and boiler accessories

Provider: Gema GmbH
inkl. MwSt. / zzgl. Versand
Offer price 298,00 €

Manufacturer Information

Name: Gema GmbH

Address: Anhaltinerring 17, 39429 güsten, Deutschland

Email: verkauf@gema-net.de

Website: https://gemashop.de

European Manufacturer: Yes

Add to the wish list Add to compare
 More payment options

Guaranteed safe checkout

Visa
Generic
Generic
Generic
Generic
Generic
Generic
Generic
Online Banking
Anschlusspaket Kombispeicher: Montageset mit Ventilen 🔴, Manometern 📏 und Verbindungsteilen für Kombi-Pufferspeicher.

Connection package for combination storage for boilers and boiler accessories

298,00 €

Connection package combi storage – The practical installation kit for your buffer storage

Product overview

The combination storage tank connection package offers you a universally applicable installation kit for the needs-based connection of combination buffer tanks, stratified combination tanks, and hygienic combination tanks. It enables the easy integration of steel storage tanks with integrated hot water heating and ensures optimal heat distribution.

This set makes connecting your buffer tank not only more convenient but also safer. The included connection insulation plugs for all 1.5-inch connections ensure that unused internal thread buffer connections are reliably sealed.

Advantages and application

A key advantage of the connection package is its universal applicability. It is designed for buffer tanks with up to eight 1½-inch female thread sockets for charging connections and two 1¼-inch male thread sockets for hot water connections. The system, with a hydraulic example, enables quick and uncomplicated installation, so installers can rely on a practical solution.

The temperature difference between heat dissipation with and without insulating plugs (approx. 70°C versus 18°C) shows how efficiently the package contributes to minimizing heat loss and making optimal use of energy.

Technical details and assembly

In addition to the connection insulation plugs for all 1.5-inch connections, the set also includes important components such as quick-acting air vents, boiler fill and drain valves, and universal ball valves. These components ensure smooth operation and easy maintenance of the heating system.

The package also includes an LK hot water/dish water mixer with scalding protection, which can be adjusted between 35 and 60 °C. This guarantees additional protection against scalding and ensures safe use of the hot water.

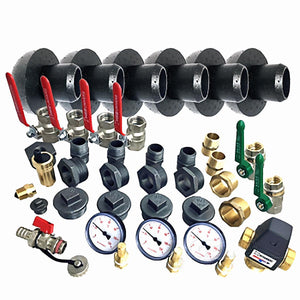

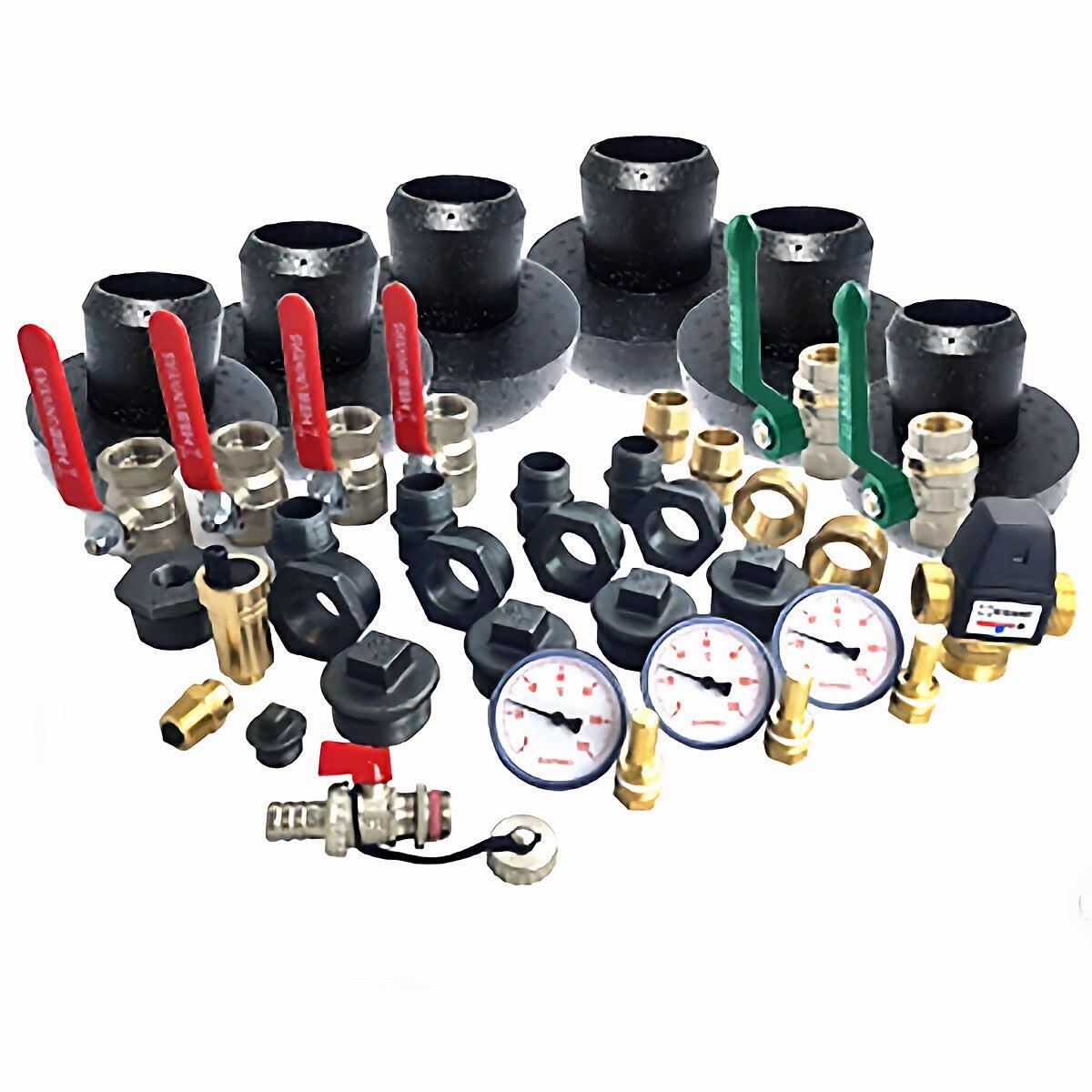

Scope of delivery

The connection package includes the following components:

EXSEL12 – Quick air vent with shut-off ½", KFEH12 – Boiler filling and draining valve made of brass (½"), 4x KGH1 – Universal ball valve 1" with lever in red, 2x EXBIZ – bimetal dial thermometer with immersion sleeve (½", 0-120° Ø63mm) and HM1 – domestic water mixer HydroMix 1".

The set is complemented by DGVTLME1MS – brass straight-way valve with rising spindle and drain (1", DVGW tested), various gunmetal double nipples and red sockets, reducers, plugs, and buffer connection insulation for all 1½" connections. A detailed installation and hydraulic plan completes the package.

Detailed delivery information

  • 1x EXSEL12 - Quick vent with shut-off ½"
  • 1x KFEH12 - Boiler filling and draining tap ½" brass
  • 4x KGH1 - Universal ball valve 1" with red lever
  • 2x EXBIZ - Bimetal dial thermometer with immersion sleeve ½" 0-120° Ø63mm
  • 1x HM1 - domestic water mixer HydroMix 1"
  • 2x DGVTLME1MS - Brass straight-way valve rising stem with drain 1" DVGW tested
  • 2x DN1RG - gunmetal double nipple 1"
  • 2x RM1141RG - gunmetal red socket 1¼"x1"
  • 5x DN2801S - double nipple black 1"
  • 4x RST2411121S - reducer black 1½"x1"
  • 1x RST24111412S - Reducer black 1¼"x½"
  • 6x ST290112S - Plugs black 1½"
  • 2x ST29012S - Plug black ½"
  • 1x T1301121S - T-piece reduced black 1"x½"x1"
  • 6x PSIS - buffer connection insulation for all 1½" connections of your buffer tank
  • 1x assembly/hydraulic plan
Allgemeine Spezifikationen
Gewicht
4.0 kg
