Solar package flat collectors AMX2.51 12.65 m² for flat roofs

Solar package flat plate collectors AMX 2.51 – Sustainable energy for your home

The AMX 2.51 flat-plate solar thermal system combines innovative technology with environmentally friendly energy generation. With a total area of ​​12.65 m², it enables optimal use of solar energy and offers versatile applications for private and commercial projects. Thanks to its flexibility, it is perfectly suited for flat and pitched roofs and helps you to sustainably reduce heating costs.

Take advantage of government subsidies.

One of the major advantages of the AMX 2.51 solar package is the availability of government subsidies, such as the Federal Funding Program for Efficient Buildings (BEG EM). These subsidies can save you up to 30% of the investment costs. If you implement additional energy efficiency measures, the subsidy can even increase to up to 70%. This significantly reduces your financial outlay, allowing you to benefit twice over – through subsidies and long-term energy savings.

To ensure you can make the most of all available funding opportunities, we recommend gathering comprehensive information beforehand. Our practical funding guide explains the necessary steps for submitting an application and how to maximize your benefits from the available programs.

Efficient technology for maximum performance

The heart of the AMX 2.51 flat-plate collectors is the modern absorber technology with copper tubes, which ensures excellent heat transfer. By combining them with a hygienic storage tank or a domestic hot water storage tank, the generated energy is efficiently stored and available as needed. The integrated differential temperature controller ensures that operation automatically adapts to current conditions, achieving optimal efficiency.

Another advantage of the technology is its reliability in low-light conditions. Even on cloudy days or during the winter months, the AMX 2.51 solar package continuously delivers clean energy – an ideal solution for generating environmentally friendly heat all year round.

Durability thanks to high-quality materials

AMX flat-plate collectors impress with their robust construction and high-quality materials. The one-piece aluminum frame ensures excellent stability and resistance to weathering. Furthermore, the navy blue and black coating not only protects against corrosion but also gives the collectors a modern and elegant look that blends harmoniously into any building design.

In addition to its long lifespan, the system is also extremely low-maintenance, allowing you to save costs and effort in the long run. This makes AMX collectors a profitable long-term investment.

High performance in all weather conditions

Another strength of the solar package is its high efficiency under all weather conditions. The special thermal insulation minimizes heat loss and enables consistently high performance – even in extreme temperatures, cloud cover, or cold weather. Thanks to these robust properties, the flat-plate collectors are suitable for both warm and cold climates and reliably supply energy all year round.

Easy installation for maximum flexibility

The AMX 2.51 solar package is designed for particularly user-friendly installation. Specifically developed for flat roofs, the system comes with a sturdy aluminum mounting frame that guarantees easy and secure installation. If desired, the collectors can also be easily installed on pitched roofs, offering you additional flexibility in your planning.

The package includes detailed assembly instructions that simplify installation for both professional installers and experienced DIYers. Whether for new builds or modernization projects, installation is quick and easy.

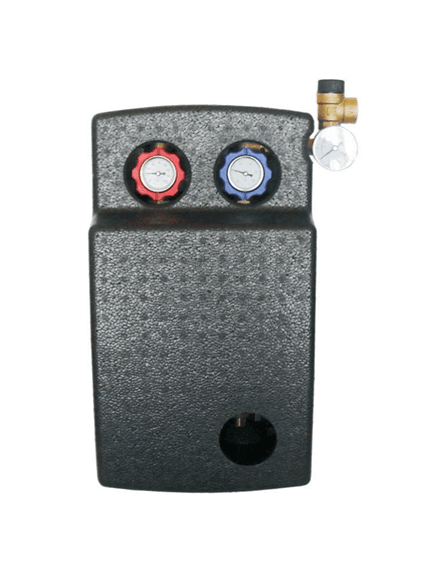

GPS PWM Hydra Solar Station – Performance meets efficiency

The GPS PWM Hydra solar station is a key component of the solar package. It serves as a control unit for the efficient operation of the heat transfer medium and ensures optimal circulation. Modern PWM technology minimizes energy losses, guaranteeing consistently energy-efficient operation. Furthermore, the integrated safety valve and venting system ensure convenient and safe use.

The compact design of the solar station facilitates maintenance and operation and can easily withstand high temperatures of up to 110 °C and pressures of up to 6 bar.

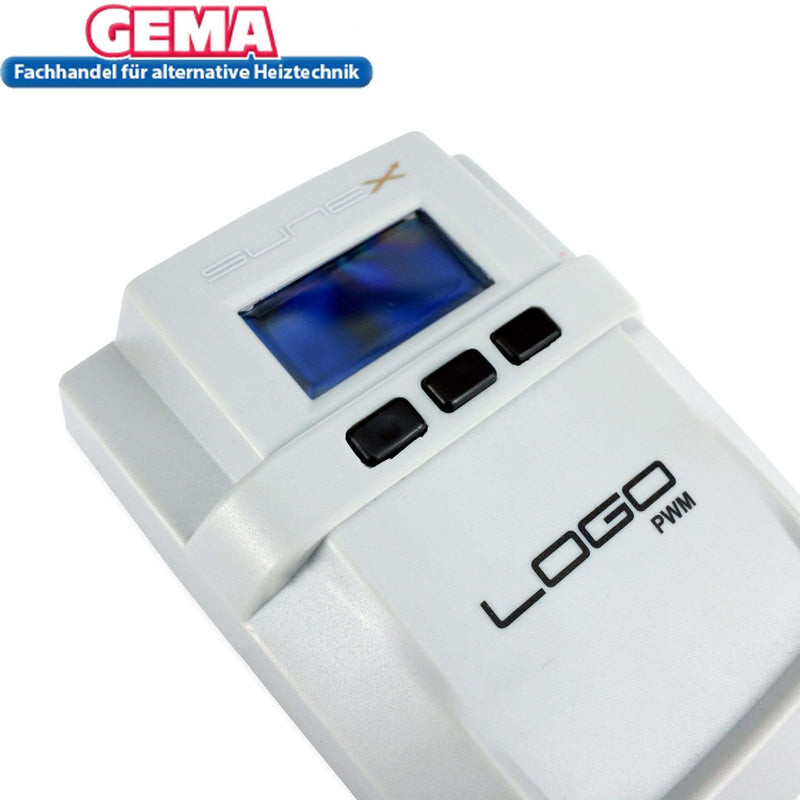

LOGO PWM solar charge controller – Intelligent control solution

The included LOGO PWM solar controller supports the overall operation of the solar system through its intelligent control. Its user-friendly LCD display allows you to keep track of all important parameters at all times. Simultaneously, the solar controller dynamically adjusts the pump speed using PWM technology to ensure the most efficient energy use.

An additional backup system saves your settings, even in the event of a power outage. This ensures you benefit from a reliable and modern control system that optimally supports the operation of your solar thermal system.

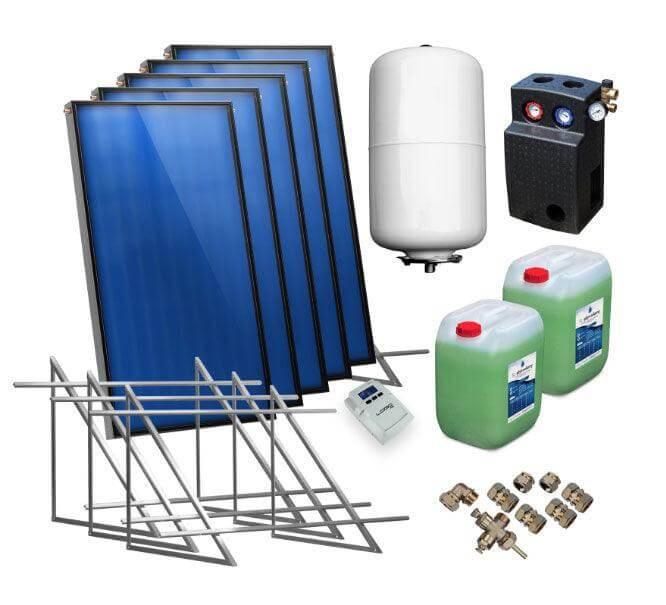

Scope of delivery – Everything in one package

The AMX 2.51 solar package contains all the necessary components to quickly and easily put your solar thermal system into operation. The most important components are listed here:

• 5x AMX 2.51 flat plate collectors with a total area of ​​12.65 m²

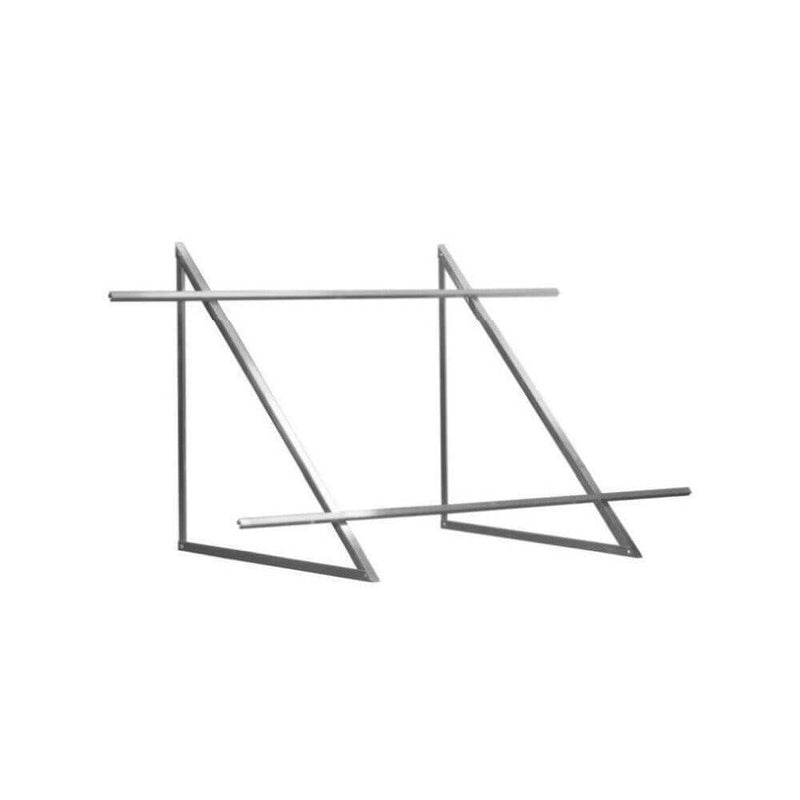

• Stable aluminum mounting system for flat roofs

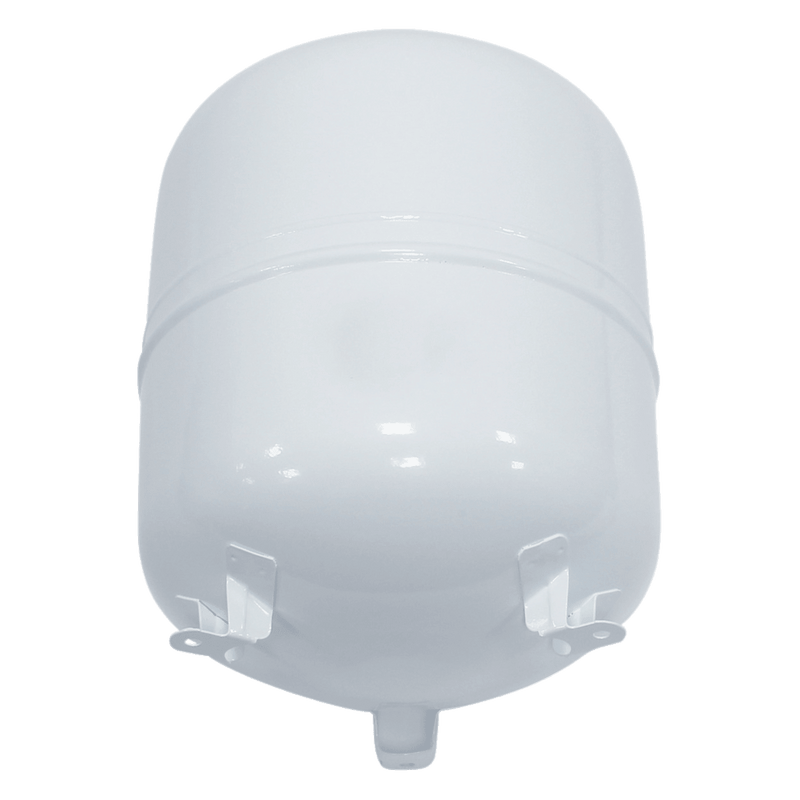

• Solar expansion vessel with a volume of 35 liters

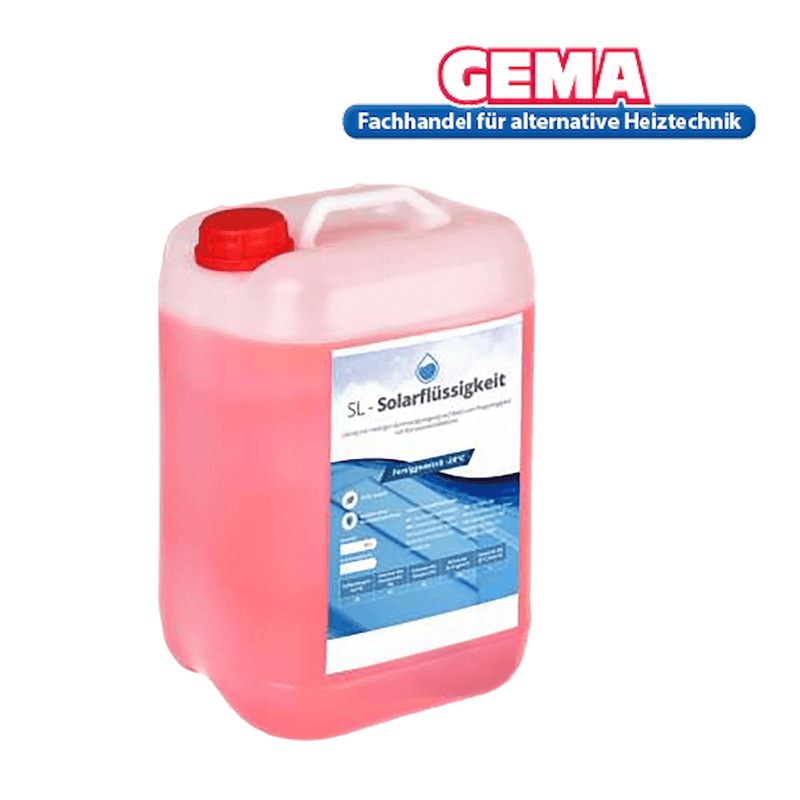

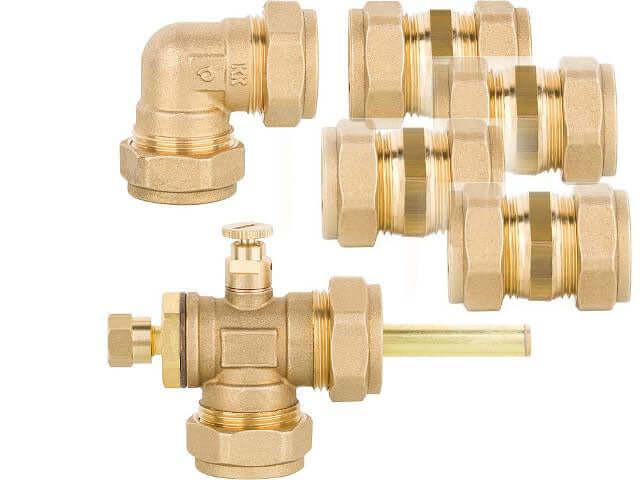

• High-quality solar fluid and collector connection sets
• Two-way solar station GPS PWM Hydra
• LOGO PWM solar charge controller with LCD display
• Detailed operating and assembly instructions

Conclusion: Sustainability and efficiency in one complete package

The AM X2.51 flat-plate solar collector package offers an innovative and sustainable solution for generating heat from solar energy. Thanks to its high-performance technology, high-quality materials, and flexible installation options, it meets the highest standards and guarantees reliable energy production year-round.

Take advantage of government subsidies, reduce your energy costs, and actively contribute to the energy transition. Choose the AMX 2.51 solar package – a future-proof investment in cost-efficient and environmentally friendly technology.

You will also need:

• Solar line DN16 or DN20 in a suitable length
• optional Roof penetration

Download

• Product data sheet Collectors
