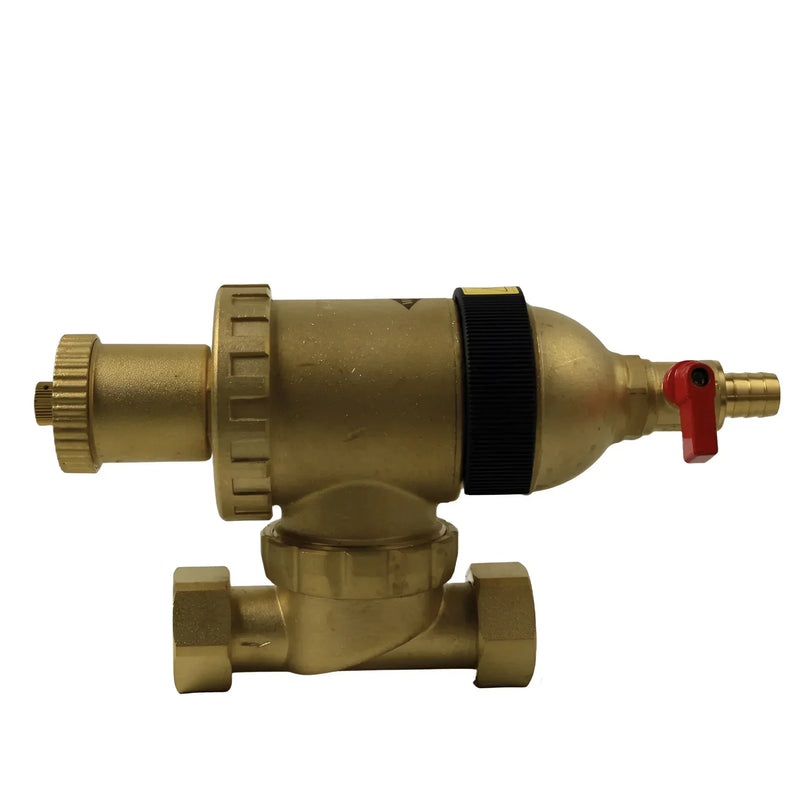

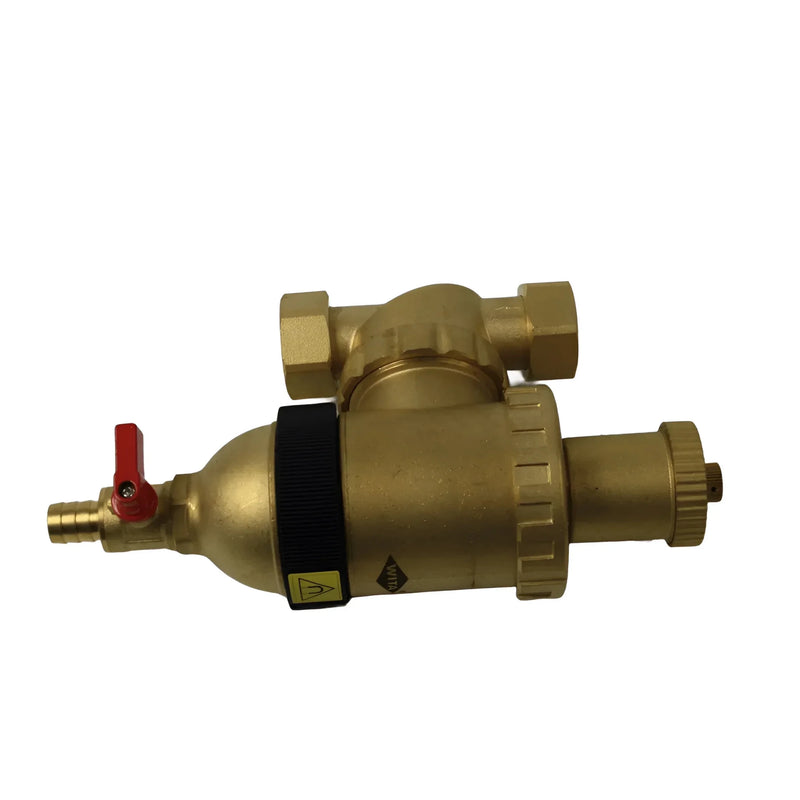

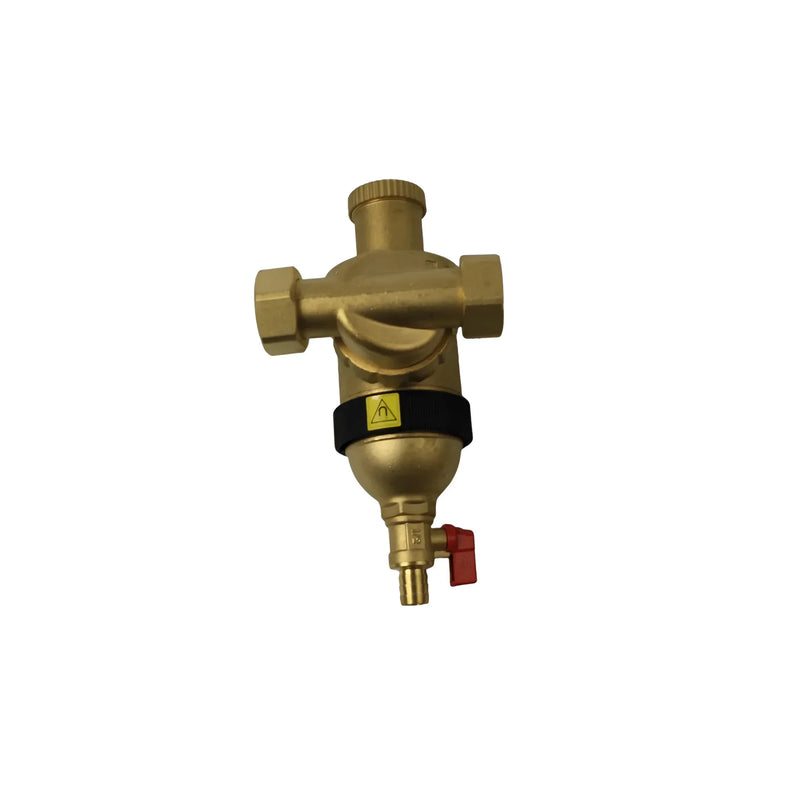

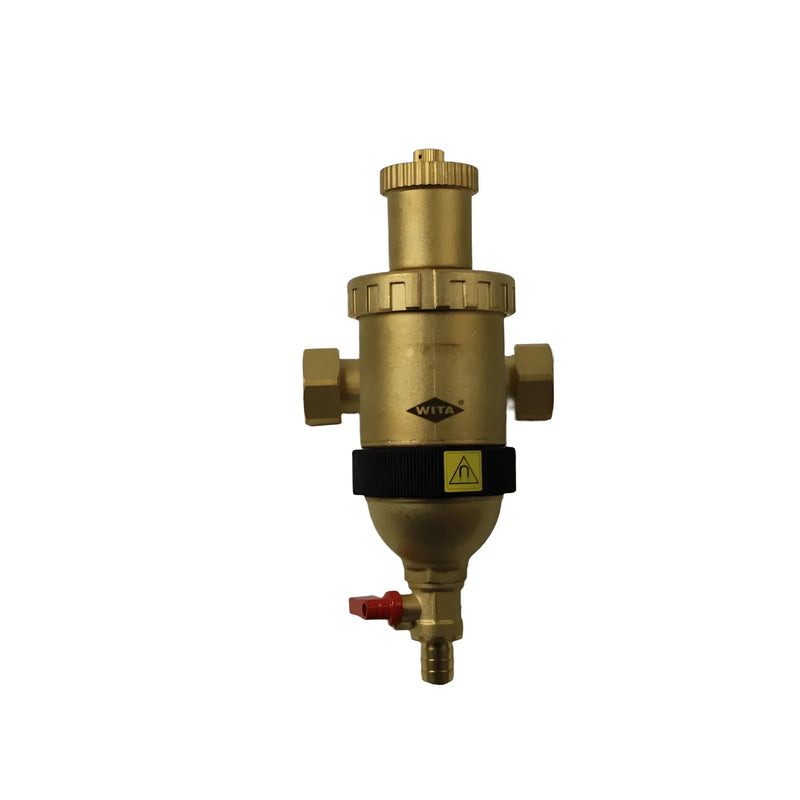

Dirt separator DN 25, 1'' IT heating magnetite separator

Sludge, magnetite, and microbubble separators 1"

With our new WITA Trap Magnetic and Sludge separators (for sludge, magnetite, and microbubbles) ensure reliable operation and protection of your heating circulation pumps/high-efficiency pumps and valves. They are used to remove sludge, impurities, and magnetic particles from heating, cooling, and solar systems.

Ferrous impurities (magnetite), as well as non-magnetic impurities and sludge from the heating water (according to VDI 2035), which form in both old and new systems, are filtered out. A further advantage of the WITA Trap magnetic and sludge separator is that the accumulated contaminants can be quickly and powerfully flushed out by simply removing the magnetic clip (even while the system is running) when opening the drain valve.

Advantages:

WITA Trap Sludge separator microbubble separator DN 25 1" IG

• Efficient removal of dirt particles (>5 micrometers)
• Protects the pump and other sensitive system components.
• Simple, quick and safe emptying of the
• Sludge separator during operation
• Protects the heating system from sludge buildup and;
• Wear and tear, and therefore disruptions or even standstill
• Protect pumps and fittings

• Installation possible vertically and horizontally (rotatable 360°)

• Suitable for heating, cooling and solar systems

Technical data

• Kvs value: 4.1 m³/h
• Material: Brass
• Nominal diameter: DN 25
• Connection thread: Rp 1"
• Maximum operating pressure: 1 MPa/10 bar
• Operating temperature: 0-90°C
• Size of dirt particles: >5 µm
• Medium used: Heating water according to VDI 2035
