PV complete package Huawei 15KW pitched roof installation Trina 435 Vertex S

Complete PV package Huawei 15KW pitched roof mounting Trina 435 Vertex S+ Black Frame Module

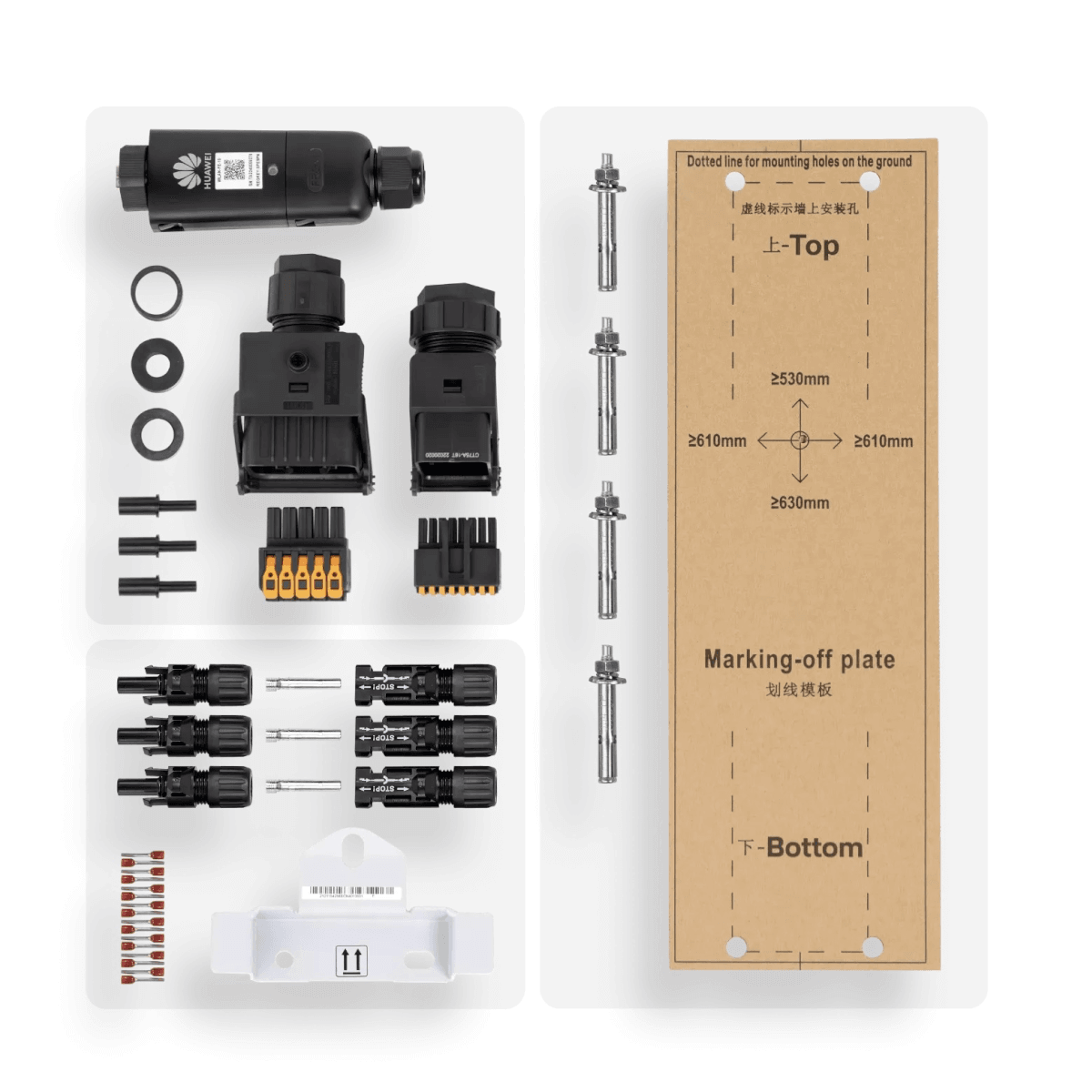

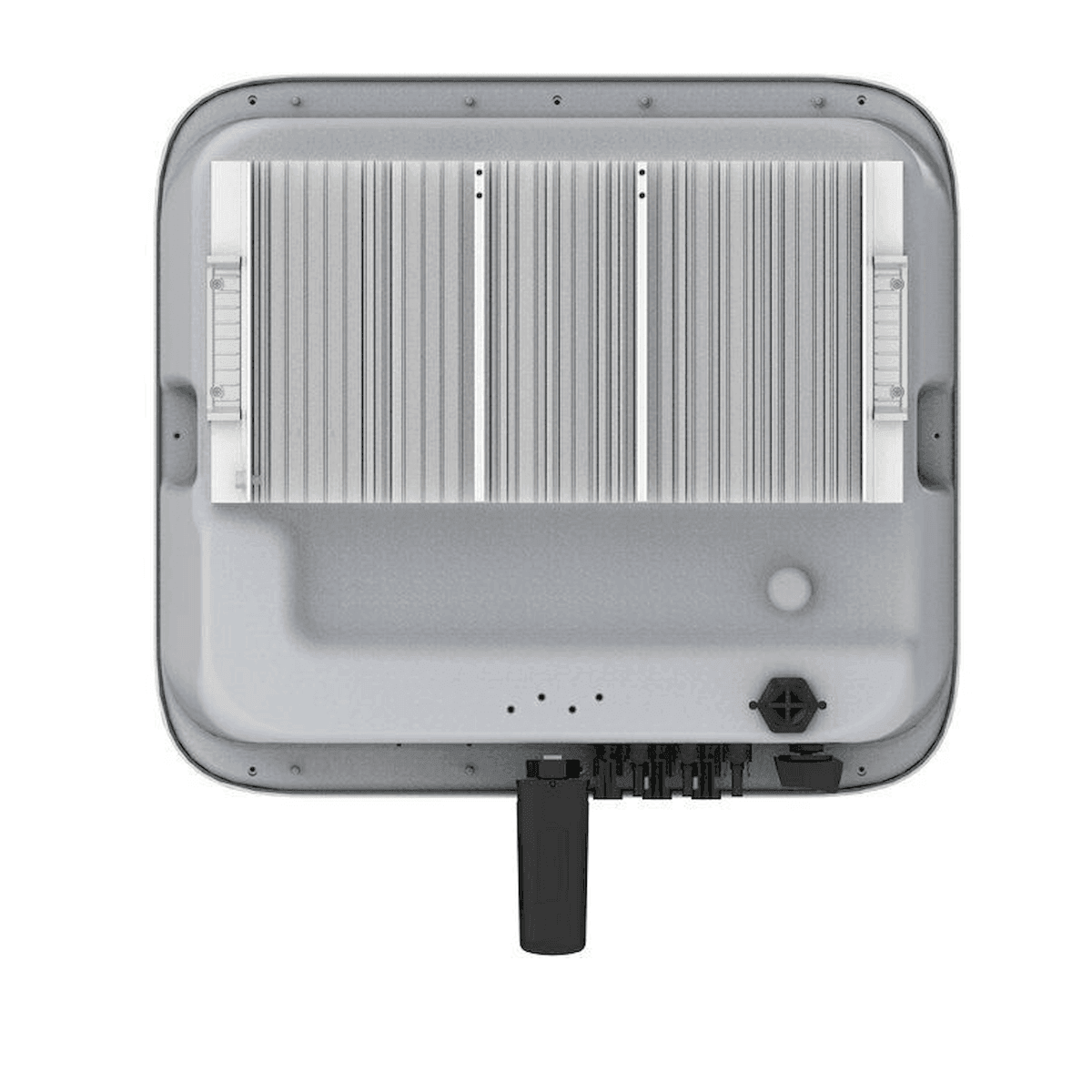

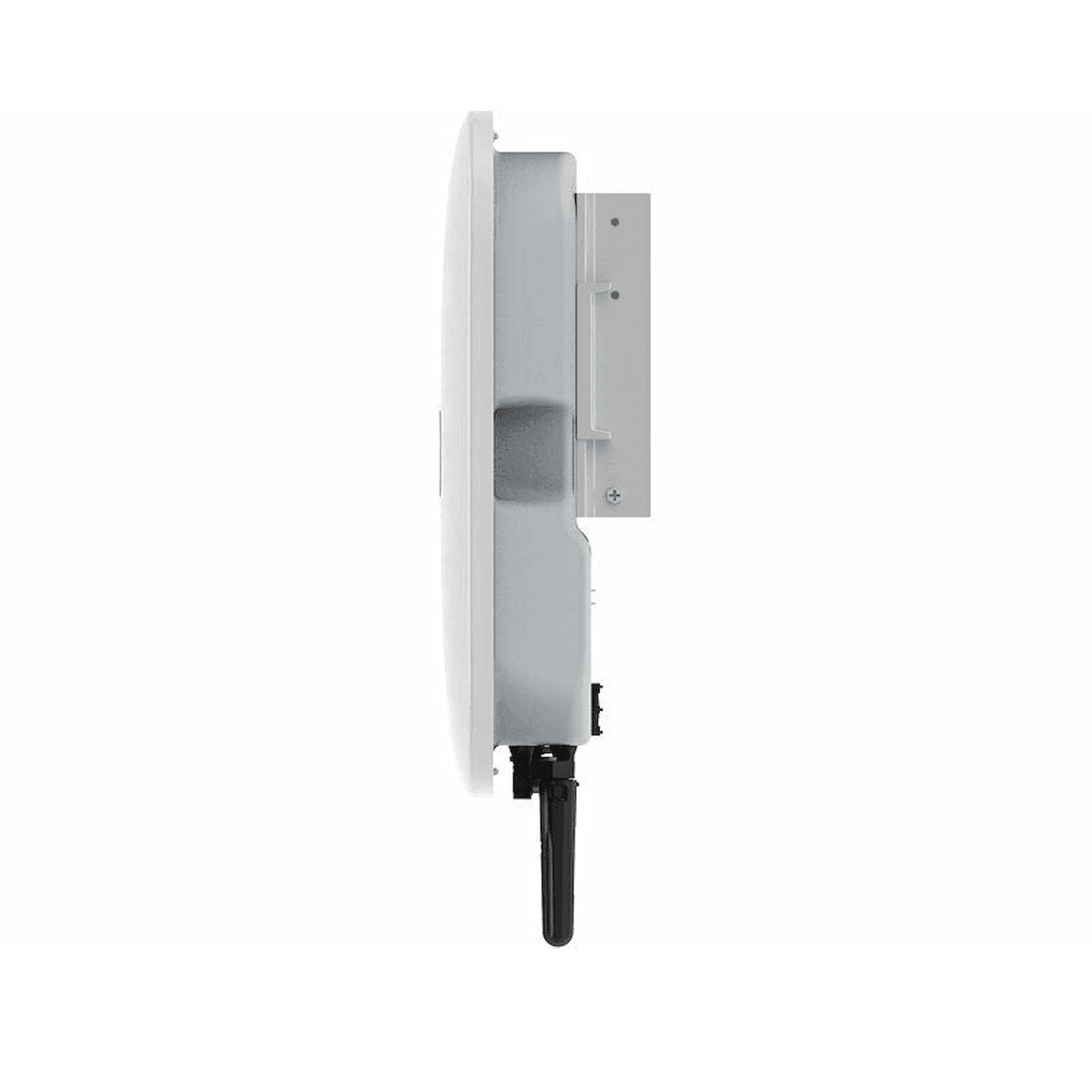

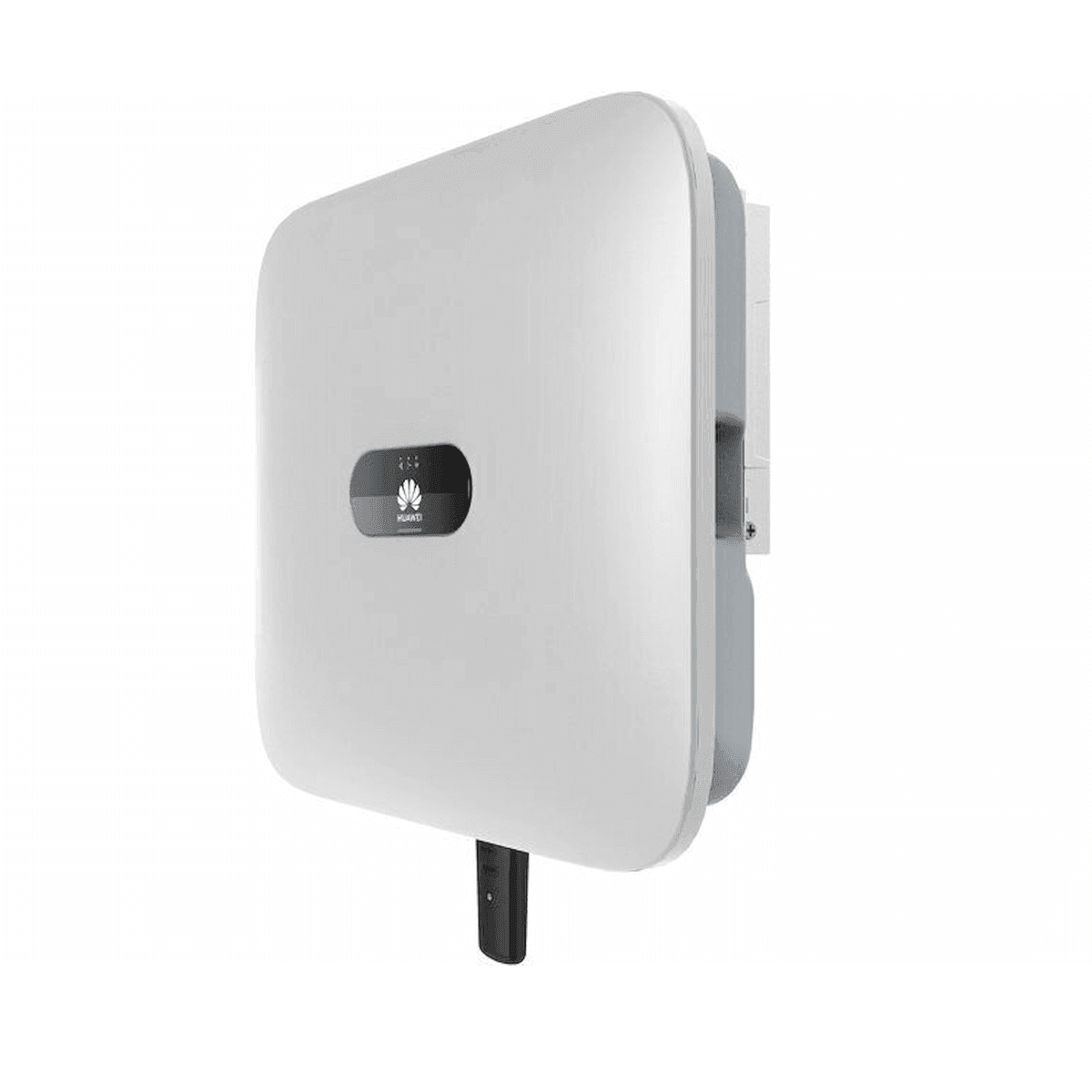

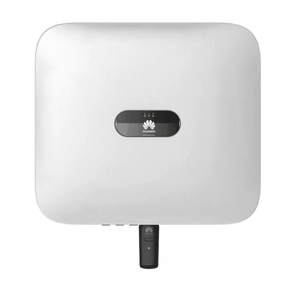

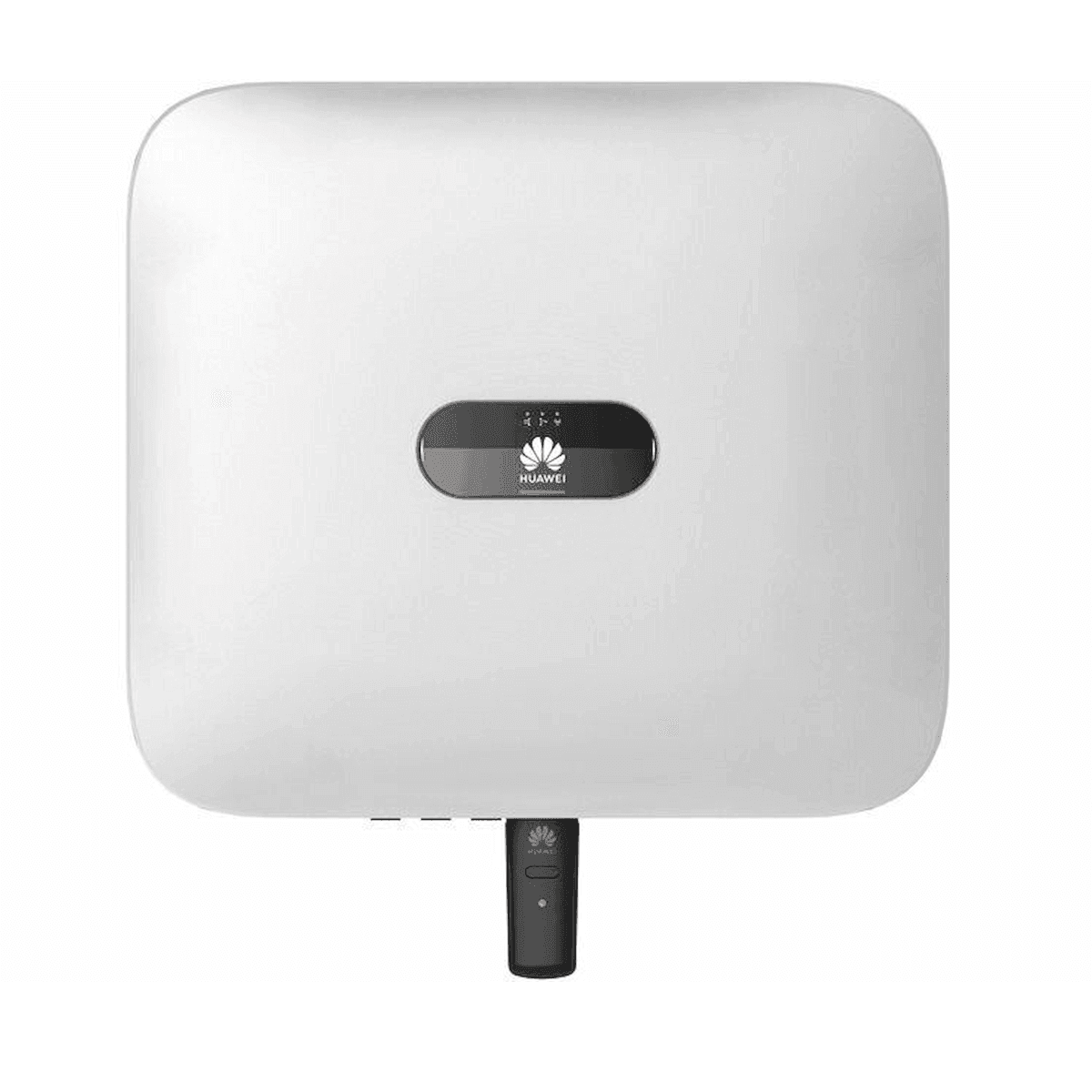

Huawei SUN2000-8KTL-M1 Hybrid Inverter - Complete Package Huawei + Trina 435 Vertex S

• One of the lightest and most compact hybrid devices on the market
• Very high European efficiency
• AI-supported protection against arcing and the localization of fault arcs for faster repair
• Very durable, as only parts with a long lifespan were used.
• Setup entirely via app
• Prepared for additional battery charging via AC power sources
• Remote maintenance and automatic updates
• User-friendly device for beginners in the field of photovoltaics
• Warranty: 10 years

Technical specifications: Huawei 15kW complete PV package

• Phase 3
• MPP tracker: 2
• Recommended maximum PV output 12000 Wp
• Open circuit voltage: 41.10 V
• Voltage range: 190-850 V
• Communication: RS485, WLAN
• High efficiency of up to 98.6%
• IP65 Water Resistant
• Fanless operation through natural convection
• LED display
• Web Interface
• P max. AC 9000W
• Dimensions 525x470x146.5mm
• Weight: 17kg

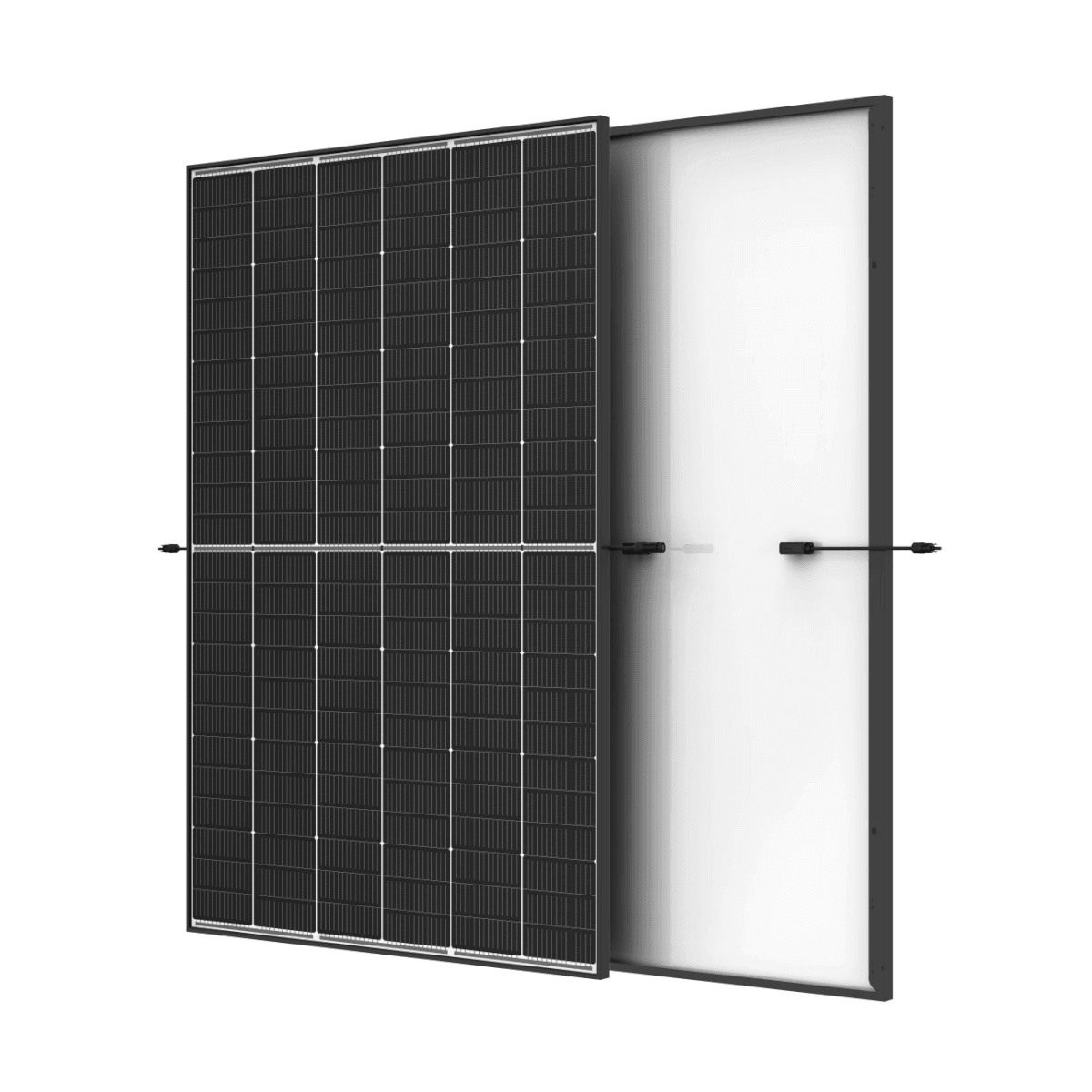

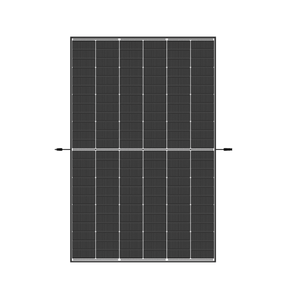

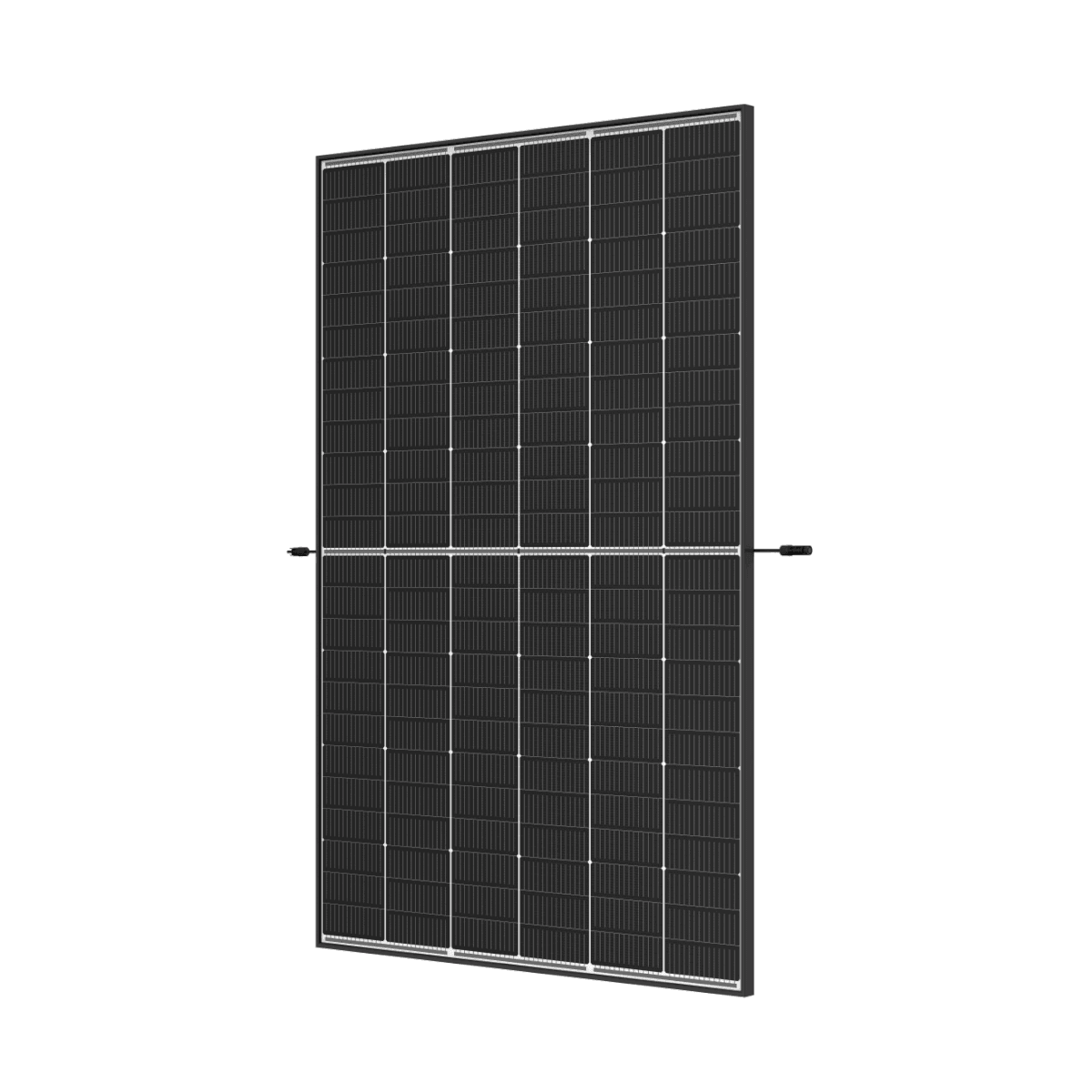

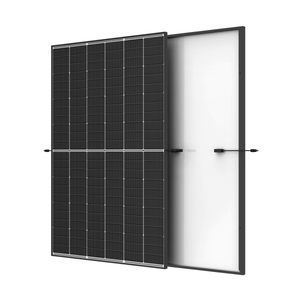

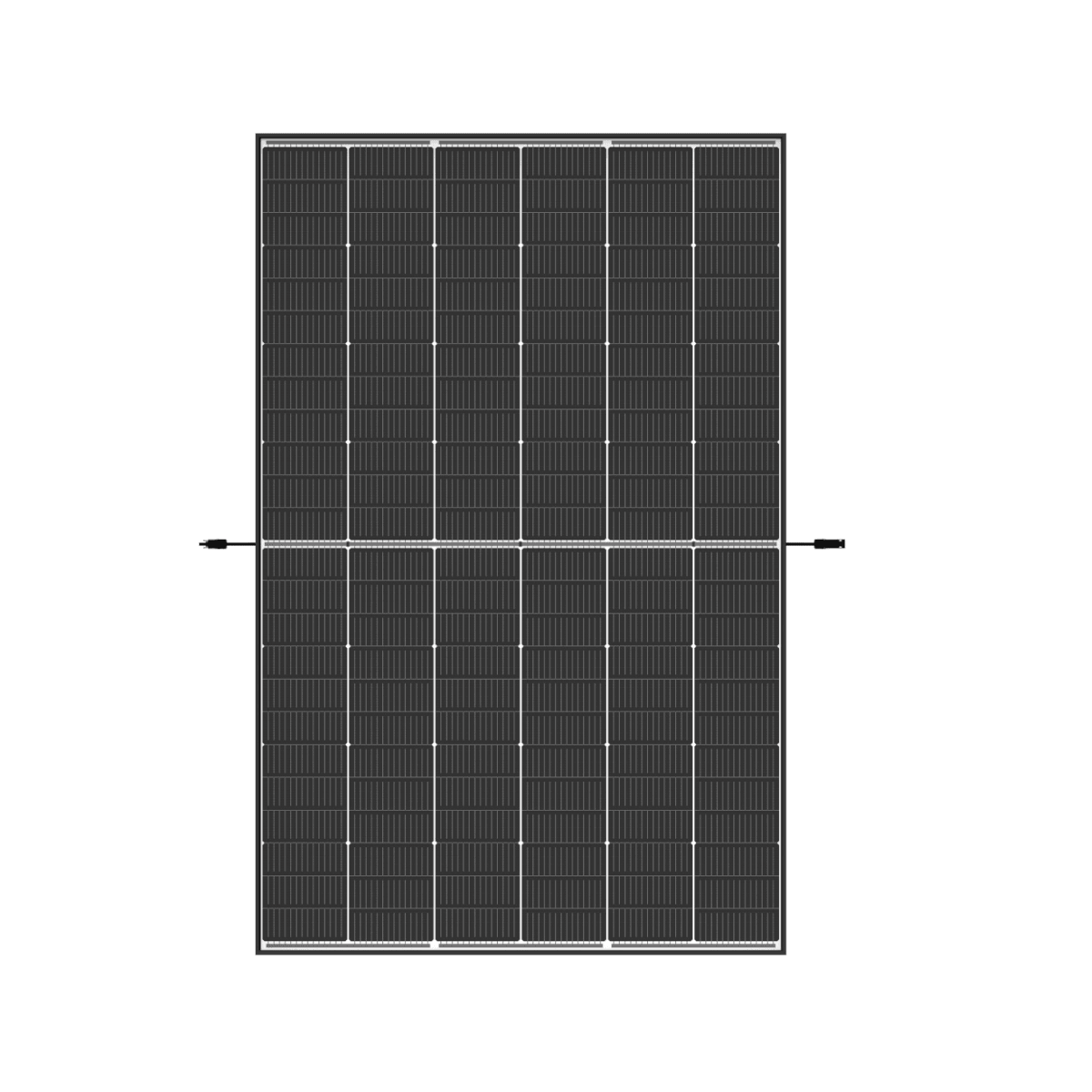

Photovoltaic module Trina Vertex S+ 435Wp Black Frame Glass-Glass TSM-NEG9R.28

• Up to 435 W peak power, 21.8% module efficiency with high-density cell interconnect technology.
• Multi-busbar technology for increased absorption, lower series resistance, improved current dissipation and increased reliability.
• Lower installation costs with increased performance and efficiency.
• Excellent resistance to fire and harsh environmental conditions.
• 5,400 Pa snow load and 4,000 Pa wind load (test loads).
• High compatibility with available inverters, optimizers and mounting systems.
• Easy handling thanks to its perfect size and light weight. Optimized transport costs.
• Flexible installation solutions for system use.

Technical data

• Solar cells: Monocrystalline
• Cell arrangement: 144 cells
• Module dimensions: 1,762×1,134×30 mm
• Weight: 21.8 kg
• Glass: 1.6 mm, highly transparent, anti-reflective coated, heat-tempered glass
• Back: 1.6 mm, heat-tempered glass
• Encapsulation material: EVA/POE
• Frame: 30 mm anodized aluminum alloy, black
• Junction box: IP 68
• Cable: Photovoltaic cable: 4.0 mm² Landscape format: 1,100/1,100 mm Portrait format: 280/350 mm*
• Connector: TS4/MC4 EVO2*

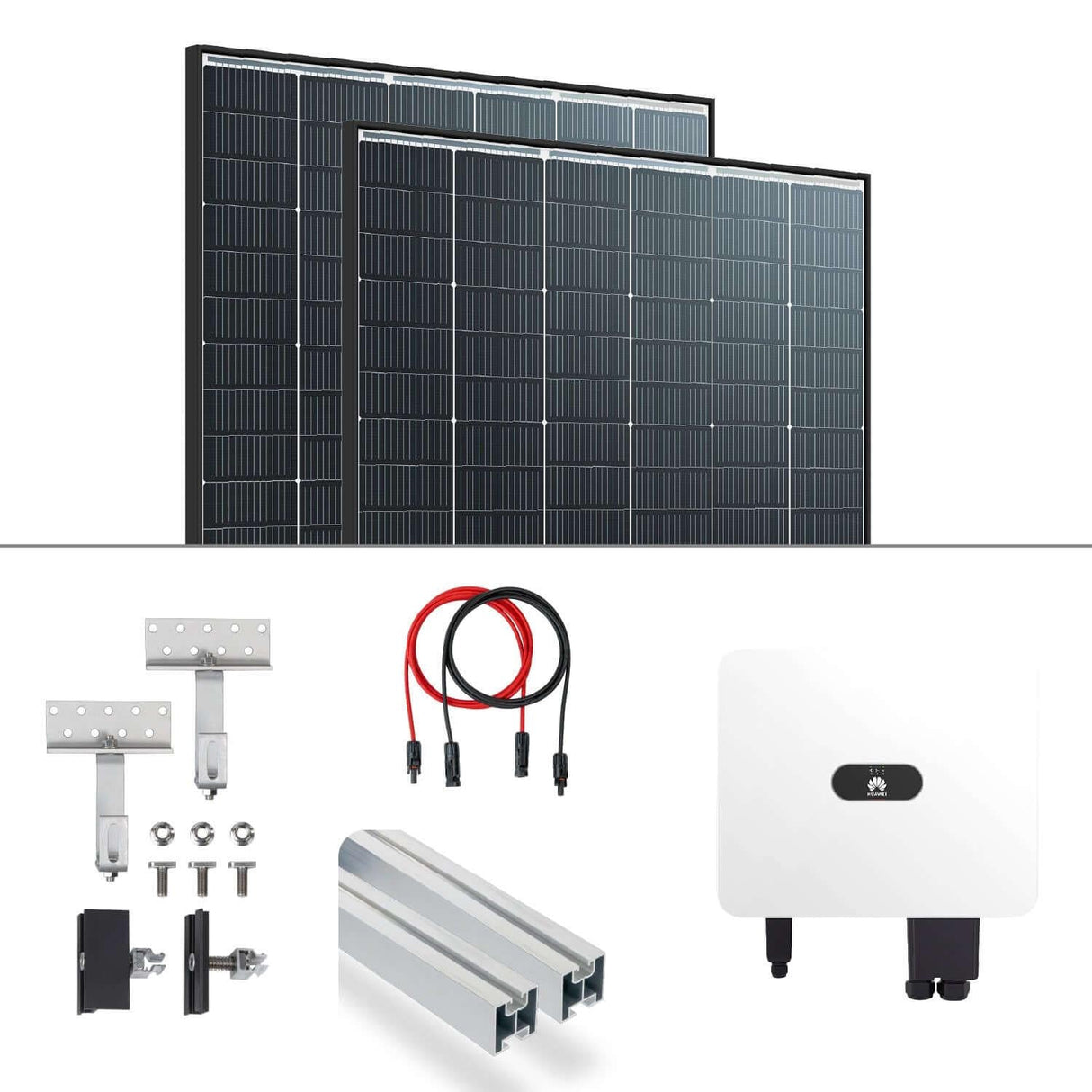

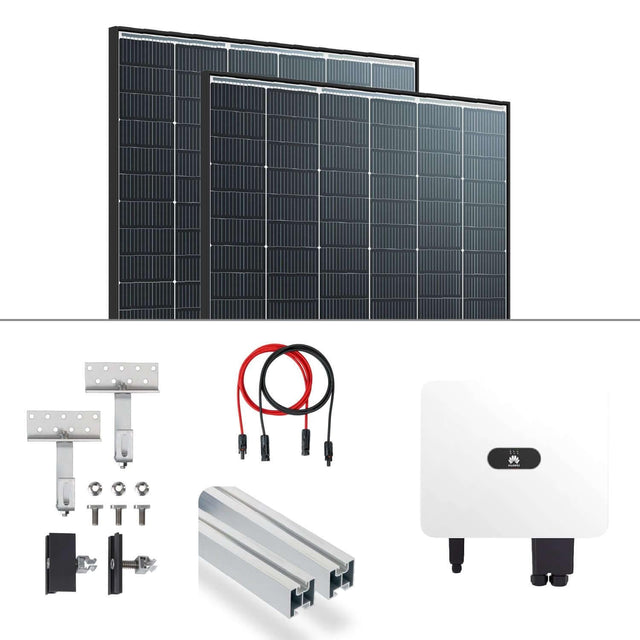

Scope of delivery PV complete package:

• 1x Huawei SUN2000-KTL-M1 Hybrid Inverter - 10KTL-M1

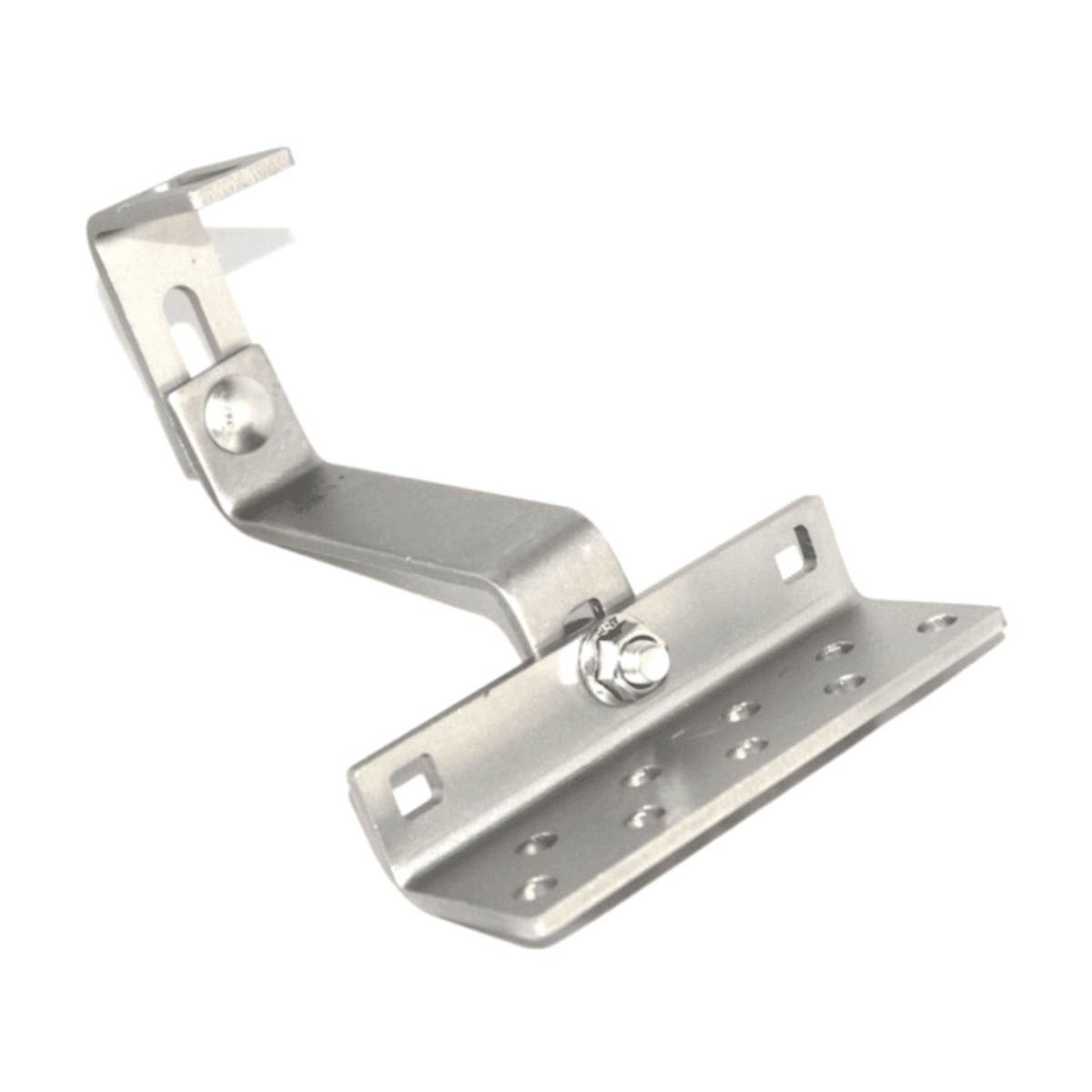

• 68x Stainless steel 1.4016 roof hooks for solar - photovoltaic

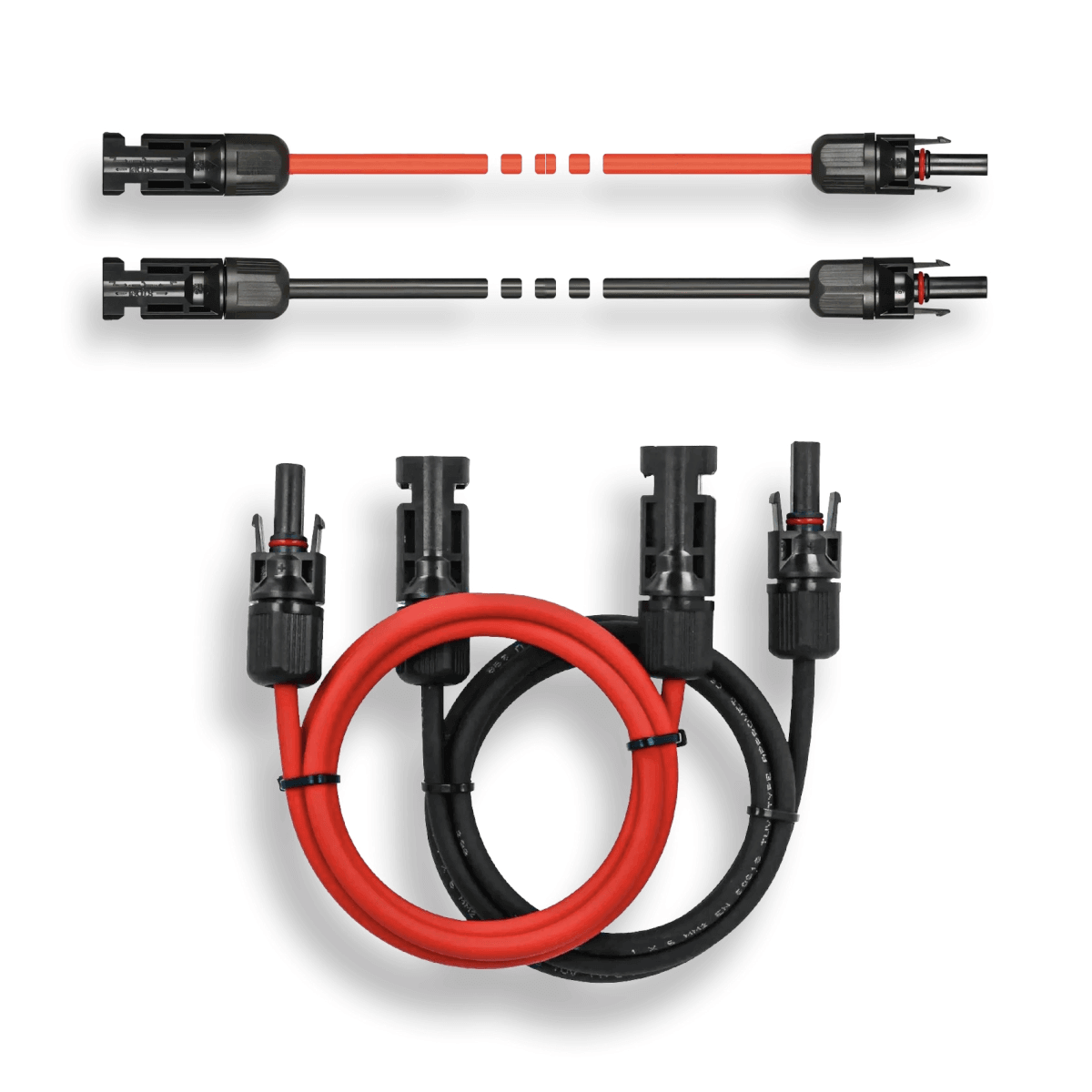

• 20x Solar cables 6² red, sold by the meter
• 20x Solar cables 6² black, sold by the meter

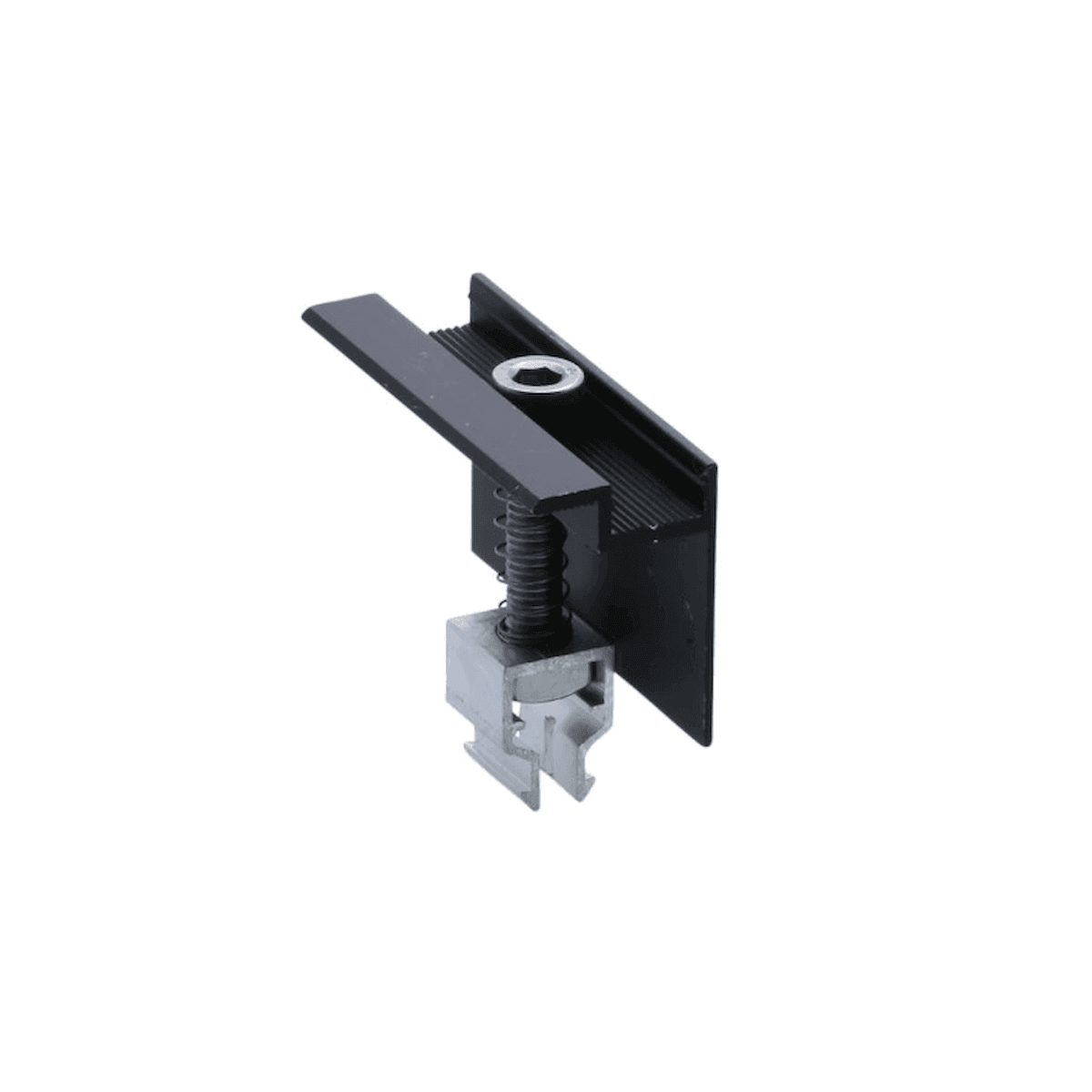

• 12x Module end clamp click ALU black - 30mm

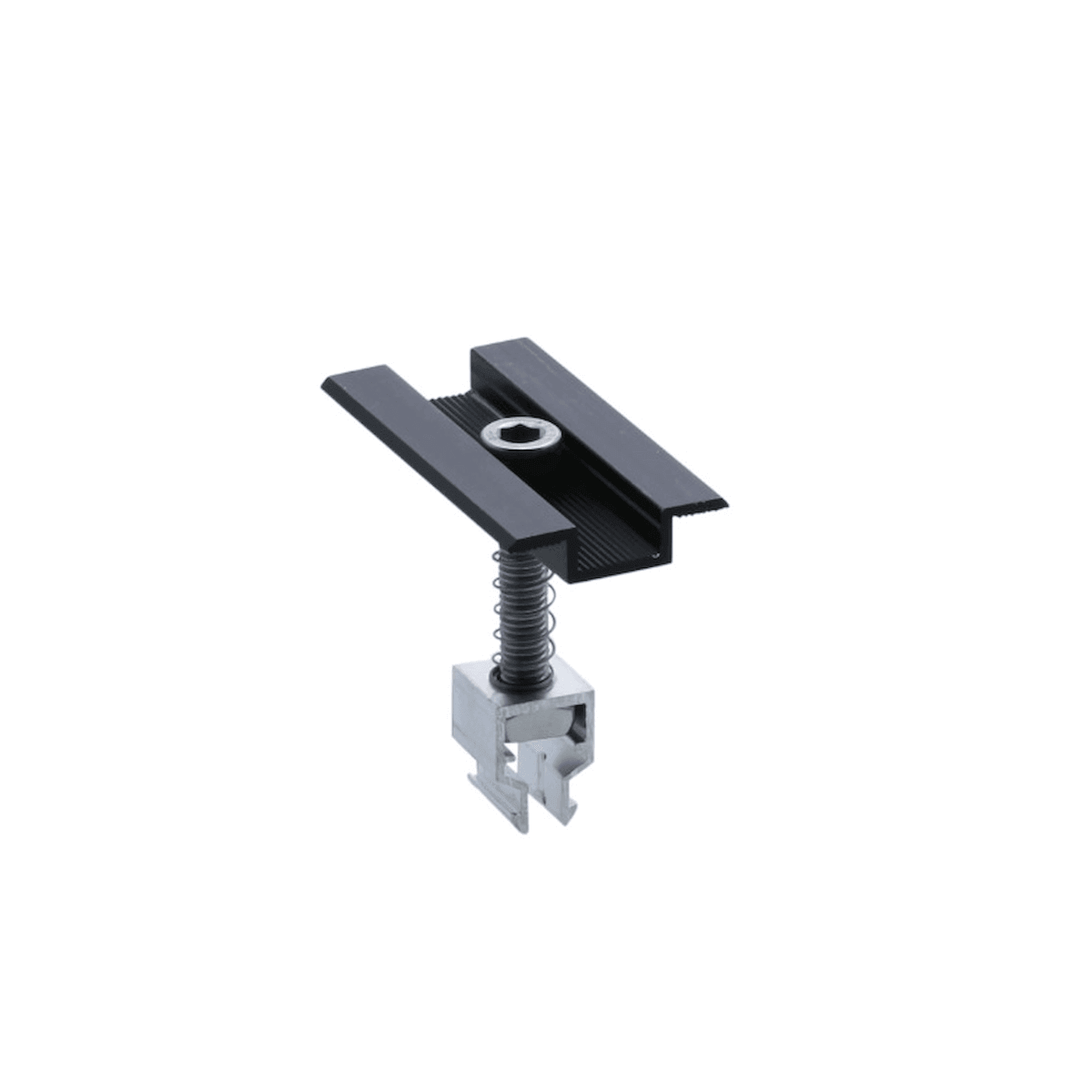

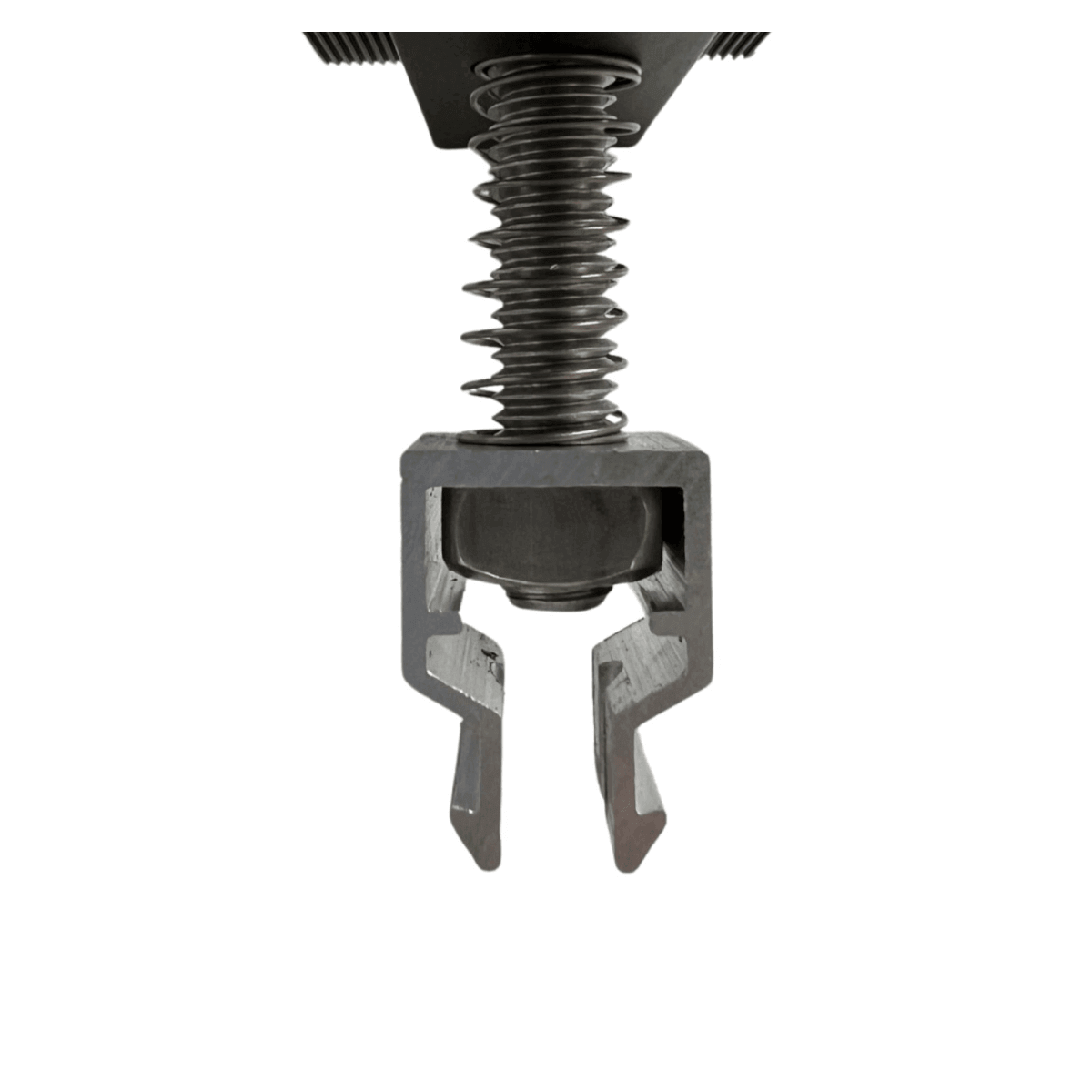

• 57x module center clamp click ALU black 28-35mm
• 2x MC4 connectors PV-KST4/6II-UR
• 2x MC4 socket PV-KBT4/6II-UR

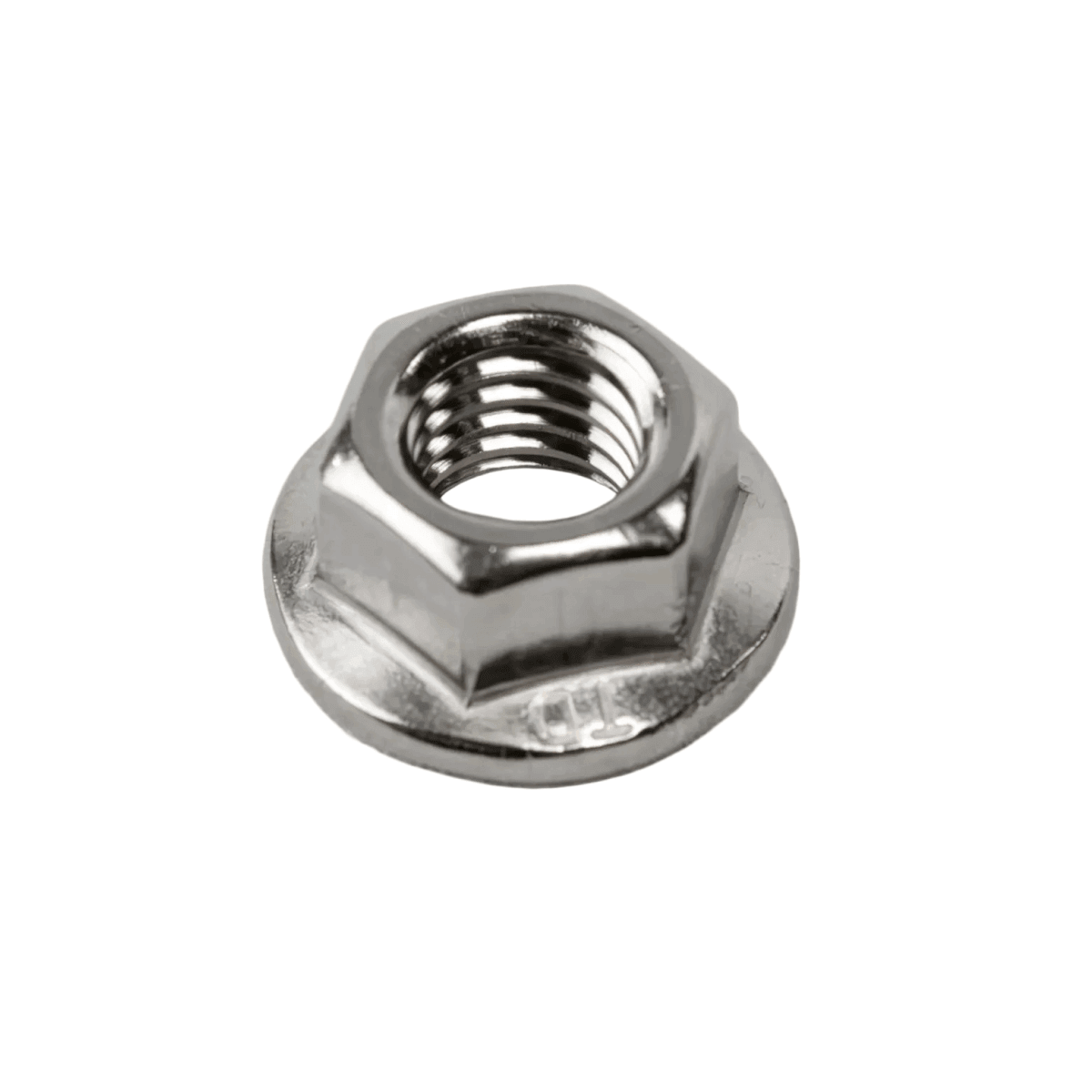

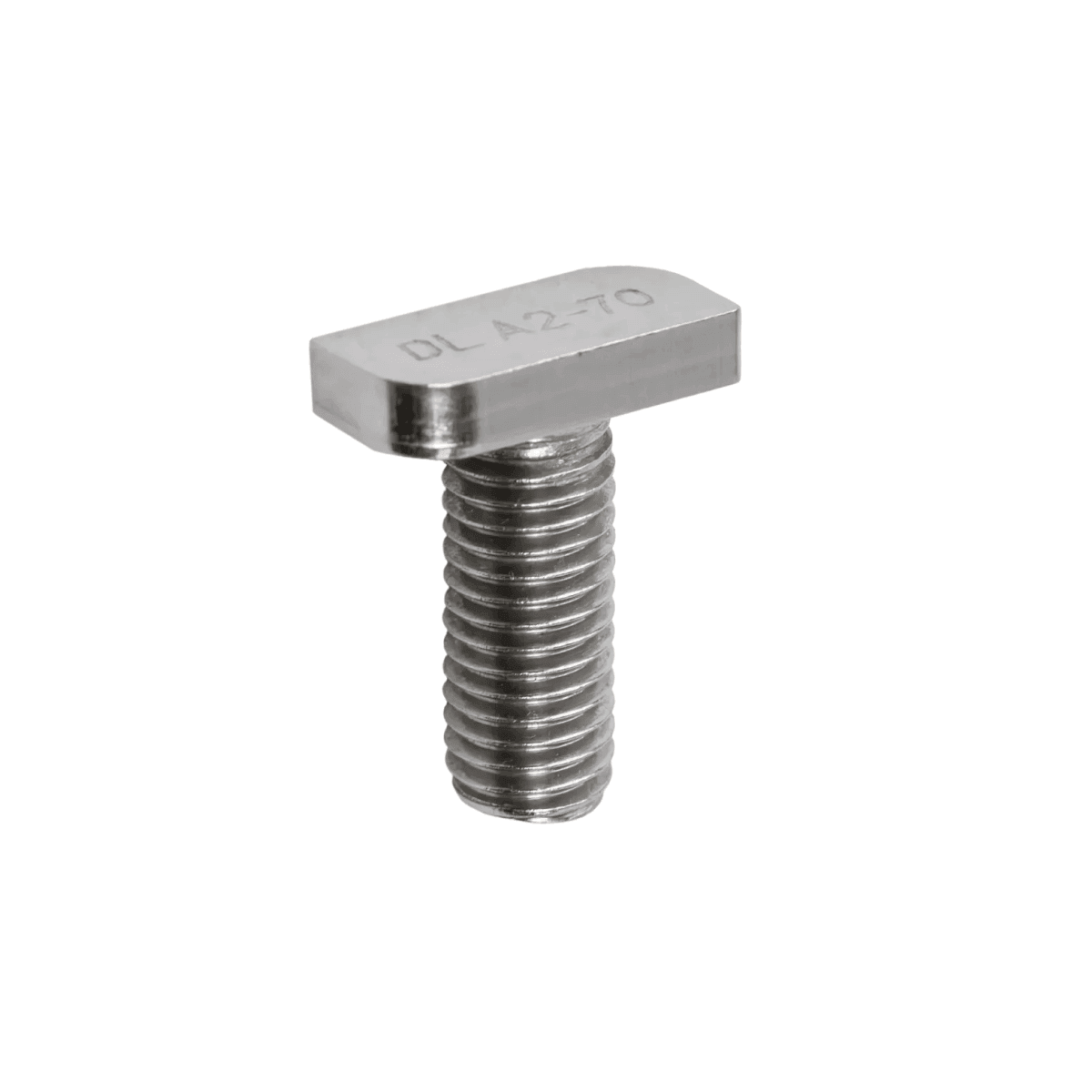

• 68x Hammerhead screw with serrated lock nut M10x25mm stainless steel
• 32x photovoltaic module Trina Vertex S+ 435Wp Black Frame glass-glass TSM-NEG9R.28

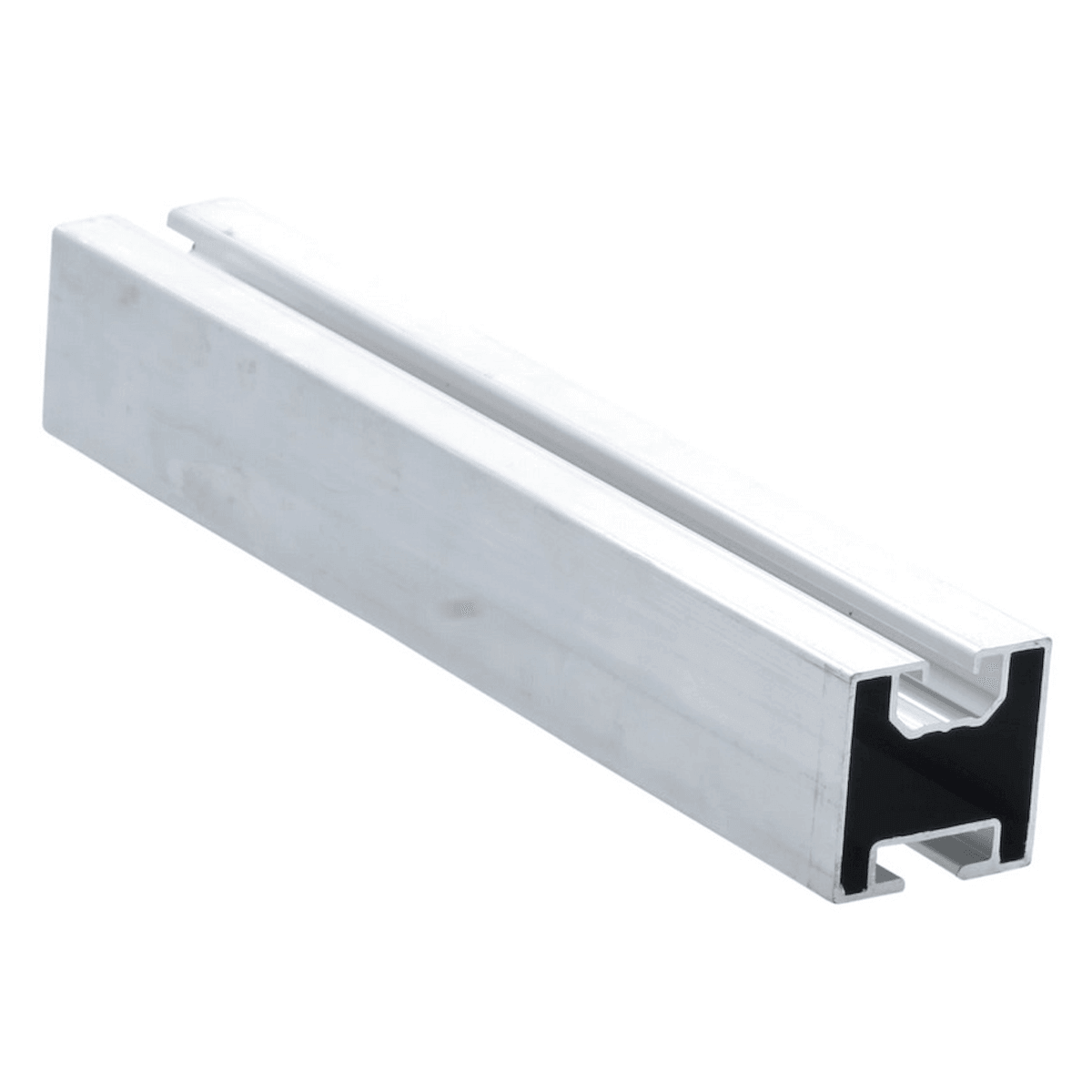

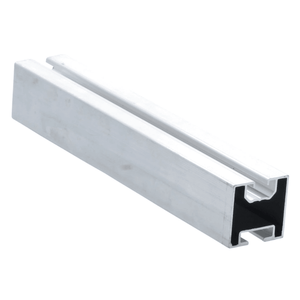

• 38x SILVER aluminum rail for solar systems - 2.4 meters

This set includes mounting material for 4 rows with 8 modules per row.

*Due to storage, the item may have some soiling. This can be easily removed and excludes any grounds for a complaint or price reduction.
