Pellet boiler Atmos PX20 (eligible)

Pellet boiler ATMOS PX20 (eligible)

ATMOS PELLET BOILER – PX series

Note about funding!

The Atmos PX series is eligible for funding from 15 kW without a particle separator. The 10 kW boiler only with particle separator.

For this reason, we only offer eligible versions online without a particle separator. (Exception is the 10 kW PX, which includes the particle separator to ensure delivery)

If you prefer the variant with a particle separator, please contact us and we will make you an individual offer.

Request a quote

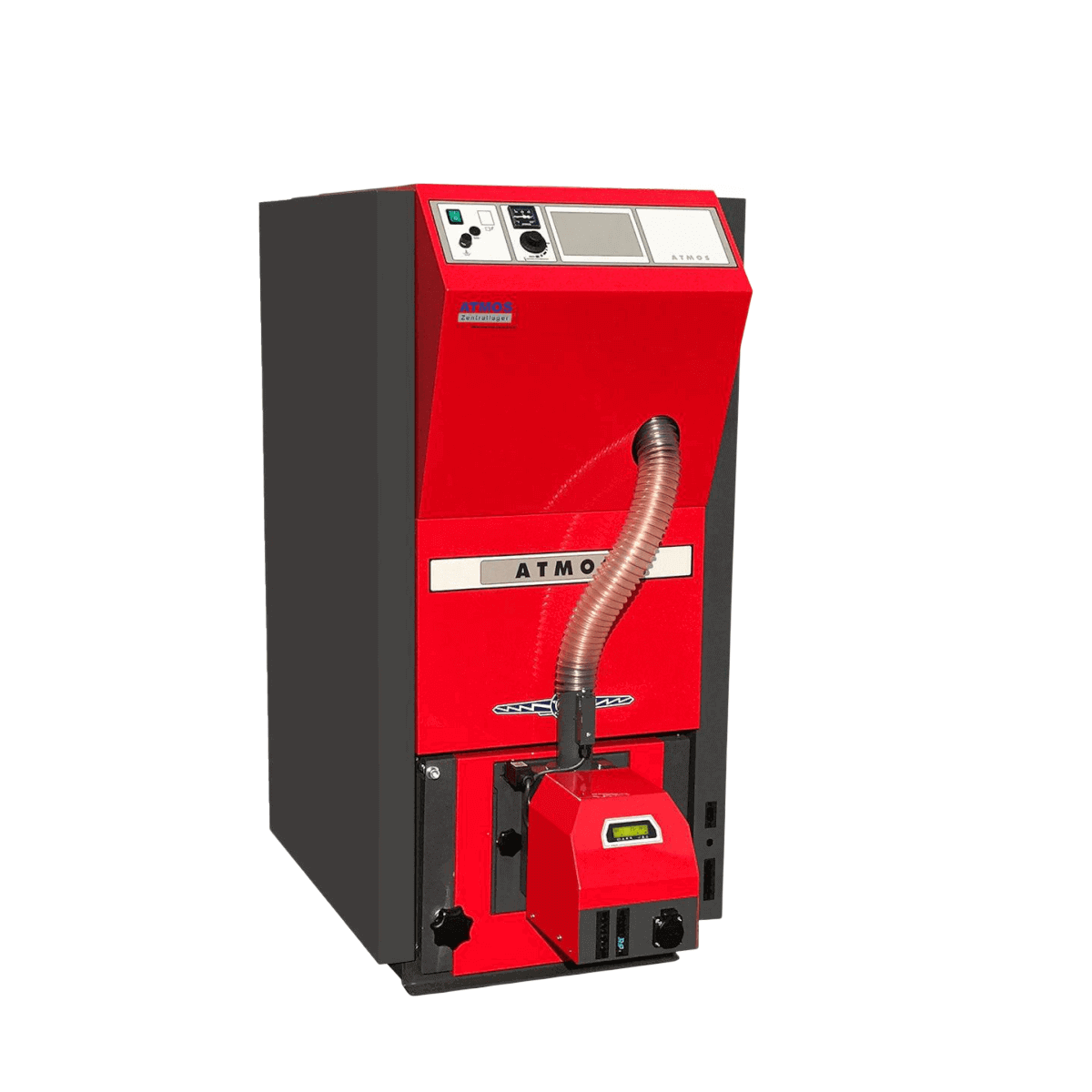

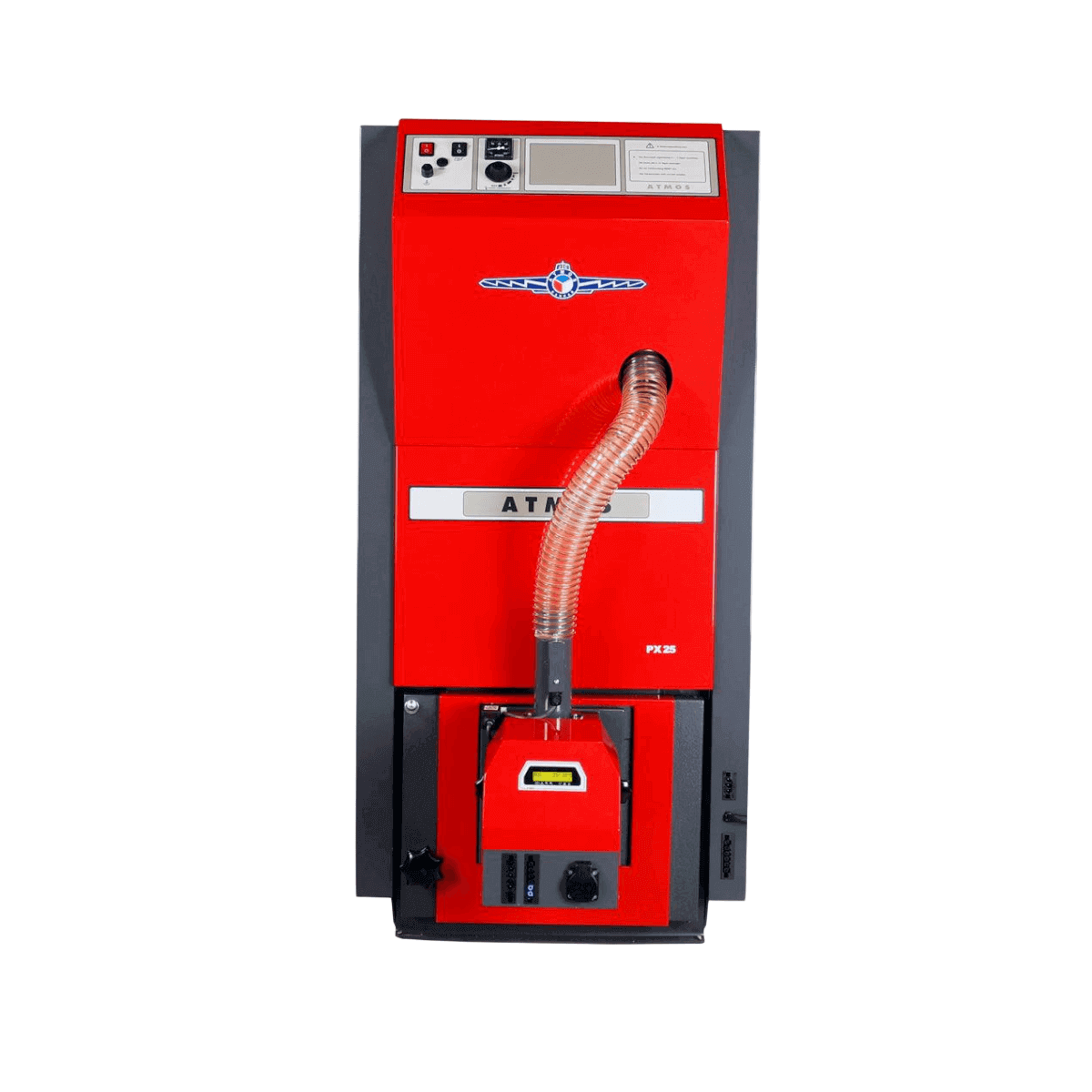

Pellet boiler ATMOS PX20 (eligible)

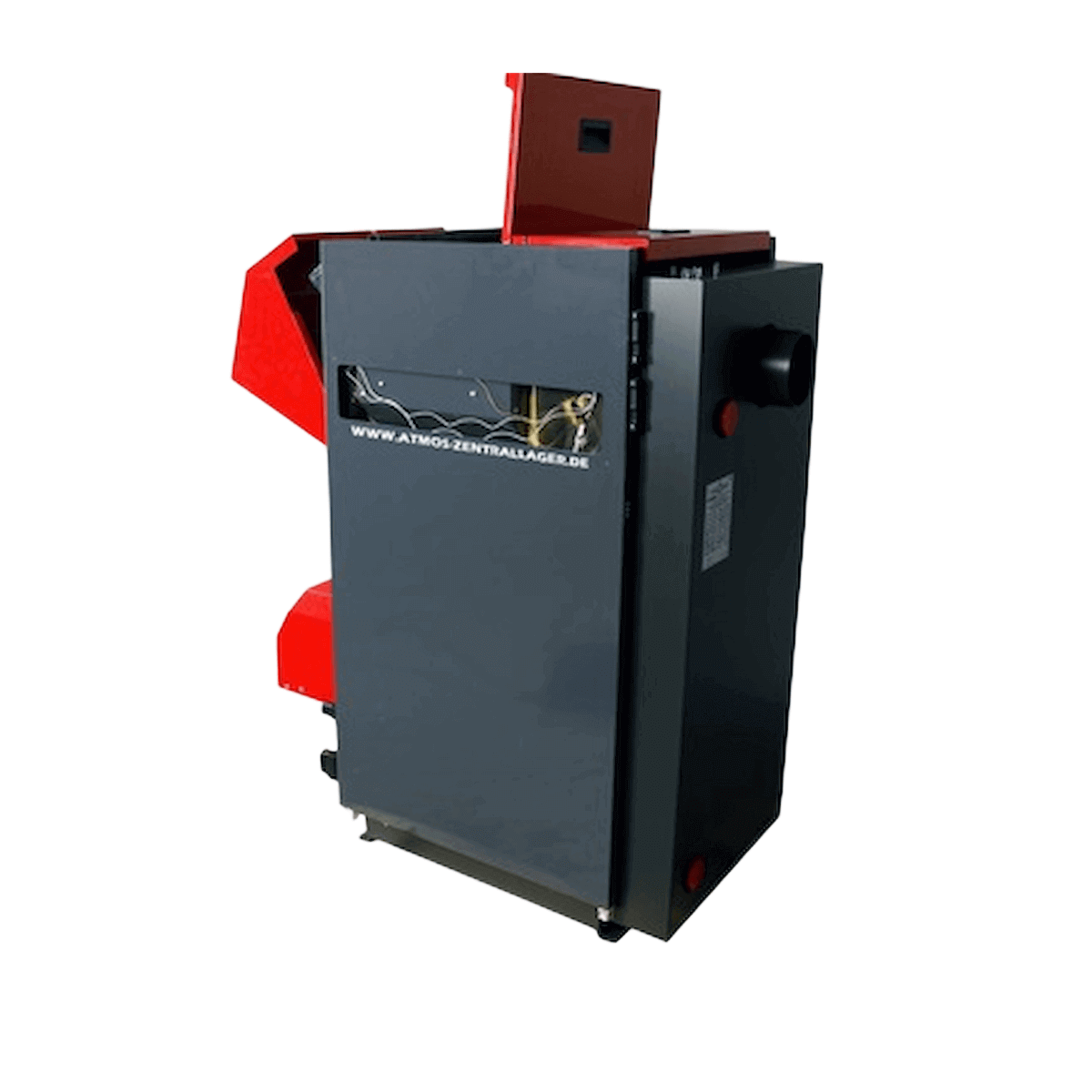

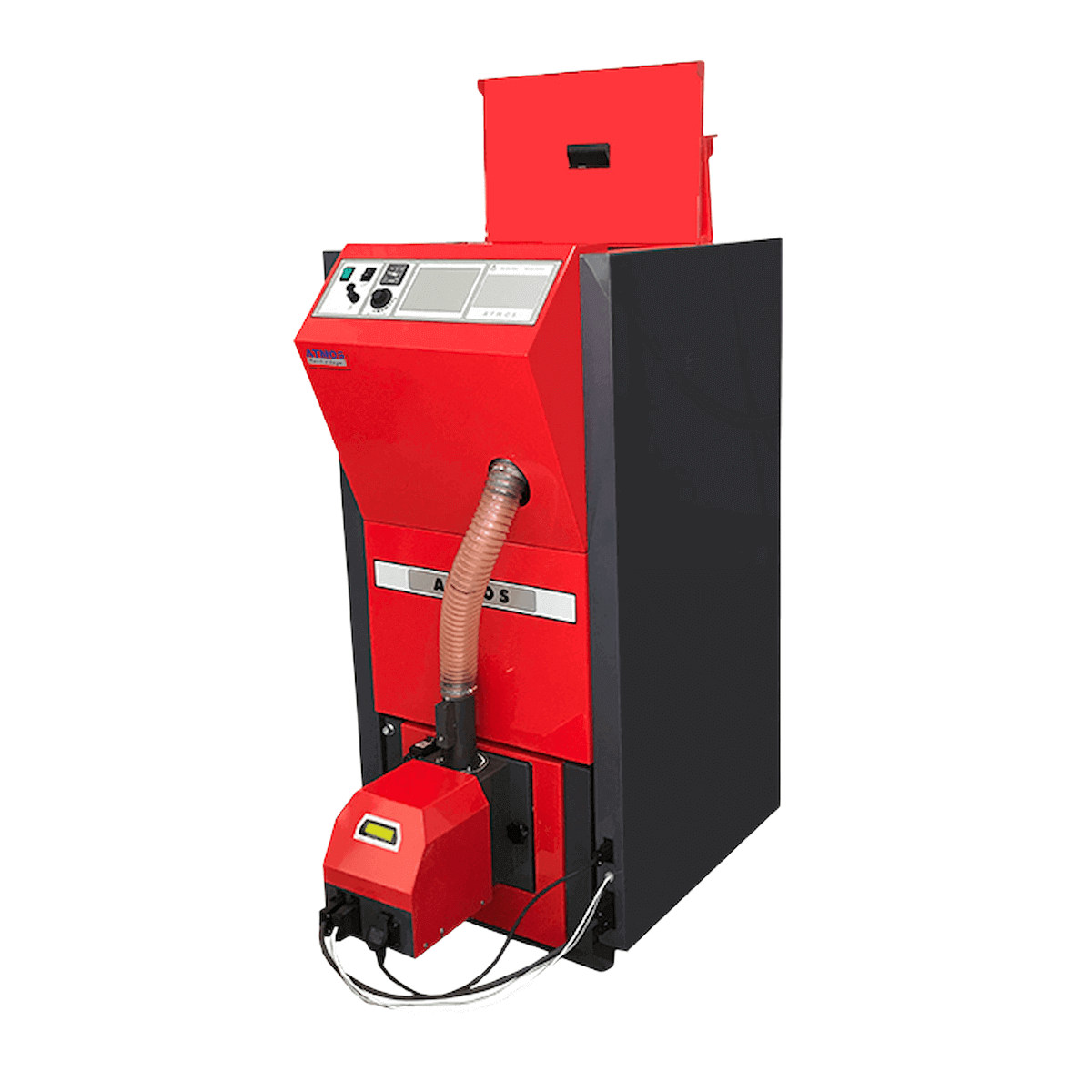

The PX15 and the PX20 have an approx. 175 liter integrated storage container in the upper area. It is intended that this silo will be refilled by the operator with pellets from bags every 3 to 5 days, which is not a problem with a filling height of around 1.4 m. It is also possible to mount the ATMOS BasicOne suction station on the silo, which makes manual refilling unnecessary. With this, the integrated silo can be filled automatically from a main warehouse a maximum of 15 m away.

An internal screw conveyor transports and doses the pellets from the integrated silo to the ATMOS A25PX pellet burnerr located at the bottom front. This differs in various details from the A25 pellet burners that are otherwise used and have been produced by Atmos since 2010. For example, the filling pipe is straight and not angled as usual and the software also differs from the standard version in various basic parameters. Otherwise, the pellet burner can be set up identically to the other A25 – A25GSP – A45 and A85 burners. A big advantage that Atmos offers, because the installer immediately knows his way around each of our burners as soon as he knows just one. The new ATMOS PX10 and ATMOS PX25 have also been available since March. The smaller PX10 has a maximum output of 10kW and the PX25 of 24kW. These two pellet boilers are also funded by the Bafa if a buffer storage tank with at least 30 liters/kW boiler output is set up during the installation. The new Bafa funding 2020 will subsidize the construction of the new pellet heating system with up to 45%.

Equipment & Properties

ATMOS PELLET BOILER – PX Series

• Space-saving boiler structure
• compact design with only 59 or 68 cm width
• Boil made of high-quality 6 mm boiler steel
• with external heat exchanger cleaning
• the pellet boilers of the PX series are fully insulated including the rear wall
• Thermal insulation with mineral wool insulation
• large integrated pellet storage tank
• compact boiler design
• can be combined with Basic One suction
• optional: weather-compensated control for 1 or 2 mixer circuits, 1 hot water and solar
• best emission values
• user-friendly and quick boiler cleaning
• Recommendation: Buffer management module for optimal buffer loading in pellet operation
• 5 instead of 2 years guarantee on boiler body when purchasing and using a Laddomat
• tested by TÜV DIN-EN303-5
• BAFA eligible

You can counteract the rising energy costs and of course also think about the finite nature of fossil fuels and climate change and environmental protection.Many people are looking for an alternative to their existing oil or gas heating system. Especially if you have to look for an alternative anyway due to the obligation to replace boilers that are over 30 years old. There are solutions that produce less CO2 and are more independent of fluctuating prices and without sacrificing comfort. The pellet heating system meets these requirements very successfully!

Technical data

• Energy efficiency class A+

• Boiler class 5

• Nominal heat output 20 kW

• Power range 4.8 - 21.9 kW

• Efficiency 91.5%

• Traction requirement 16 Pa

• Prescribed fuel pellets

• Exhaust gas temperature 142 °C

• Exhaust gas mass flow 0.015 kg/s

• Height 1411 mm

• Width 674 mm

• Depth 1447 mm

• Smoke pipe connection 150/152 mm

• Smoke pipe outlet 1213 mm

• Weight 345.0 kg

Scope of delivery

• Pellet boiler Atmos PX 20 kW
• Assembly & Operating instructions
