Gema GmbH | SKU:
RAH180DN25
Oventrop boiler return temperature booster RTA DN 25 (1") with 180 mm Wilo Para pump
Normal price
459,00 €
Basic price
vAT included.
Shipment will be charged at checkout.
Oventrop boiler return temperature booster RTA DN 25 (1") with 180 mm Wilo Para pump is in stock and will be shipped as soon as it is available again
Delivery and shipping
Delivery and shipping
Processing time is typically 1 business day. Delivery for parcels is 1-3 business days. For freight forwarding, delivery time is 3-5 business days. Delivery times outside Germany vary.
Oventrop boiler return temperature booster RTA DN 25 (1") with...
Normal price
459,00 €
Basic price
Description
Description
Boiler return temperature boost RTA -180 (1") with Wilo Para pump
The Oventrop boiler return temperature booster type "Regumat RTA-180" - DN 25 for solid fuel boilers and pellet boilers
It is used to regulate the return temperature in solid fuel and pellet boilers. The return temperature is raised to the set value using a three-way valve in conjunction with a temperature controller (adjustment range 40°C - 70°C) and an immersion sensor.

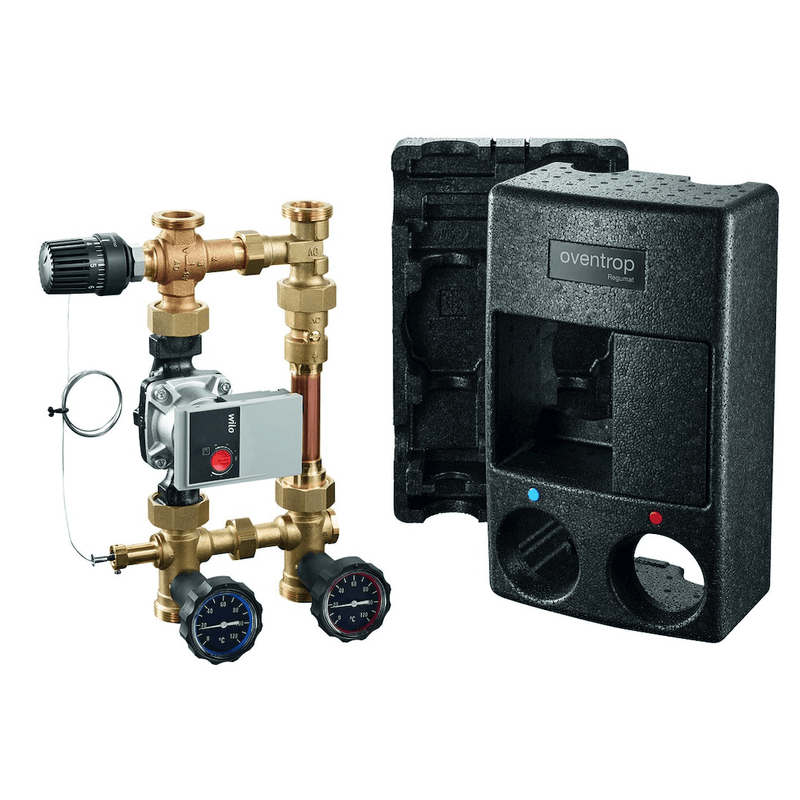

The boiler return temperature booster RTA-180 DN 25 (1") with pump has a universal, modular thermal insulation.

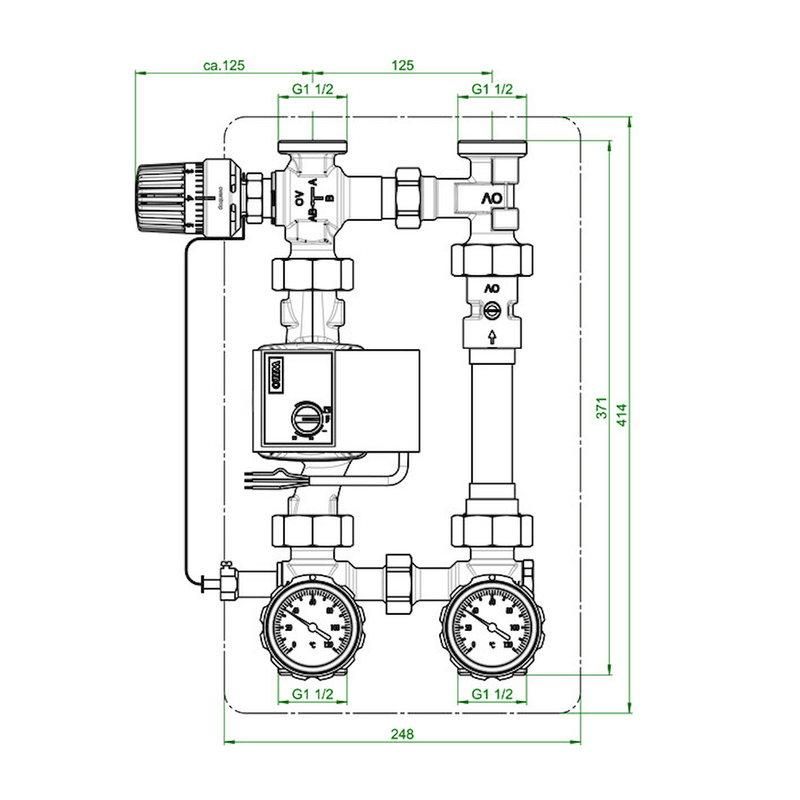

The return flow boost consists of:
- circulation pump
- Ball valve with thermometer
- Three-way mixing valve
- Temperature controller with immersion sensor
- Flange pipe with shut-off valve
- Ball valve with thermometer and
- Connection for immersion sensor
- insulation
- Connection on heating circuit side:
- DN 40 (G 11/2") AG flat sealing
- DN 40 (G 11/2") AG flat sealing
- Axle spacing: 125 mm
- Nominal diameter: DN 25
- Version: with Wilo PARA 25-180/6-43/SC-9 circulation pump
- Maximum operating pressure: PN 10
- Maximum operating temperature: 95 degrees
