Balcony power plant set 870Wp – your entry into sustainable energy
ENERGY free directly from the S U N
Product overview
With the balcony power plant set 870Wp you get a perfect complete solution to efficiently use the power of the sun. This set combines high-quality photovoltaic modules with a modern microinverter that already offers integrated Wi-Fi functions, enabling convenient monitoring of the system.
Produce solar power with your own photovoltaic system!
Experience the future of energy generation with an uncomplicated installation and a well-thought-out design that is intended for outdoor use. This way, you can actively contribute to environmental protection today and generate your own electricity.
High-quality components
The modules included in the set photovoltaic modules convince with their high performance and innovative bifacial technology. This ensures increased energy yield, as light from the rear side also contributes to power generation. Thanks to excellent temperature behavior and a robust design, the modules operate reliably even under demanding weather conditions.
The system is rounded off by the Homilet HMS-800W-2T microinverter. It not only scores with high efficiency, but also with the integrated WLAN module, which enables easy monitoring and control of the system via the S-Miles Cloud.
Easy installation and monitoring
The pre-assembled design of the balcony power plant set significantly facilitates assembly. All components are optimally matched to each other, so you can put your new power source into operation without much effort.
With the modern microinverter, you can access your energy data in real time. Setting up an installer account also gives you convenient access to detailed information, so you always keep track of your energy generation.
Technical data at a glance
The photovoltaic modules offer an output of 435Wp each and are characterized by a long-term warranty on workmanship and performance. With their robust construction and light weight, they can be easily integrated and adapted.
The Hoymiles HMS-800W-2T microinverter impresses with its peak efficiency and high MPPT nominal efficiencies, guaranteeing safe and reliable operation under a wide range of environmental conditions – from extreme sub-zero temperatures to high summer temperatures.
The scope of delivery of this set includes:
- One Hoymiles HMS-800W-2T microinverter with integrated WLAN module for easy connection to the online platform.
- One balcony power plant cable (5 meters) for connection to standard Schuko plugs/sockets.
- Two high-quality photovoltaic modules that, thanks to their bifacial technology, ensure maximum energy yield.
Conclusion
The Balcony power plant Set 870Wp is an ideal solution for anyone looking to get started with their own sustainable energy supply. With a combination of outstanding module technology and a modern microinverter, this package provides everything needed for simple, effective, and future-oriented energy generation.
Start today for a greener future and harness the power of the sun to become more independent from external electricity sources – for greater sustainability and long-term cost savings.
Detailed Technical Information

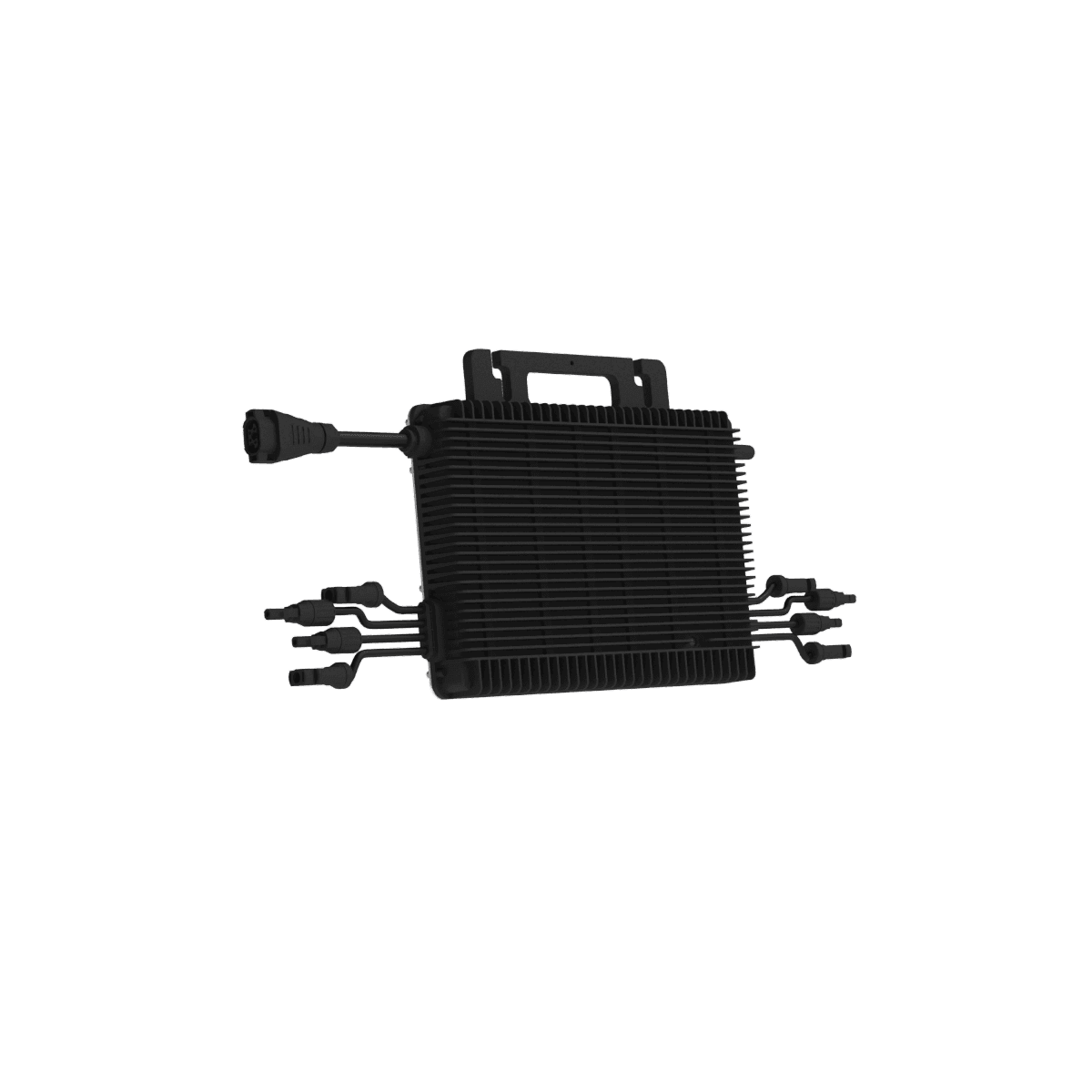

Hoymiles HMS-800W-2T microinverter with built-in Wi-Fi module
Technical Data Inverter
- Commonly used module power (W): 320 to 540+
- Maximum input voltage (V): 65
- MPPT voltage range (V): 16 - 60
- Start-up voltage (V): 22
- Number of MPPTs: 2
- Number of inputs per MPPT: 1
- Rated output power (VA): 800
- CEC peak efficiency: 96.7%
- MPPT rated efficiency: 99.8%
- Ambient temperature range (°C): -40 to +65
- Dimensions (W × H × D mm): 261 × 180 × 35.1
- Weight (kg): 3.2
- Protection class: Outdoor IP67 (NEMA 6)
- Cooling: Natural convection - No fans
- Communication/Monitoring: Sub-1G/Hoymiles S-Miles Cloud
- To set up your system and read out the data, an installer account for the S-Miles Cloud is required. We will be happy to set up access to the S-Miles Cloud for you free of charge upon request. Please send us a request via our contact form after purchasing an HMS-800W-2T inverter with the subject "DTU Hoymiles Stick Registration/Enrollment".
Trina Bifacial Photovoltaic Module 435Wp NEG9RC.27
Technical Data Module 435 Wp
- Better temperature behavior at high ambient temperatures for more performance.
- 5,400 Pa snow load and 4,000 Pa wind load (test loads)
- Bifaciality factor up to 85%
- 25-year product warranty on workmanship and 30-year performance warranty.
- High compatibility with available inverters, optimizers, and mounting systems.
- Easy handling thanks to perfect size and low weight.
- Solar cells: Monocrystalline
- Cell arrangement: 144 cells
- Module dimensions: 1,762×1,134×30 mm
- Weight: 21 kg
- Glass: 1.6 mm, highly transparent, anti-reflective coated, heat-tempered glass
- Backsheet: 1.6 mm, heat-tempered glass
- Frame: 30 mm anodized aluminum alloy, black
- Junction box: IP 68
- Connector: TS4 / MC4 EVO2*
Scope of delivery
- 1x Hoymiles HMS-800W-2T microinverter with built-in WLAN module
- 1x Balcony power plant Hoymiles HMS Field Connector to Schuko plug/socket cable - 5m
- 2x Photovoltaic module Trina Bifacial 435Wp NEG9RC.27
