Air conditioning monoblock ASM-12BI Sinclair Monoblock with R32

Sinclair ASM-12BI Monoblock Air Conditioner with R32 - Easy Installation

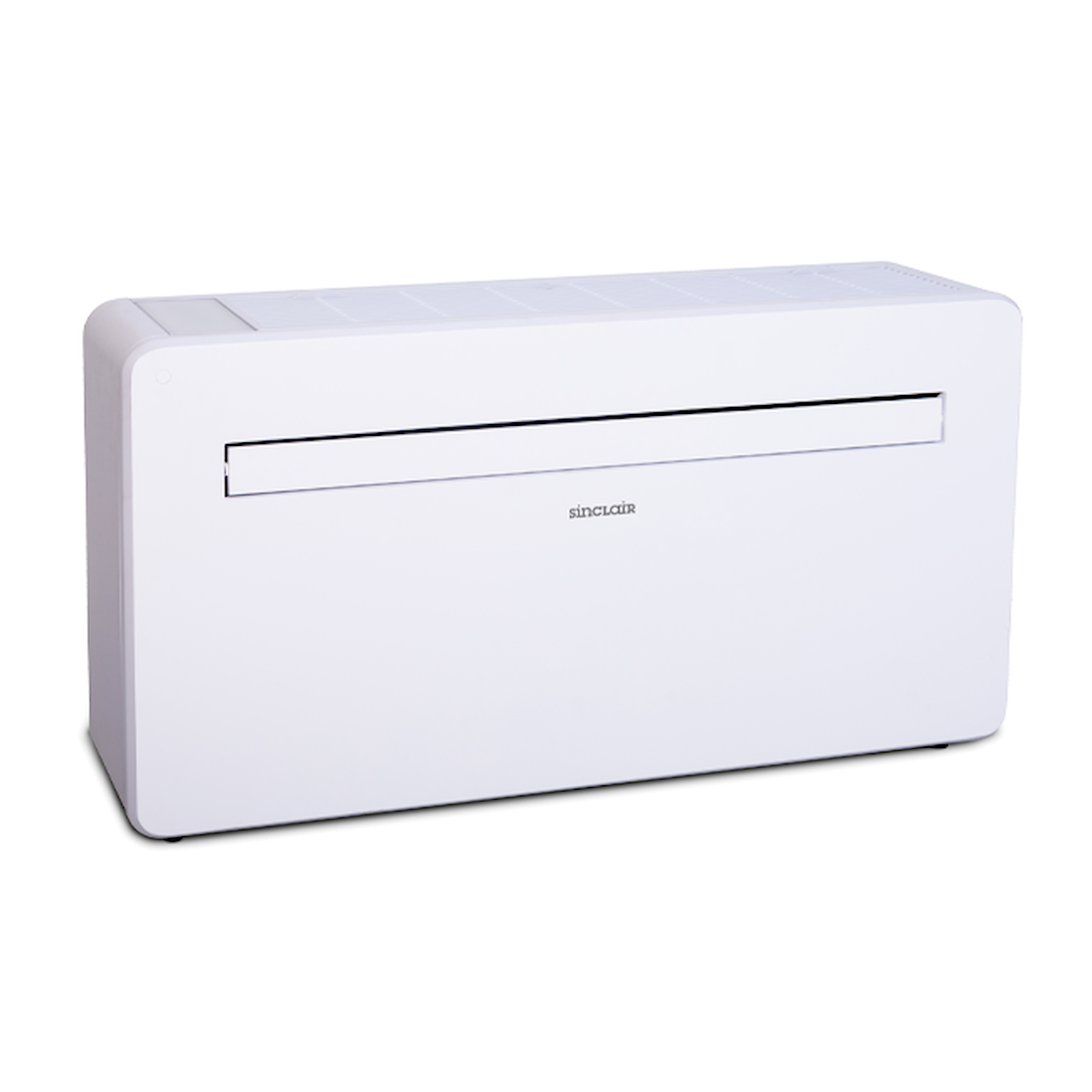

Product description

The Air conditioning - Monoblock ASM-12BI Sinclair monoblock with R32  This modern air conditioner brings a breath of fresh air to any room. This well-designed device combines functionality and efficiency to ensure comfortable temperatures in living and working spaces.

Developed as Monoblock-solution, the system does without a separate outdoor unit, This simplifies installation and saves space. It also boasts an attractive metal finish that guarantees both stability and a modern appearance.

Versatile functions

The Monoblock air conditioner offers a 4-in-1 concept that Cooling, heatingVentilation and dehumidification are combined in one device. These versatile modes allow you to individually adjust the room climate and create comfortable conditions – all year round.

With a precise DC-InverterThanks to its technology, the device operates efficiently and saves energy. Its quiet operation ensures a pleasant room climate without leaving any disturbing background noise.

Modern operation and control

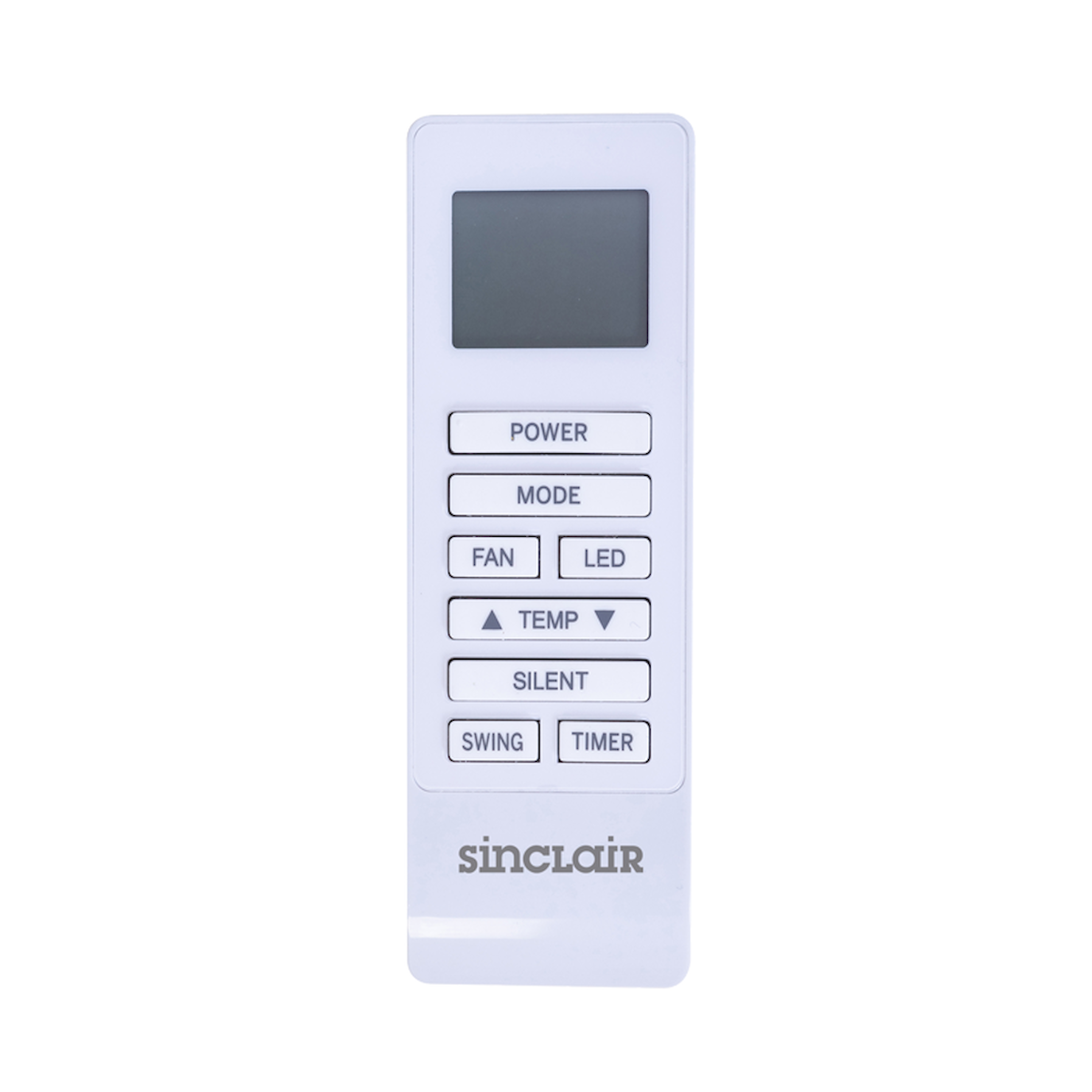

The air conditioner is operated intuitively via a remote control and a clear LCD display that provides all important information at a glance. Settings such as the 24-hour timer and different operating modes can be easily and conveniently adjusted.

Thanks to the Wi-Fi function, it is also possible to control the device via corresponding apps, which further increases ease of use and opens up flexible usage options.

Innovation in installation and safety

A key feature of the Sinclair ASM-12BI monoblock is its simple installation, which requires no outdoor unit. This significantly reduces effort and planning, making it ideal for quick deployment in a wide variety of rooms.

The system operates without creating a vacuum in the room, ensuring added safety and pleasant indoor air quality. The use of the modern refrigerant R32 further underscores the commitment to efficient and environmentally friendly technology.

Technical data

• Performance output Cooling/Heating: 3.5/2.9 kW
• Connected load cooling/heating: 1.34/0.775 kW
• Operating current cooling/heating: 6.0/3.5 A
• EER/COP: 2.60/3.60 W

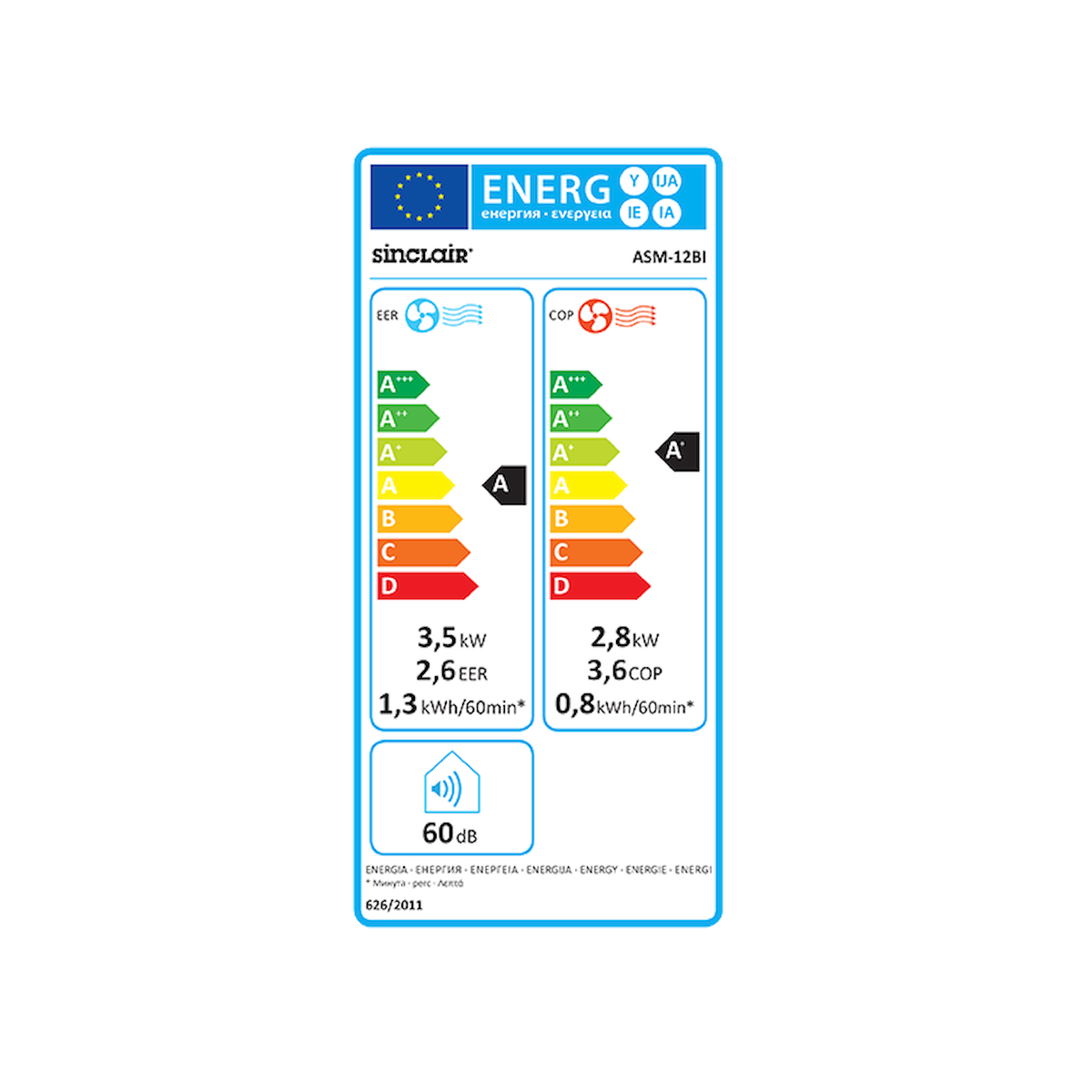

• Energy efficiency class cooling/heating: A/A+
• Dimensions (W x H x D): 1,000 x 585 x 205 mm
• Operating temperature range (cooling): -5 ~ 43 °C
• Operating temperature range for heating: -7 ~ 43 °C
• Net weight: 45 kg

Scope of delivery

• Sinclair Monoblock 12 BI
• remote control
• Assembly && Operating Instructions

Download

• Assembly && User manual
• Declaration of Conformity
• Safety instructions
