Balcony power plant 1780Wp with 1.6kW storage and Hoymiles HMS-1600-4T

Name: Balcony power plant 1780Wp with 1.6kW storage and Hoymiles HMS-1600-4T
Brand: Tepto
SKU: PVST5243
Price: 1150.00 EUR
Availability: InStock

1.150,00 €

vAT included. Shipment will be charged at checkout.

Delivery and shipping

Processing time is typically 1 business day. Delivery for parcels is 1-3 business days. For freight forwarding, delivery time is 3-5 business days. Delivery times outside Germany vary.

Description

1780Wp balcony power plant, 1.6kW storage, 4x445Wp Aiko 2S Fullblack

Product overview

This integrated balcony power plant combines four high-quality solar panels with a powerful 1.6 kW battery. Thanks to innovative technology, two panels feed directly into the grid, while the other two efficiently charge the battery. The modular design ensures optimal use of solar energy and guarantees a reliable power supply – both day and night.

The system impresses with its simple plug-in operation.&Easy installation and intelligent energy management lead to significant savings on electricity costs. At the same time, users benefit from durable technology and comprehensive warranties that guarantee safety and quality.

State-of-the-art solar modules

The four AIKO 445Wp-A-MAH54Mb Neostar 2S modules offer high efficiency and optimized performance even under partial shading. The use of robust 3.2 mm thick solar glass and advanced cell technologies reduces the formation of microcracks, significantly increasing the modules' lifespan and performance.

In addition, the modules impress with an improved temperature coefficient and reduced power loss. These properties contribute to the solar modules delivering a consistently high energy yield even under challenging conditions.

Efficient microinverter

The Hoymiles HMS-1600-4T microinverter ensures optimal conversion of the generated DC voltage into grid-compliant AC current. With a CEC peak efficiency of 96.7% and reliable performance across a wide temperature range, it guarantees high overall system efficiency.

The compact design and easy system integration enable seamless connection of the solar modules. The superior microinverter technology also supports seamless acquisition and monitoring of performance data.

Intelligent solar storage

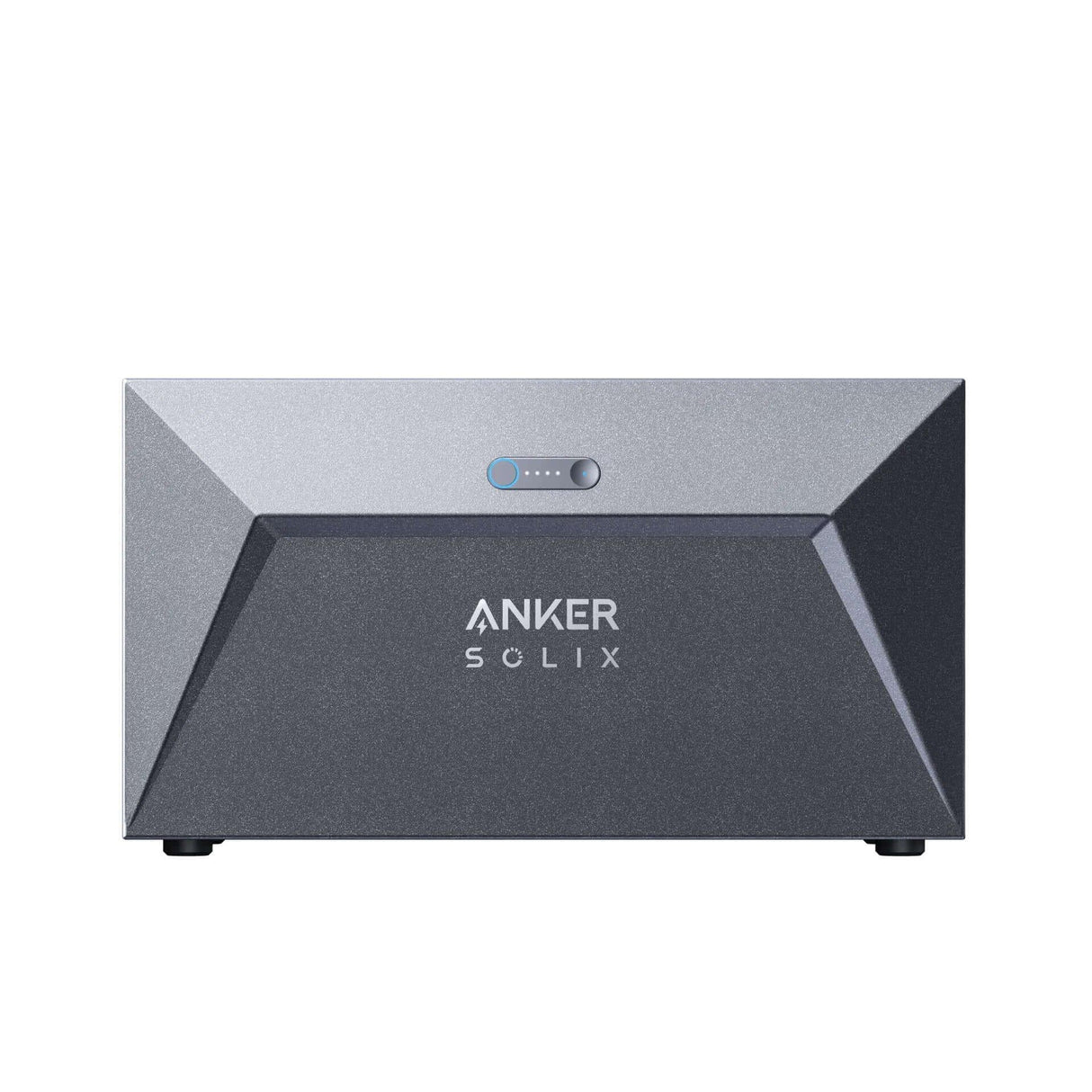

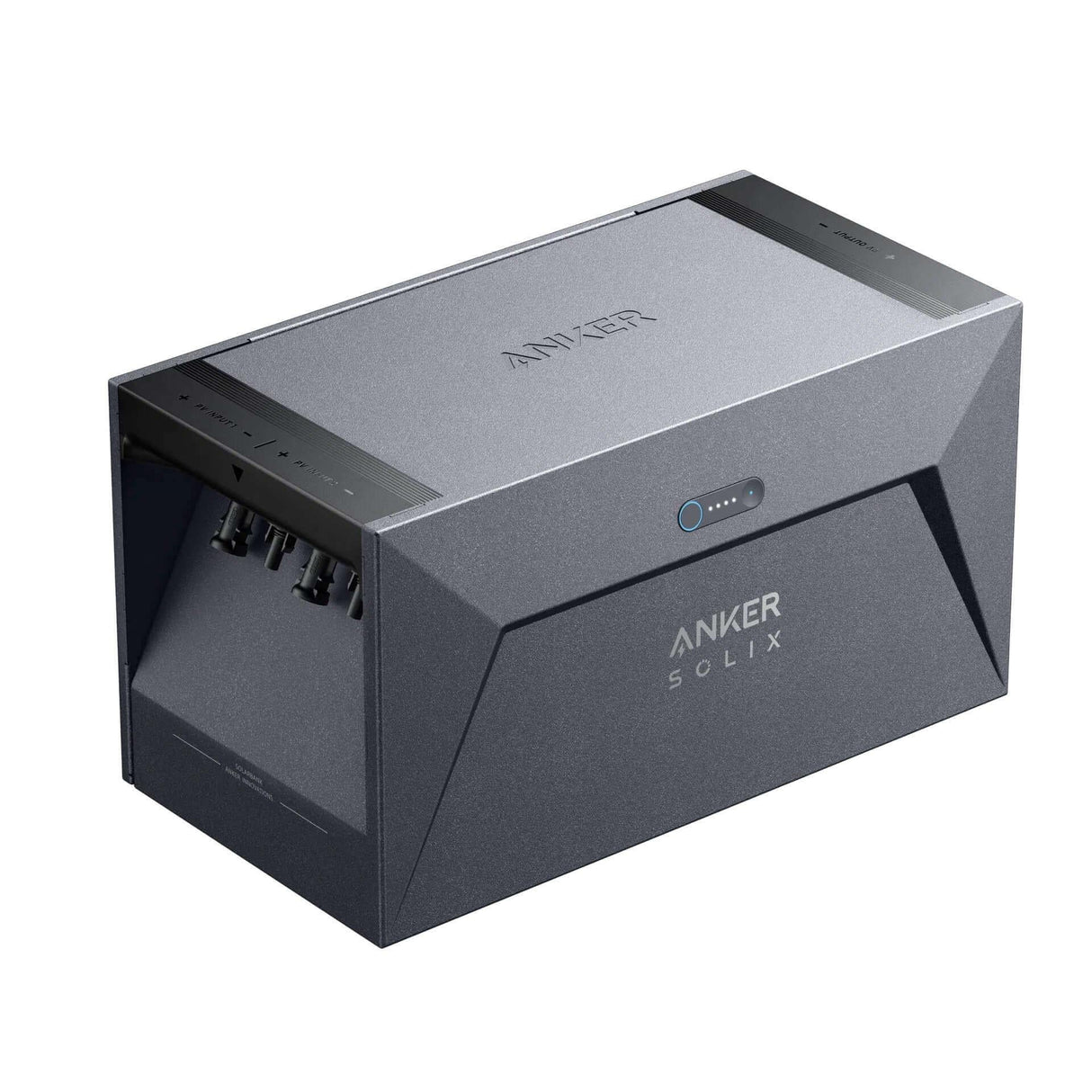

The Anker SOLIX solar bank E1600+17Y0 offers reliable energy storage with a capacity of 1.6 kWh. Equipped with LFB battery cells and a robust LiFePO4 battery, the solar bank guarantees a long lifespan of up to 15 years and 6000 charging cycles.

The integrated technology enables intelligent energy management, effectively making energy stored during the day available at night. Thanks to modern connectivity options and wireless monitoring, the system can be controlled via a convenient app.

Easy installation and attractive benefits

The balcony power plant impresses with its quick and easy setup. The well-designed plug&The Play concept makes it easy for even less tech-savvy users to install the system in just a few minutes.

Combined with real-time analytics via the Anker app, users can monitor electricity consumption, storage, and savings at any time. The high self-consumption rate and reliable power supply contribute to a return on investment within a few years.

Detailed Technical Information

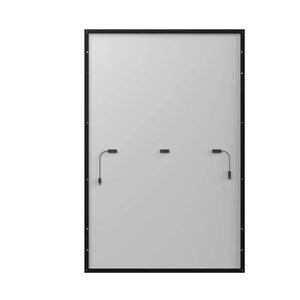

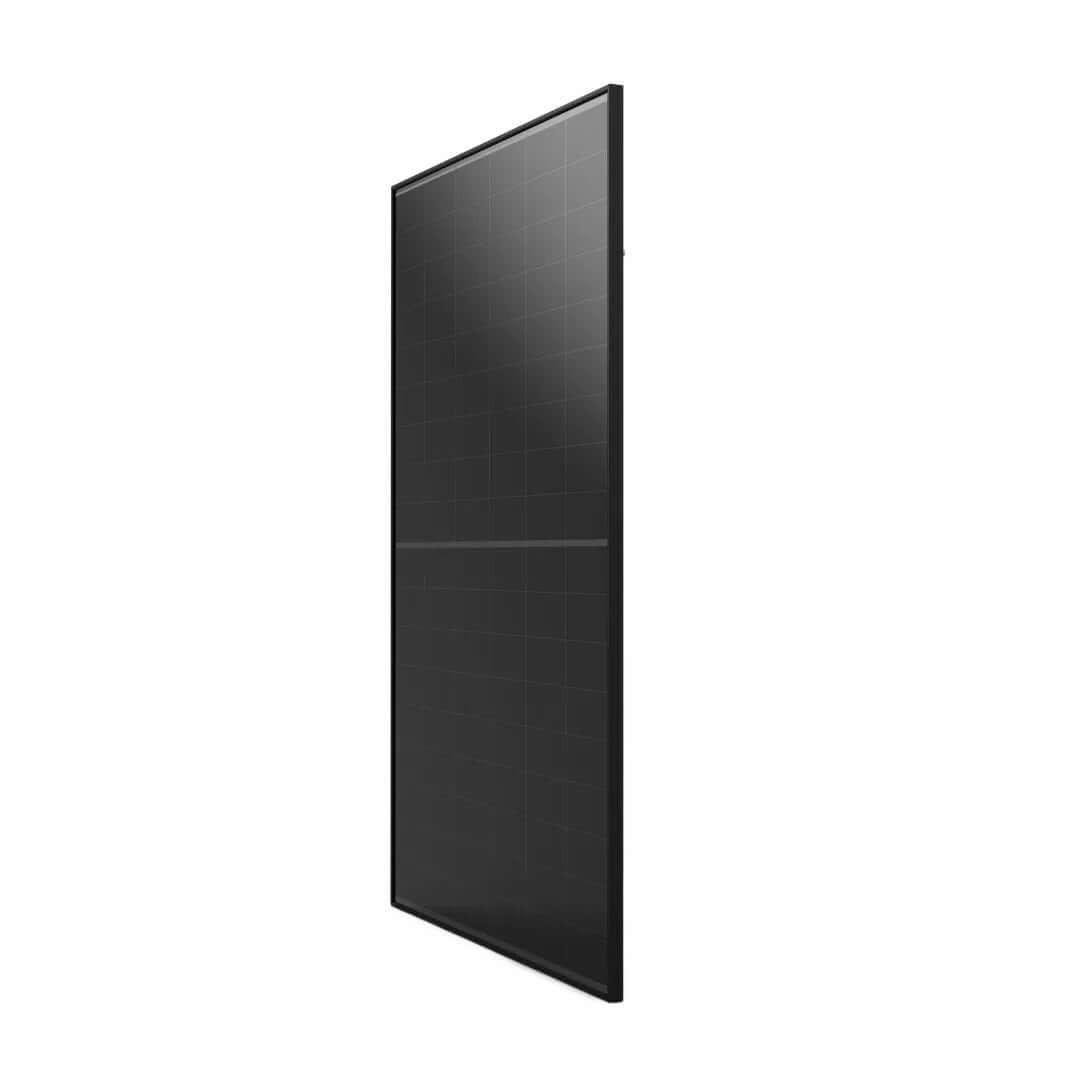

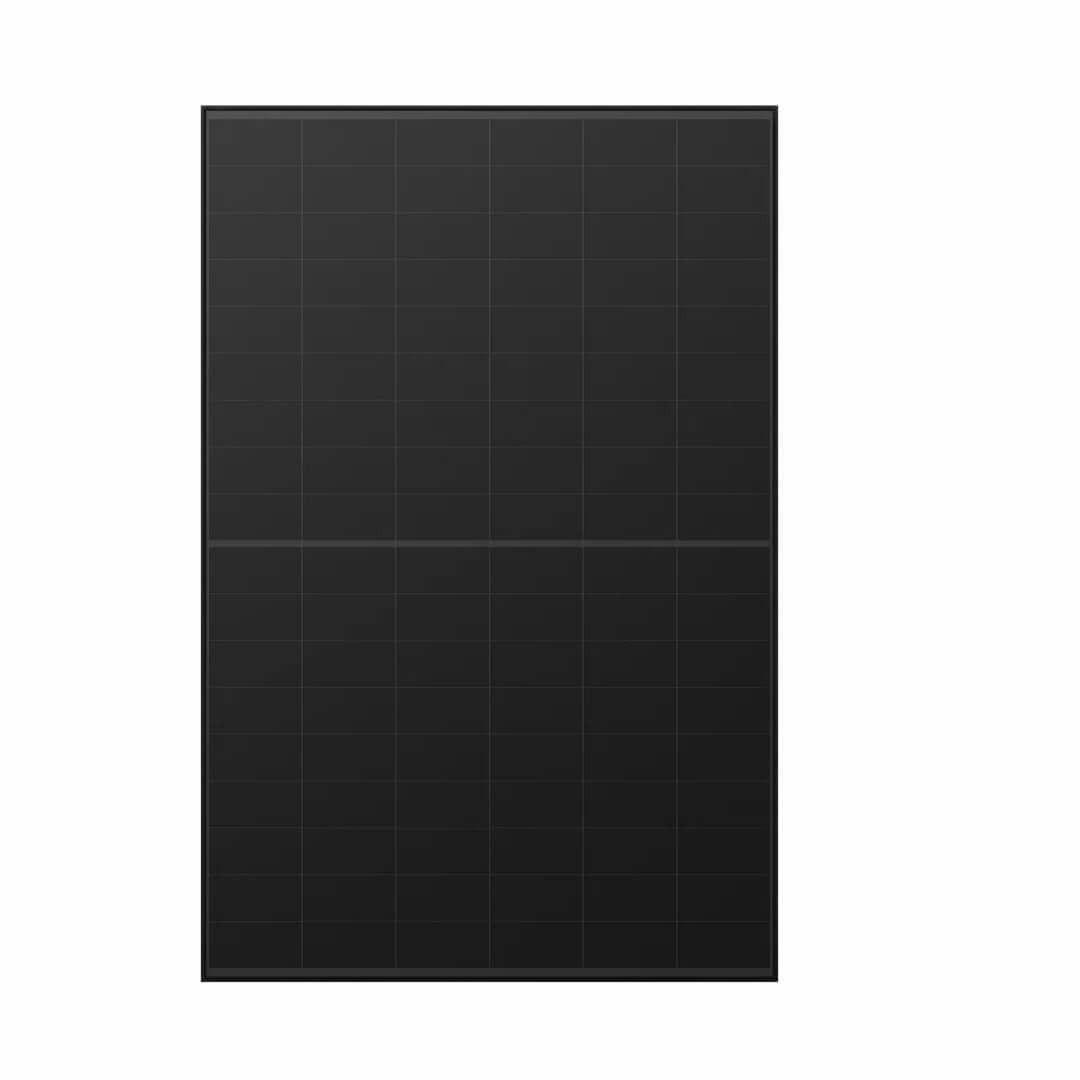

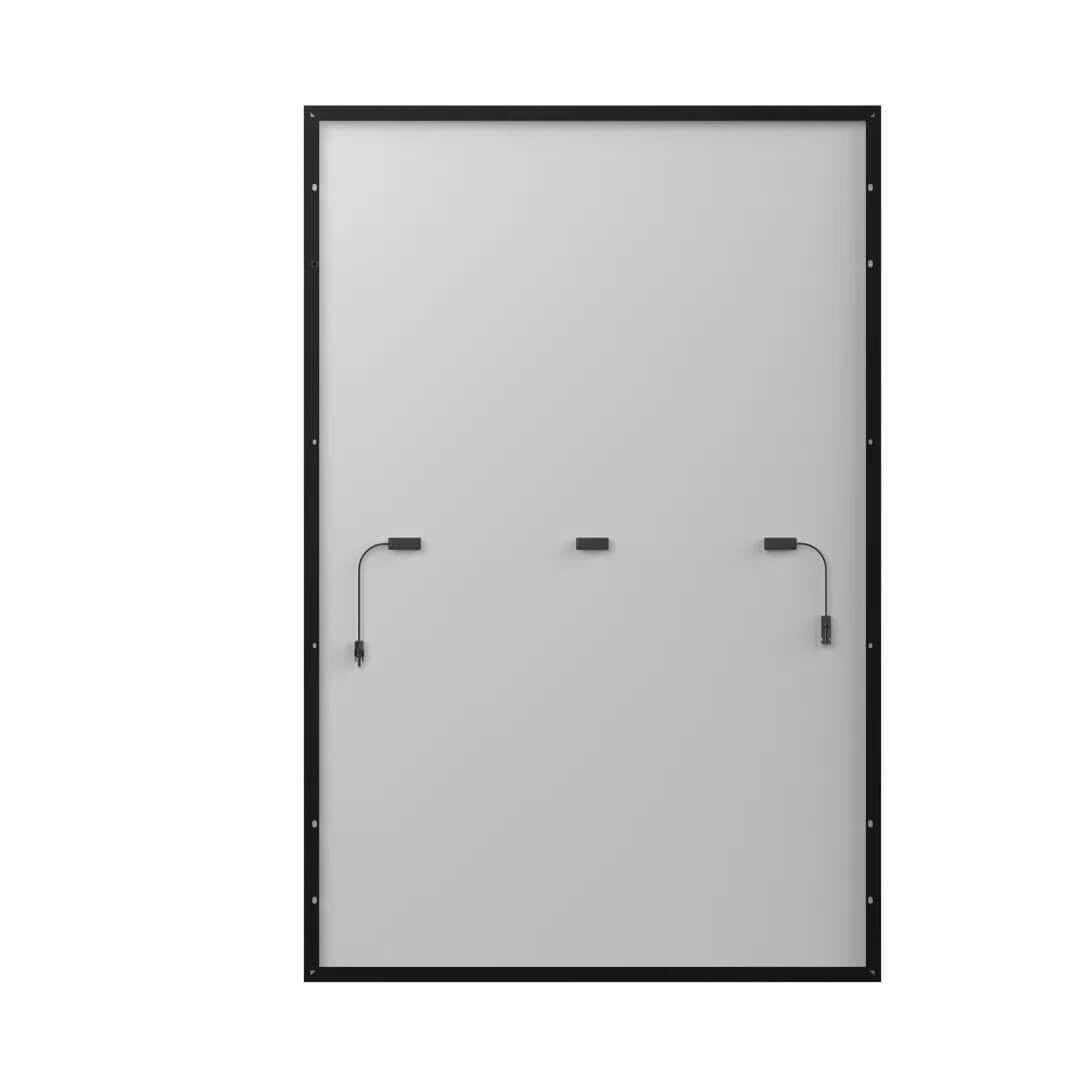

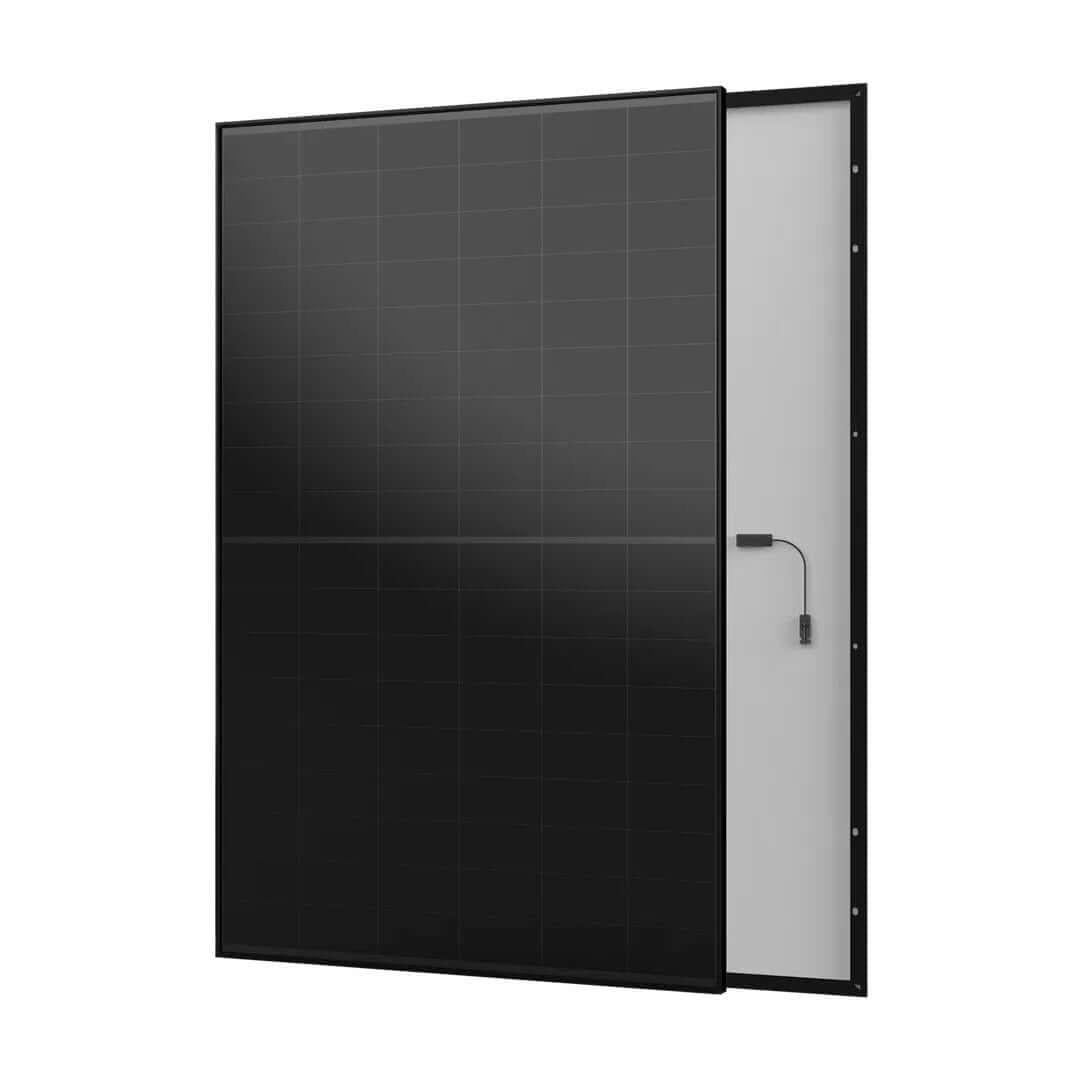

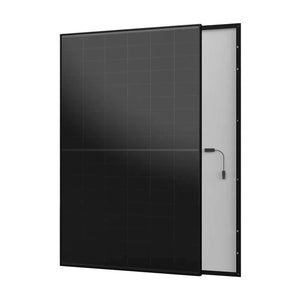

AIKO 445Wp-A-MAH54Mb Neostar 2S

Technical specifications AIKO 445Wp

Optimized performance in partial shading – significantly higher power yields compared to monofacial and bifacial PERC, heterojunction and Topcon modules of the same power class.
Protection against premature degradation caused by microcracks in the cells – thanks to 3.2 mm thick solar glass and more robust cells with a higher layer thickness compared to conventional cells.
Improved temperature coefficient
Lower cell temperature when shaded
Resistance to microcracks
Higher performance
Reduced roof load
Low performance degradation: 1st year ≤ 1.0%, Linear degradation ≤ 0.35%
Improved performance temperature coefficient: -0.26%/°C
Low temperature coefficient for heat resistance and efficiency.
Long warranty period: 25-year product warranty and 30-year performance warranty
Module efficiency: 22.3%
Number of cells: 108
Cell type: N-type ABC
Cable length: 1200 mm (+)/1200 mm (-)
Connector system: MC4-EVO2
Dimensions (H/W/L): 30 mm/1134 mm/1757 mm
Pressure load front/back: 5400 Pa/2400 Pa
Power tolerance (positive): 0-3%

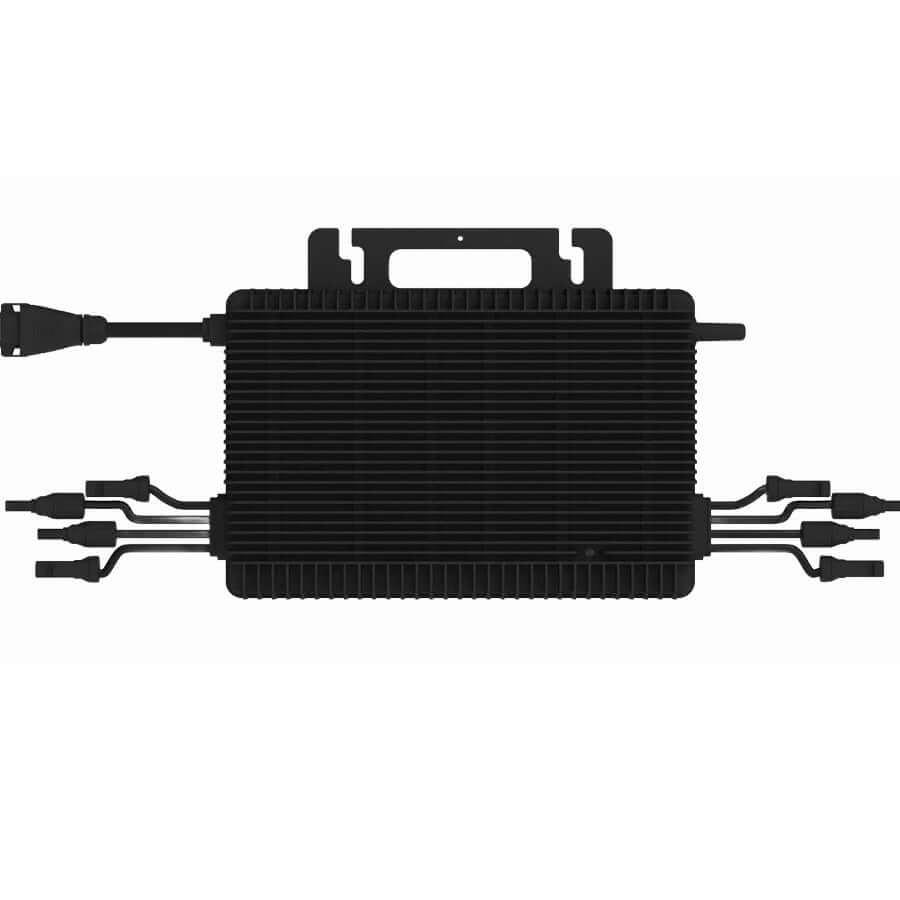

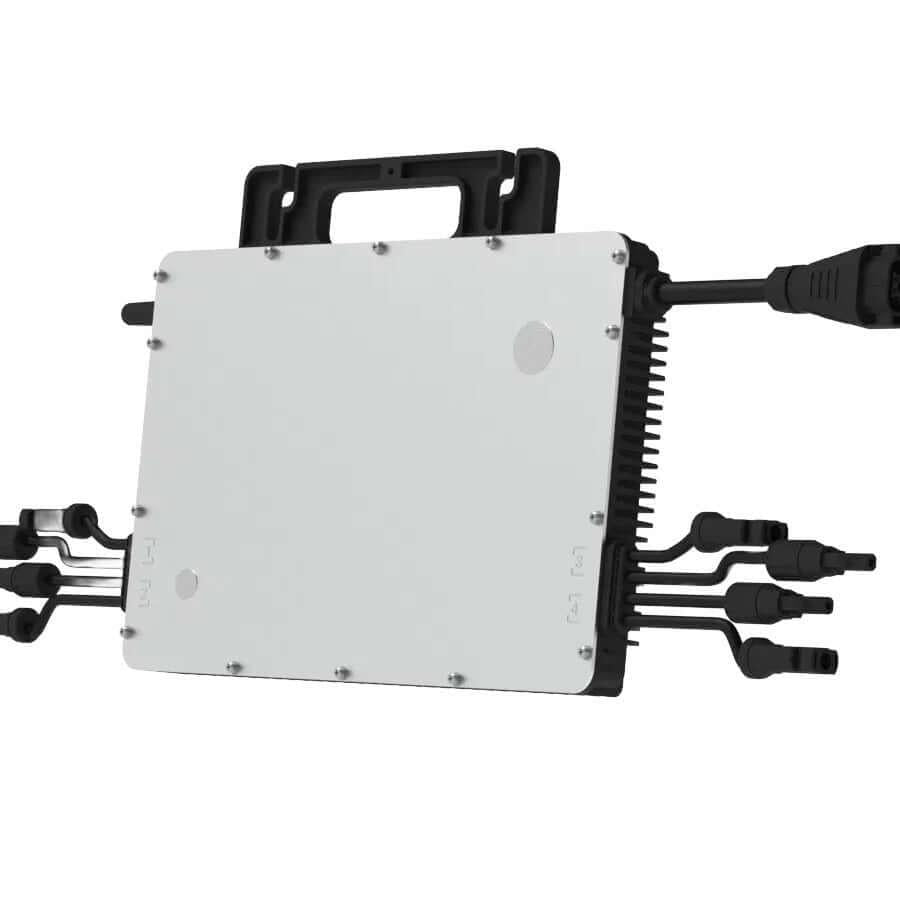

Hoymiles HMS-1600-4T microinverter module inverter

Technical specifications of inverters

Typical module power (W): 320 to 540+
Maximum input voltage (V): 65
MPPT voltage range (V): 16 - 60
Switch-on voltage (V): 22
Number of MPPTs: 4
Number of inputs per MPPT: 1
Nominal output power (VA): 1600
CEC peak efficiency: 96.7%
Ambient temperature range (°C): -40 to +65
Dimensions (W × H × D mm): 331 × 218 × 36.6
Weight (kg): 4.7
Protection rating: Outdoor IP67 (NEMA 6)
Cooling: Natural convection - No fans
Monitoring: DTU stick S-Miles Cloud (DTU stick is NOT included)

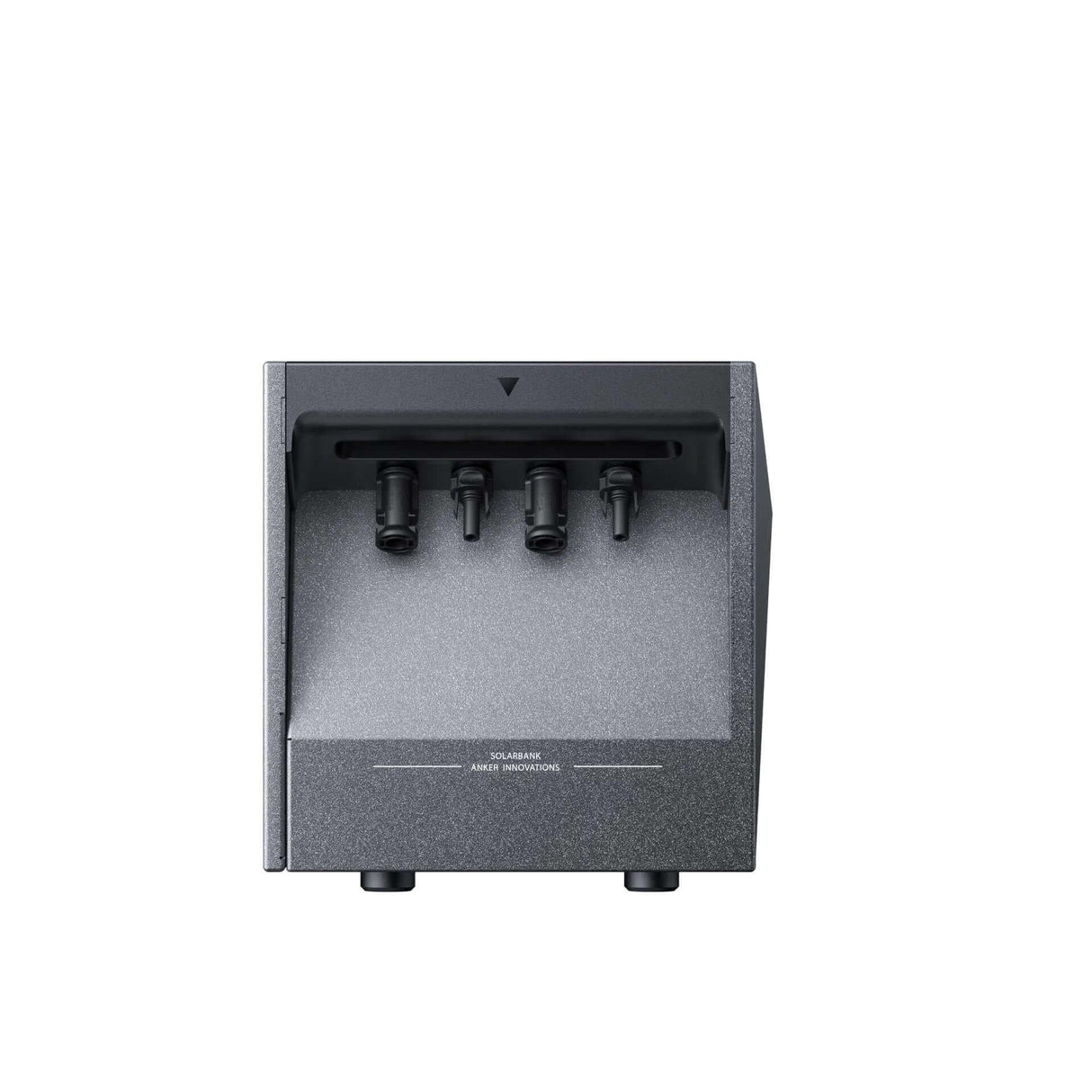

Anker SOLIX Solarbank E1600+17Y0 Storage for Balcony Power Plants

Technical specifications solar bank

Easy installation: Thanks to the simple plug&With the Play concept, featuring a 2-in-1 battery and DC power distributor, installation is completed in just 5 minutes.
Real-time analysis: The Anker app provides a convenient overview of electricity consumption, energy storage, and saved electricity bills.
1.6kWh capacity per unit: The solar bank intelligently stores solar energy during the day and reliably supplies the home with electricity at night.
6000 charging cycles: Equipped with LFB battery cells, the solar bank offers a reliable charging station with a lifespan of 15 years. Furthermore, it features IP65 water and dust resistance and a generous 10-year warranty.
Savings: The solar bench prevents energy waste and leads to significant savings on electricity bills. With a self-consumption rate of 90%, the solar bench pays for itself in approximately 5 years.
Capacity: 1.6kWh
Input power (charging)/Nominal output power (discharging): 800W max.
Input current/output current: 30A max.
Voltage range/nominal voltage range: 11 ~ 60V
Entrance/Exit Port: MC4
Connectivity: Wireless, Bluetooth, 2.4 GHz WLAN
Protection class: IP65
Charging temperature: 0~55℃
Discharge temperature: -20~55℃
Dimensions: 420mm × 232mm × 240mm
Weight: 20kg
Battery type: LiFePO4

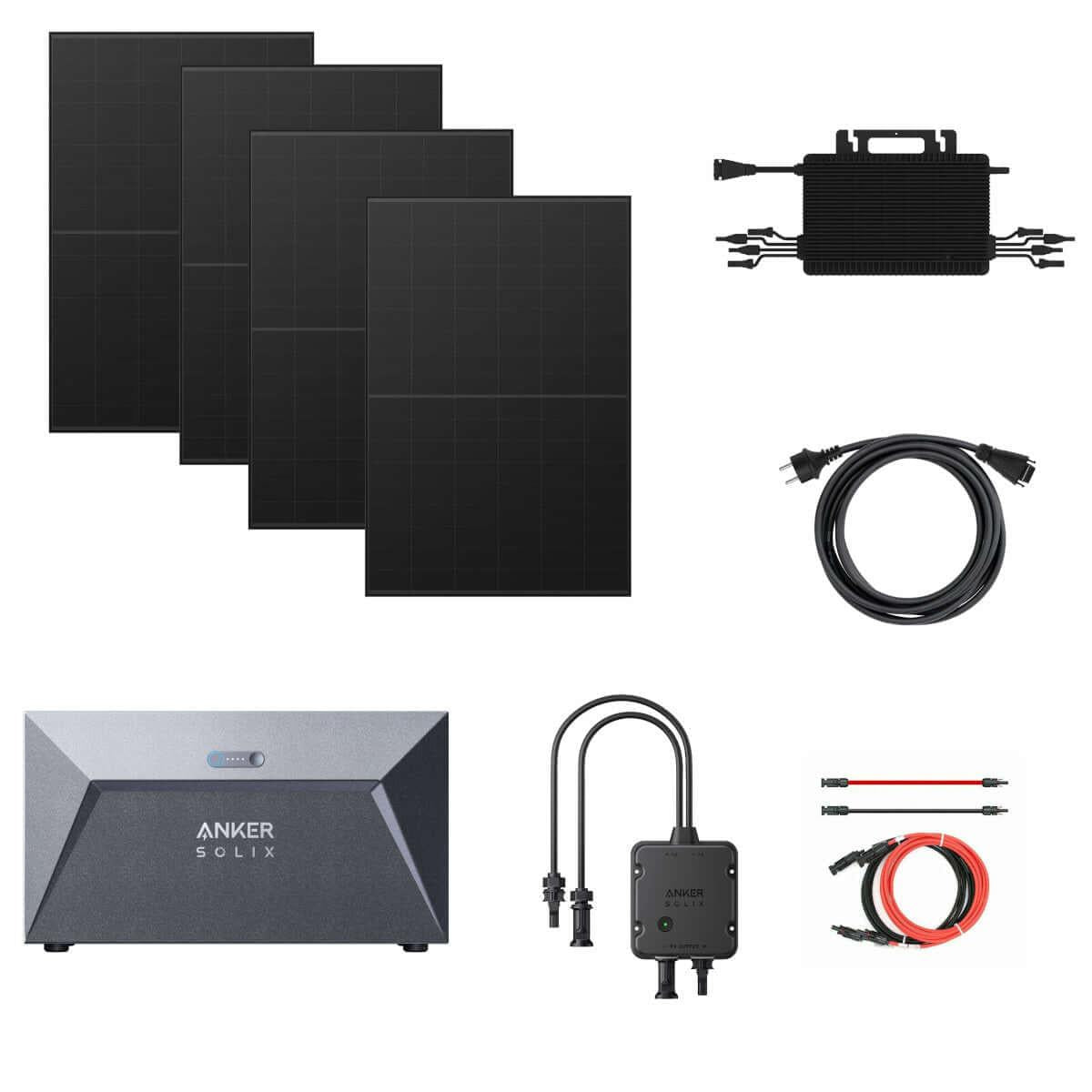

Scope of delivery

4x AIKO 445Wp-A-MAH54Mb Neostar 2S
1x Hoymiles HMS-1600-4T microinverter module inverter

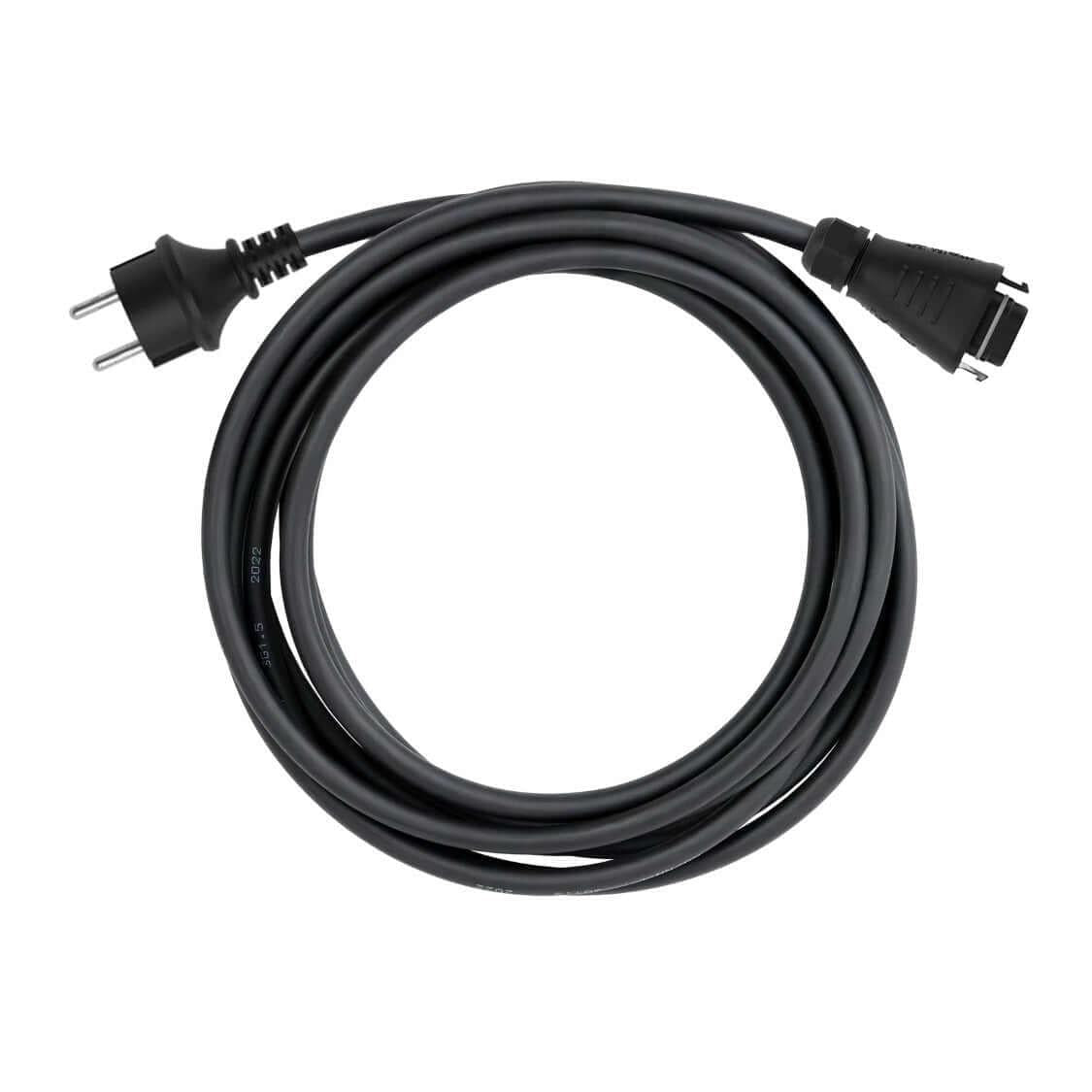

1x Hoymiles HMS connection cable, field connector to grounded plug/socket cable - 5m
1x Anker SOLIX Solarbank E1600+17Y0 Storage for Balcony Power Plants

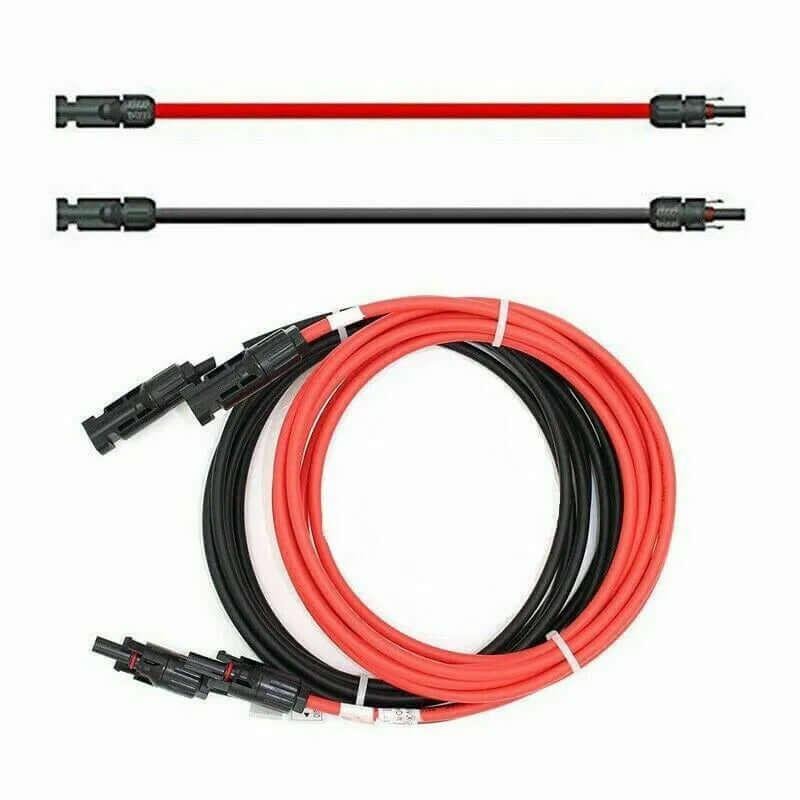

4x Extension cables 6mm² compatible with MC4 solar cables on both ends, black, incl.Plug - 5m
4x Extension cables 6mm² compatible with MC4 connectors on both ends, red solar cable, including plugs - 5m
