1680Wp balcony power plant set - 4x JA solar full black modules - Hoymiles HMS-1600-4T

1680Wp balcony power plant 4x JA Solar 420Wp Fullblack Hoymiles HMS-1600-4T

Product overview

Discover a modern solution for sustainable energy generation, ideally suited for balconies, terraces, garden sheds, or carports. This balcony power plant combines powerful solar panels with an innovative microinverter and impresses with its high efficiency and reliability.

The combination of four high-quality, all-black solar modules and a powerful microinverter ensures a constant power supply, even under challenging weather conditions. This allows you to benefit from optimal use of renewable energy.

High-performance solar modules

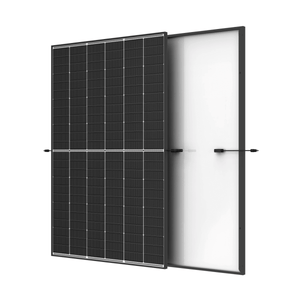

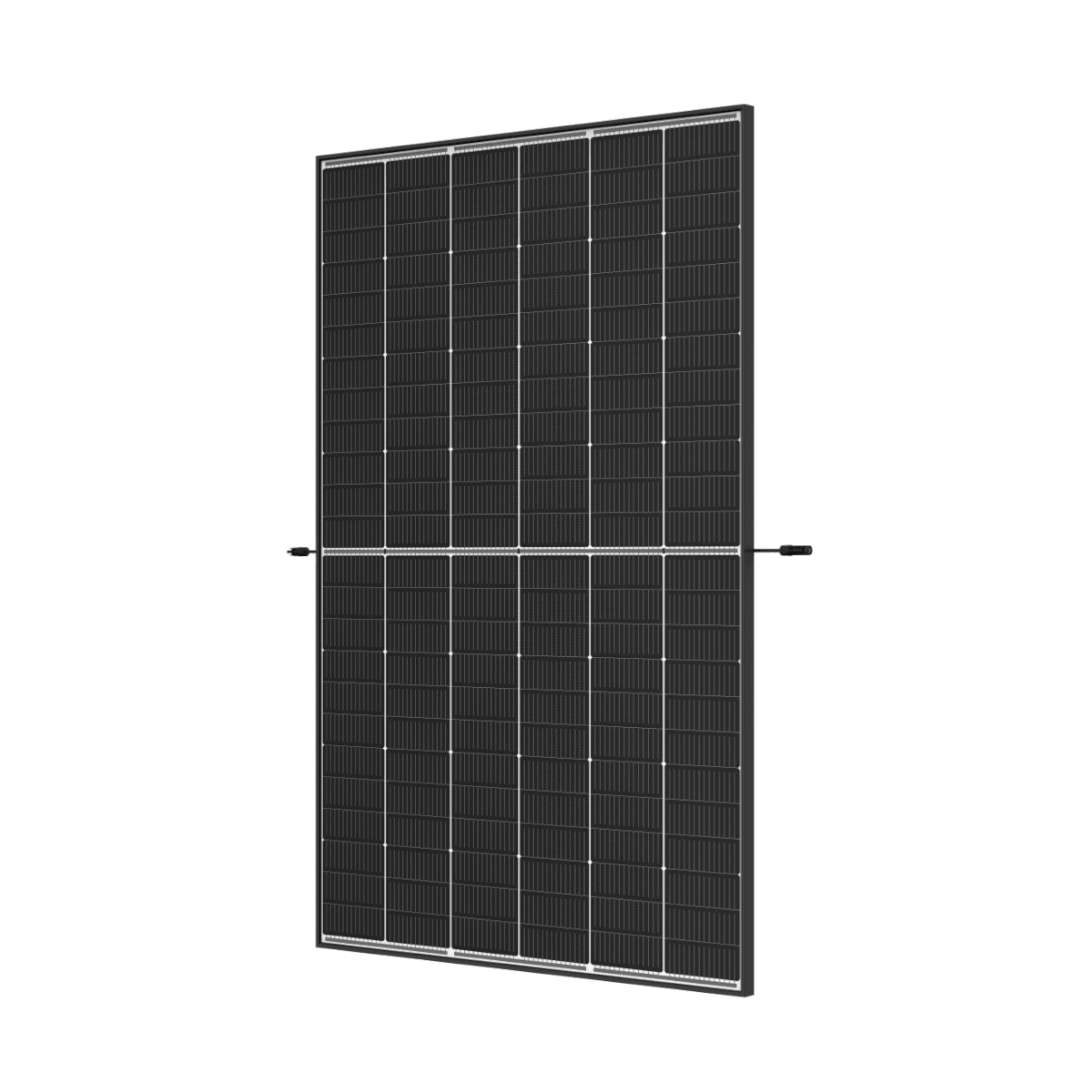

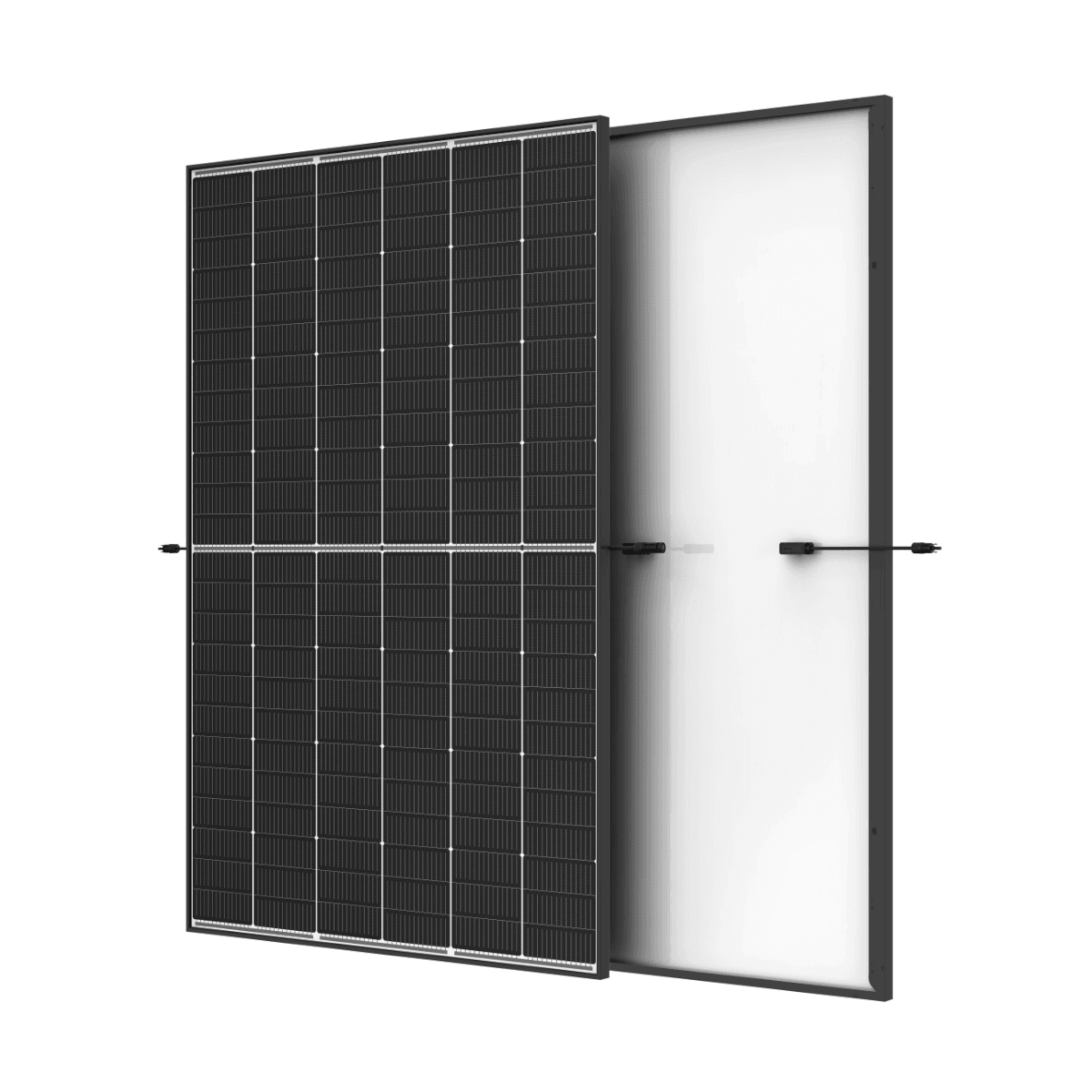

The JA Solar JAM54S31-LR monofacial full-black modules used in the system offer an impressive DC power output of 420 Wp per module. Thanks to multi-busbar technology, improved current pickup is achieved, resulting in higher energy yield.

With a module efficiency of 21% and a robust design that withstands even demanding environmental conditions, these modules are ideally suited for outdoor use. Their all-black finish also gives the product an attractive, modern appearance.

Efficient microinverter technology

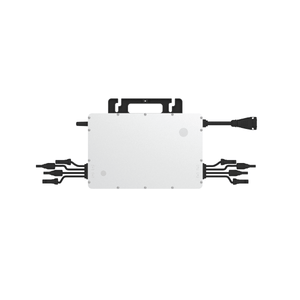

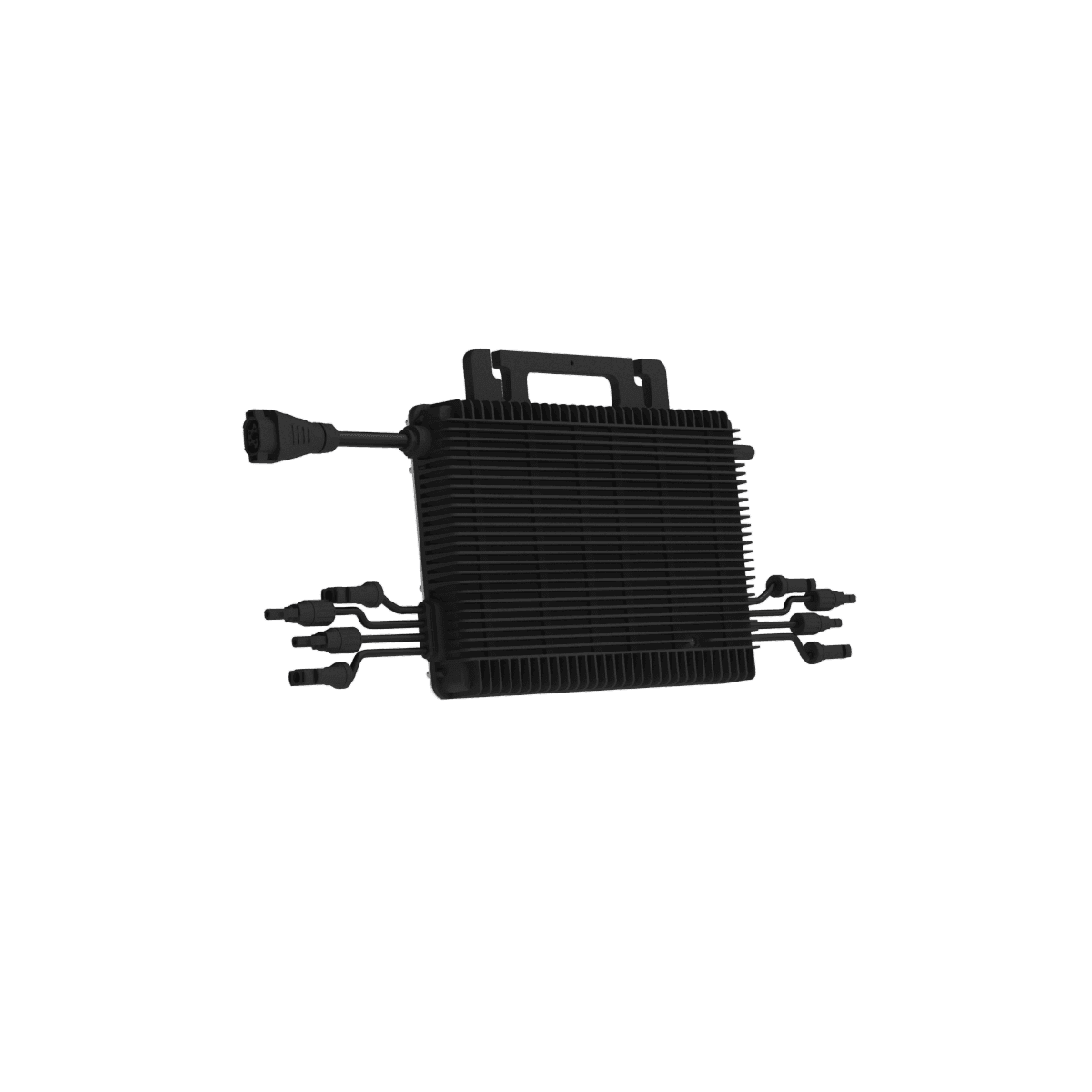

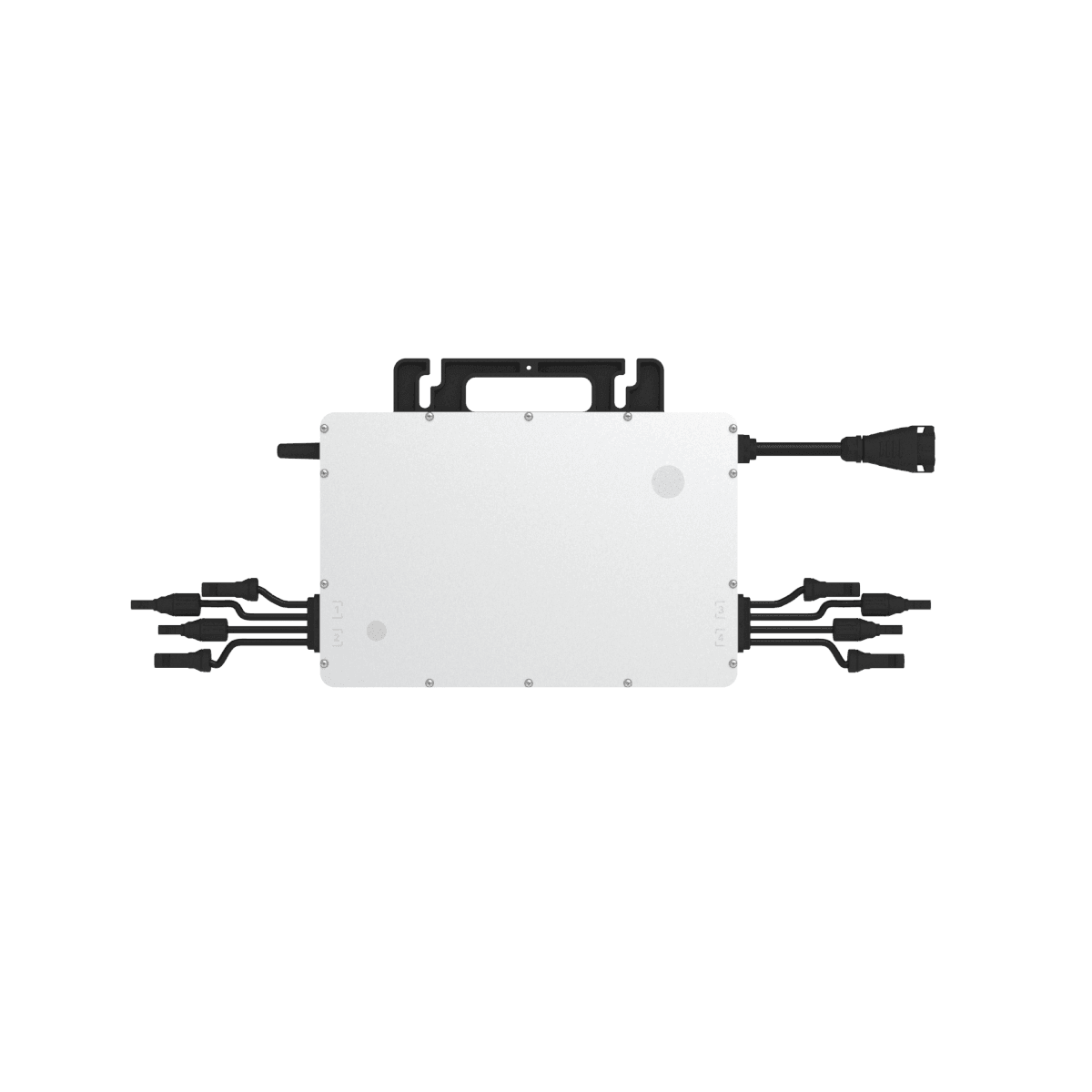

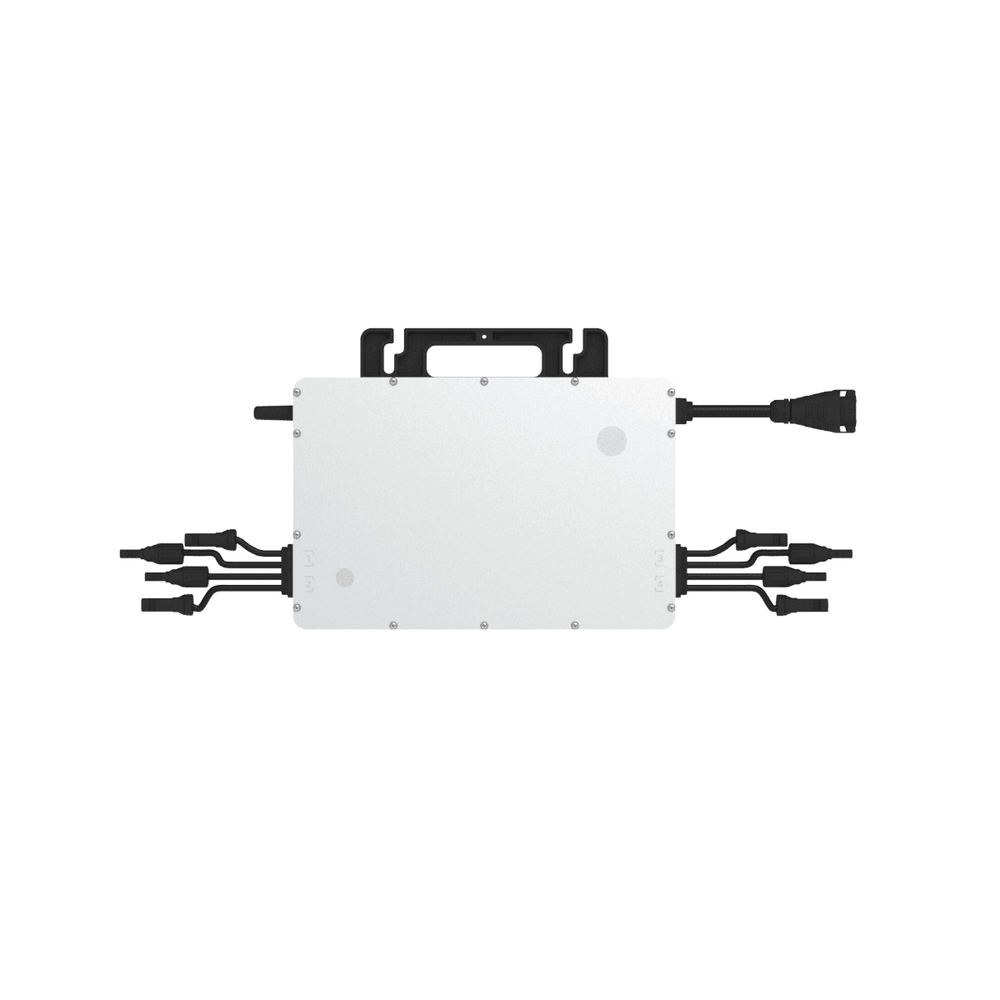

The Hoymiles HMS-1600-4T microinverter stands for high efficiency and reliability in converting the generated DC voltage into usable AC voltage. With a nominal output power of 1600 VA, this component forms the heart of the system.

Thanks to an impressive CEC peak efficiency of 96.7% and a wide input voltage range, the inverter ensures maximum performance even under varying light conditions. Furthermore, it operates silently through natural convection and requires no additional fans.

State-of-the-art technology and safety aspects

The multi-busbar technology of the solar modules continuously improves the reliability and performance of the overall system. This results in optimal power yield and increased operational reliability, which is of central importance, especially in long-term applications.

Furthermore, the entire system offers high protection ratings: The solar modules are classified as IP68 and the inverter is protected according to IP67 (NEMA 6). This ensures reliable operation, even under adverse environmental conditions such as dust, humidity and extreme temperatures.

Easy installation and flexible application options

The balcony power plant impresses with its uncomplicated installation, which can be implemented in a variety of locations around the house. Whether on the balcony, the terrace, in the garden shed or on the carport – the system can be easily installed thanks to its light weight and compact dimensions.

The well-thought-out planning of the components minimizes installation costs and simplifies integration into existing structures. This also enables newcomers to the world of renewable energy to realize their own electricity project.

Technical details and performance characteristics

JA Solar modules impress with their sound technical specifications: With dimensions of 1762 mm x 1134 mm x 30 mm and a weight of approximately 20 kg per module, they offer sufficient stability even for extreme weather conditions. This is complemented by a front pressure load of 5400 Pa and a rear pressure load of 2400 Pa.

The inverter also impresses with its compact dimensions (331 mm x 218 mm x 36.6 mm) and a weight of approximately 4.7 kg. The wide MPPT voltage range and the numerous individual inputs guarantee optimal operation of the connected modules.

Scope of delivery and additional components

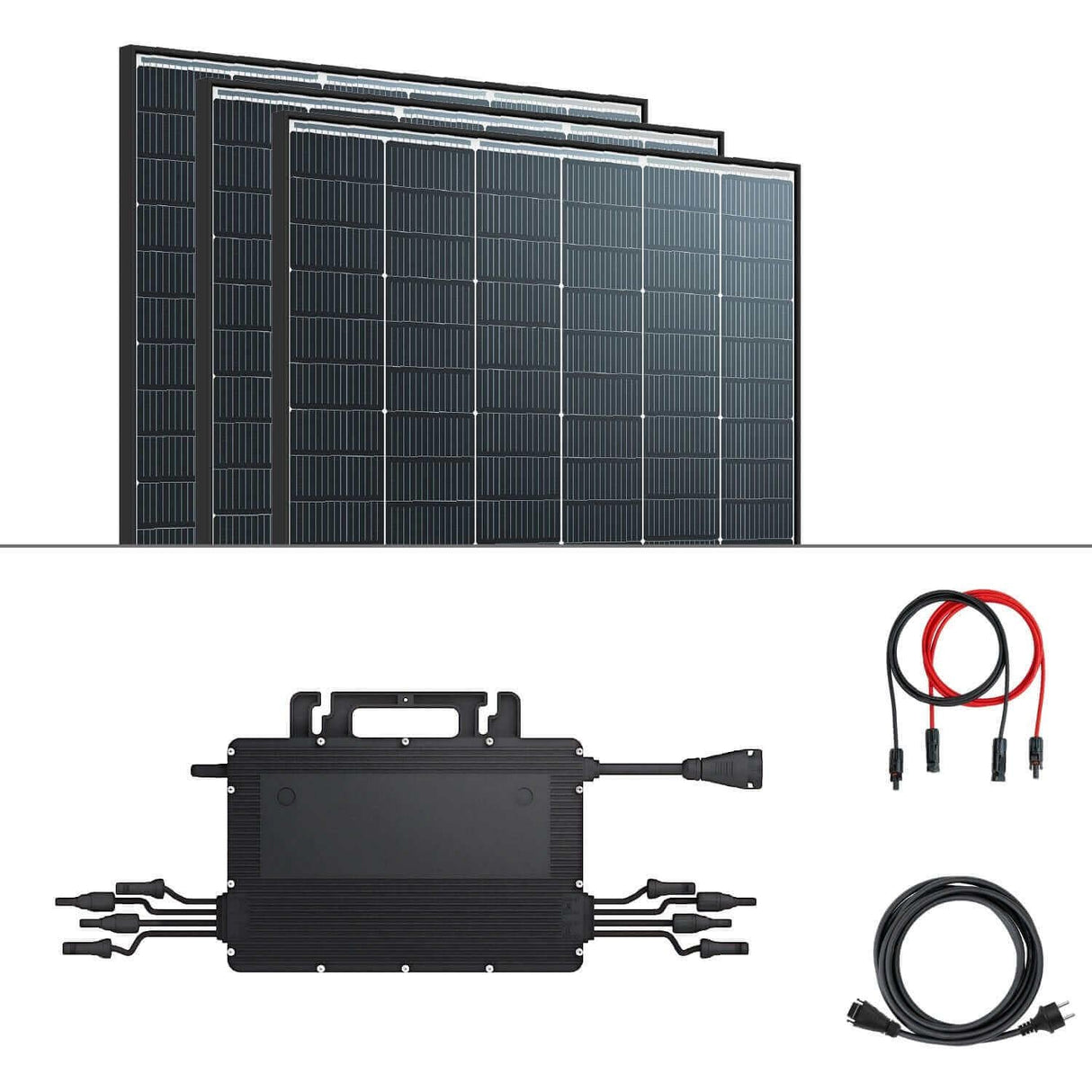

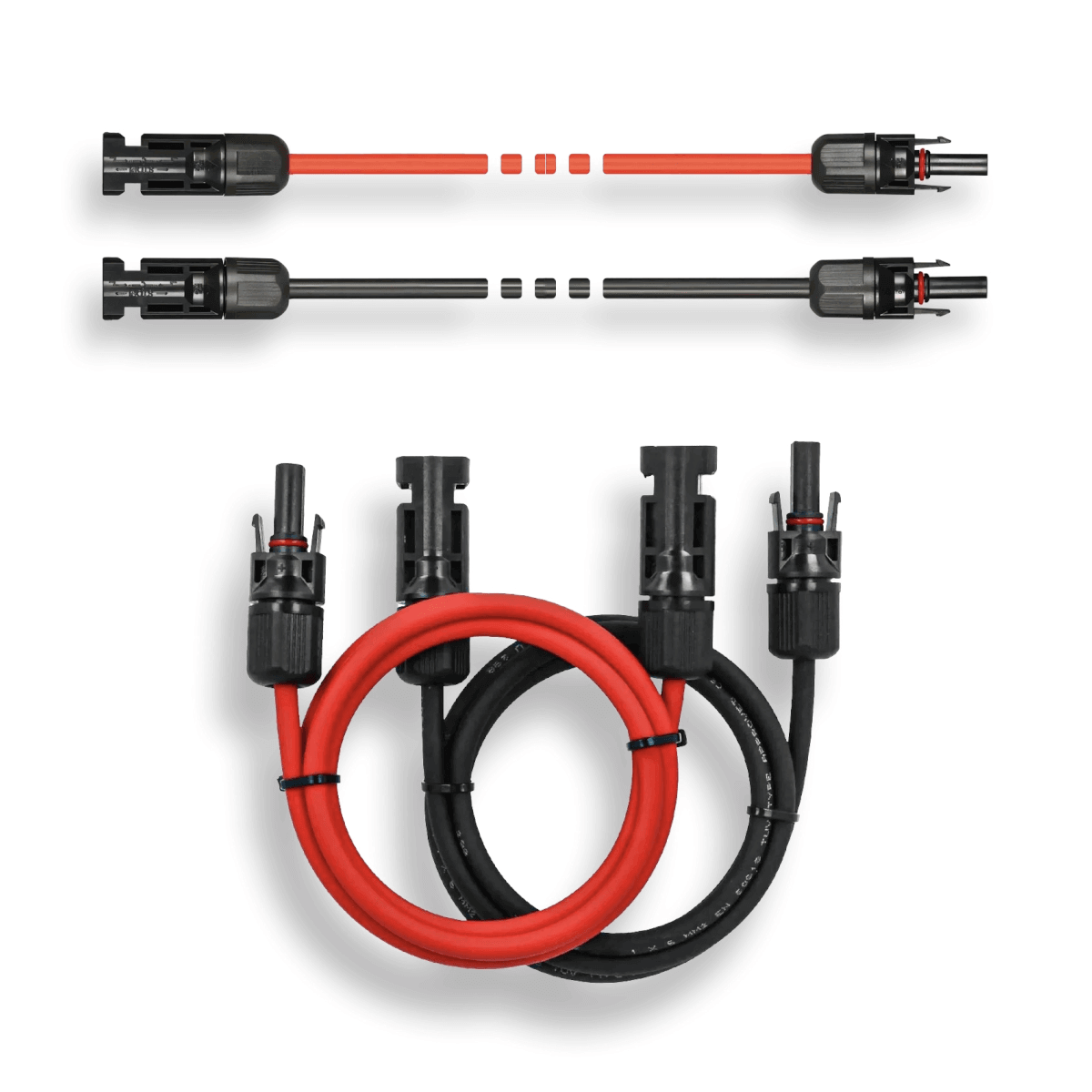

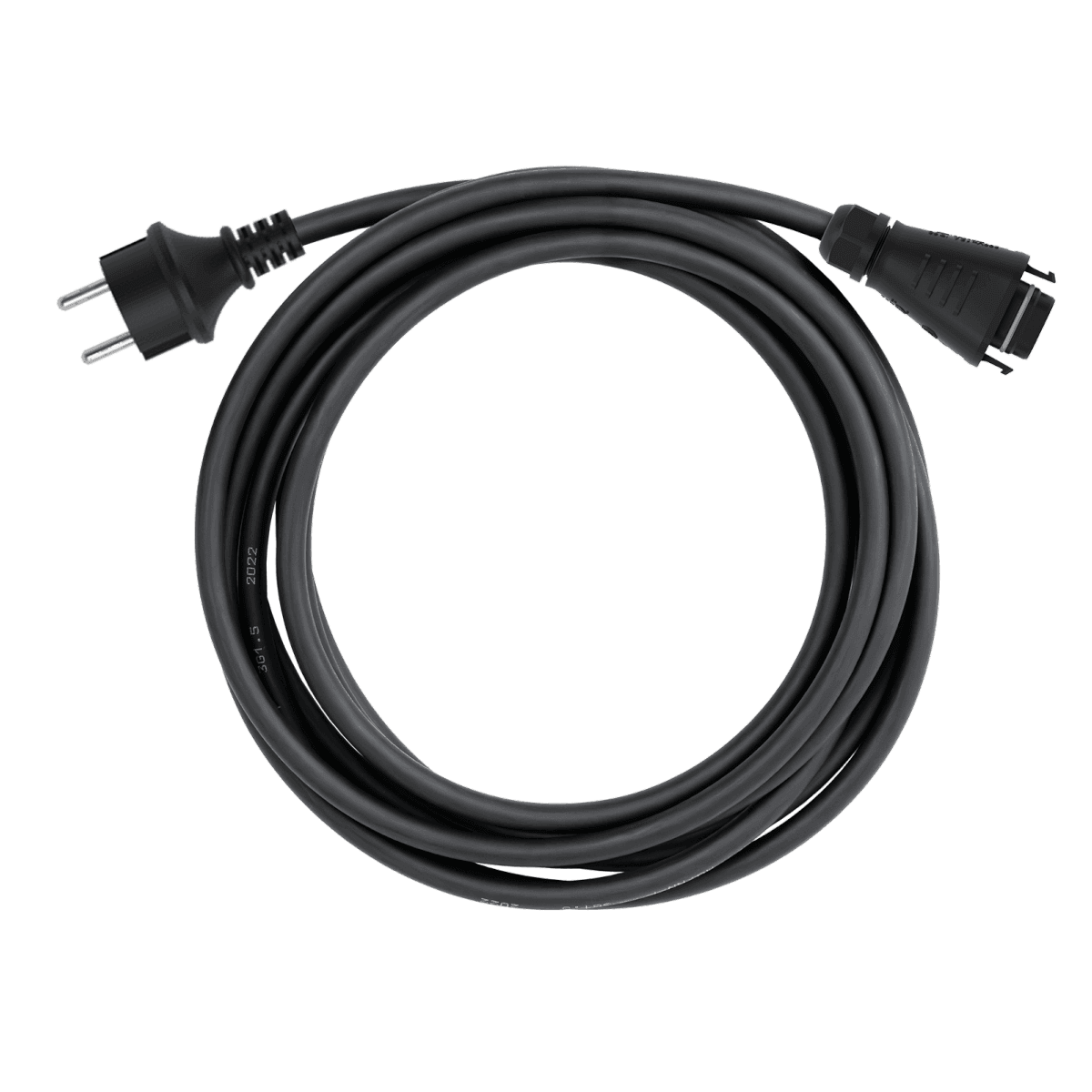

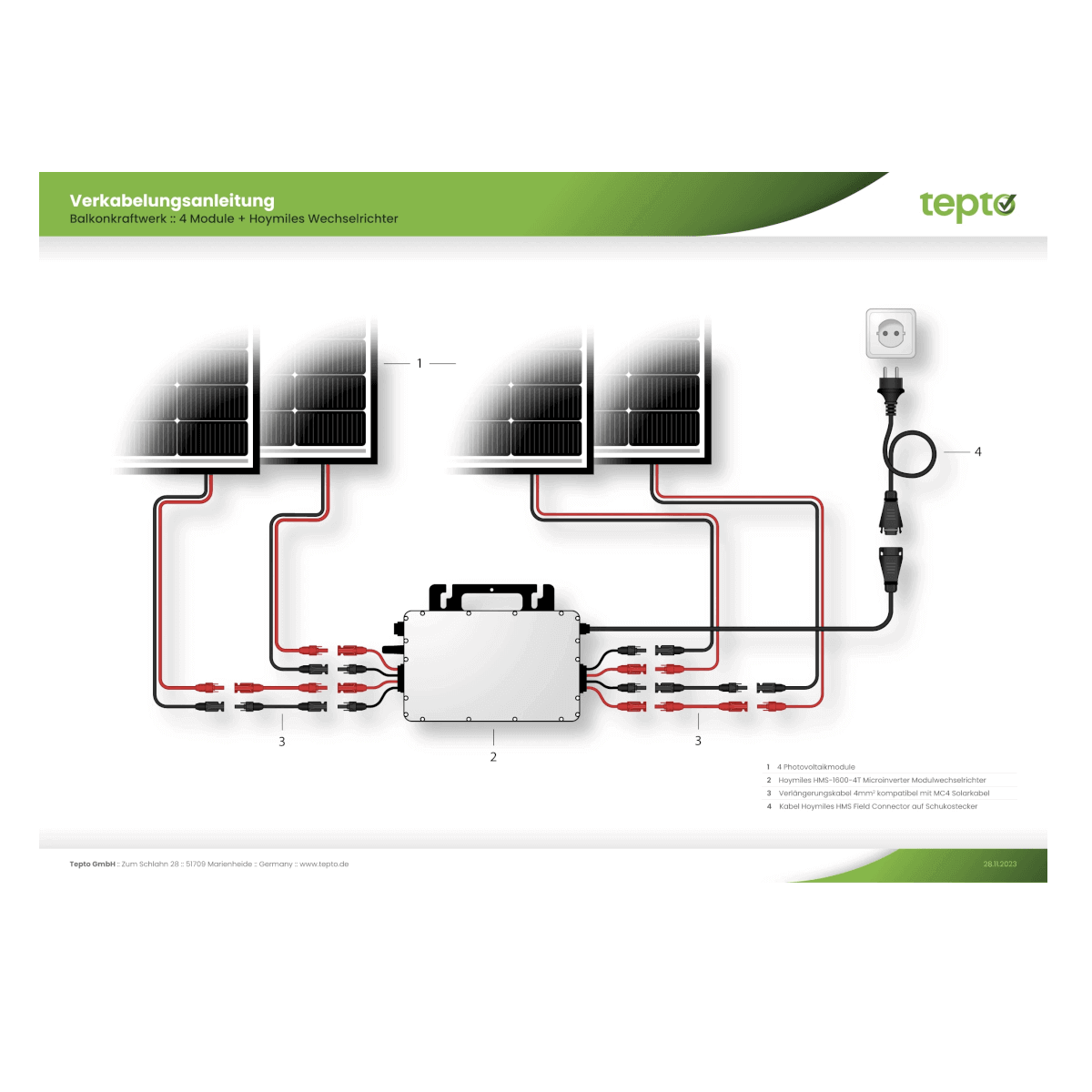

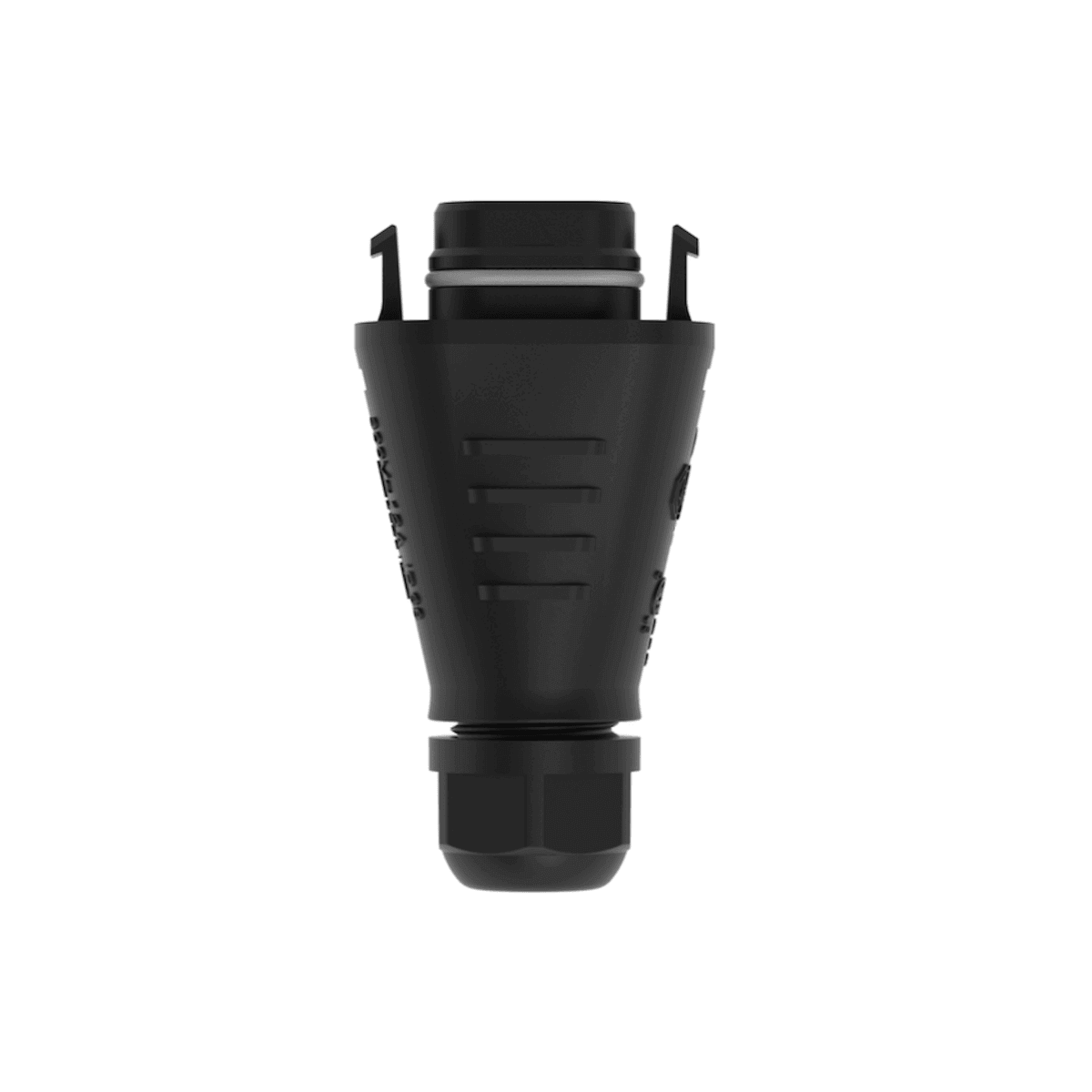

The complete system includes four JA Solar modules, the Hoymiles HMS-1600-4T microinverter, and a matching connection cable with field connector. Two red and two black extension cables (each 2 meters long) complete the package.

This comprehensive set includes all the necessary components for easy and safe installation of your balcony power plant. Optional monitoring via the DTU-Stick S-Miles Cloud also allows for detailed remote control of energy production (DTU-Stick not included).

Sustainability and long-term benefits

With this balcony power plant, you are investing in a future-oriented and environmentally friendly technology. By operating it independently, you actively contribute to reducing fossil fuel consumption and benefit from long-term savings on electricity costs.

The stable performance and a 15-year warranty also give you the assurance that your investment will pay off for many years to come. This makes the system a worthwhile choice for anyone who values ​​sustainability and independence.

1680Wp balcony power plant 4x JA Solar 420Wp Fullblack Hoymiles HMS-1600-4T

Detailed Technical Information

Technical specifications JAM54S31
