Used water memory 150 l with Incoloy 825 heating rod 2 kW

Domestic hot water tank 150 L with Incoloy 825 heating element 2 kW – Efficient and versatile hot water solution

Robust hot water tank with integrated heat exchanger

The 150-liter hot water tank is the ideal solution for centralized and reliable hot water heating. Thanks to a highly efficient heat exchanger, the drinking or service water is heated directly inside the tank using energy from solar thermal systems, boilers, or other heating systems.

The design is ideal for households with a hot water requirement of between 100 and 180 liters. With the integrated circulation connection and additional connection options, such as the possibility of a 1 1/2" Electric heating element, the system can be flexibly adapted to a wide variety of requirements.

High-quality corrosion protection and durable construction

For long-lasting performance, robust corrosion protection has been implemented inside the tank. A high-quality enamel coating combined with a large magnesium anode provides reliable protection against water and thermal corrosion.

The efficient thermal insulation made of tightly foamed polyurethane foam minimizes heat loss and thus contributes to sustainable heating operation. This quality feature guarantees that both the hot water tank and heat exchanger operate reliably over long periods of time.

Flexible connection and versatile applications

The hot water tank is versatile and compatible with various heating systems such as solid fuel, wood gasification, pellet or combination boilers as well as solar thermal systems. Thanks to the standardized connections, including 3/4" AG, the integration into existing heating systems is considerably simplified.

The option to expand the storage tank with a plug-in electric heating element also underscores the flexibility of this system. This allows the device to easily adapt to changing needs or to additional energy sources, such as photovoltaic systems.

Innovative electric heating element made of INCOLOY 825

The electric heating element, available in 2 kW and 3 kW power versions, impresses with its high-quality construction made from the INCOLOY 825 alloy. This special composition of nickel, iron, chromium, and other alloying elements guarantees outstanding corrosion resistance in a variety of environments.

With a continuously adjustable temperature range and an integrated thermostat for precise control, the system becomes a reliable component in hot water preparation. The overtemperature switch protects the system from overheating if the temperature is exceeded, contributing to worry-free operation.

Technical details and connection options

The hot water tank has a volume of 150 liters, an effective heat exchanger surface of 1.4 m², and a heat exchanger filling of 6.1 liters. The connections for flow, return, and circulation are standardized to 3/4" AG, which enables easy integration into existing systems.

The electric heating element is equipped with a stable connection thread of 1 1/2" IG and an installation length of 305 mm (for 2 kW) or 360 mm (for 3 kW). A plug-in connection to 230 V further facilitates installation in domestic hot water or buffer tanks.

Easy installation and versatile application

The use of standardized connections and the plug-in electric heating element makes installation particularly straightforward. This allows both professional heating system integration and independent conversions to be implemented without great effort.

The combination of high-quality technology, robust construction, and ease of use makes this hot water solution the ideal choice for modern households. Whether used as a central hot water system or as a supplement to existing heating systems, the system meets the highest standards of efficiency and safety.

Conclusion

The 150-liter domestic hot water tank combined with the innovative INCOLOY 825 electric heating element provides a reliable, versatile, and durable solution for hot water heating. The high-quality workmanship, sophisticated corrosion protection, and flexible connection options guarantee a high level of comfort as well as safe and energy-efficient use.

This system combines modern technology with robust materials and is therefore the perfect investment for anyone who values quality and future-proof Laying hot water supply.

Technical data

Technical data hot water tank

• Volume: 150 liters
• Heat exchanger surface: 1.4 m²
• Heat exchanger capacity: 6.1 liters
• Connection flow and return heating: 3/4" AG
• Connection flow and return domestic water: 3/4" AG
• Circulation connection: 3/4" AG
• Magnesium anode connection: 1 1/4" IG
• Connection for electric heating: 1 1/2" IG
• Thermal insulation: polyurethane foam (PUR)
• Max. operating temperature storage 95 °C
• Max. operating pressure storage tank/heat exchanger: 6 bar
• Max. operating temperature heat exchanger 100 °C
• Loss: 36 watts
• Inner diameter of storage tank: 510 mm
• Dimensions with insulation (diameter x height): 625 x 980 mm
• Weight (empty): 76 kg

Technical data heating element

• Connection: 1 1/2"
• Power supply: 230V
• max. operating pressure: 10 bar
• unheated length: 65 mm
• Installation length: 305 mm
• Safety temperature limiter: 93 °C

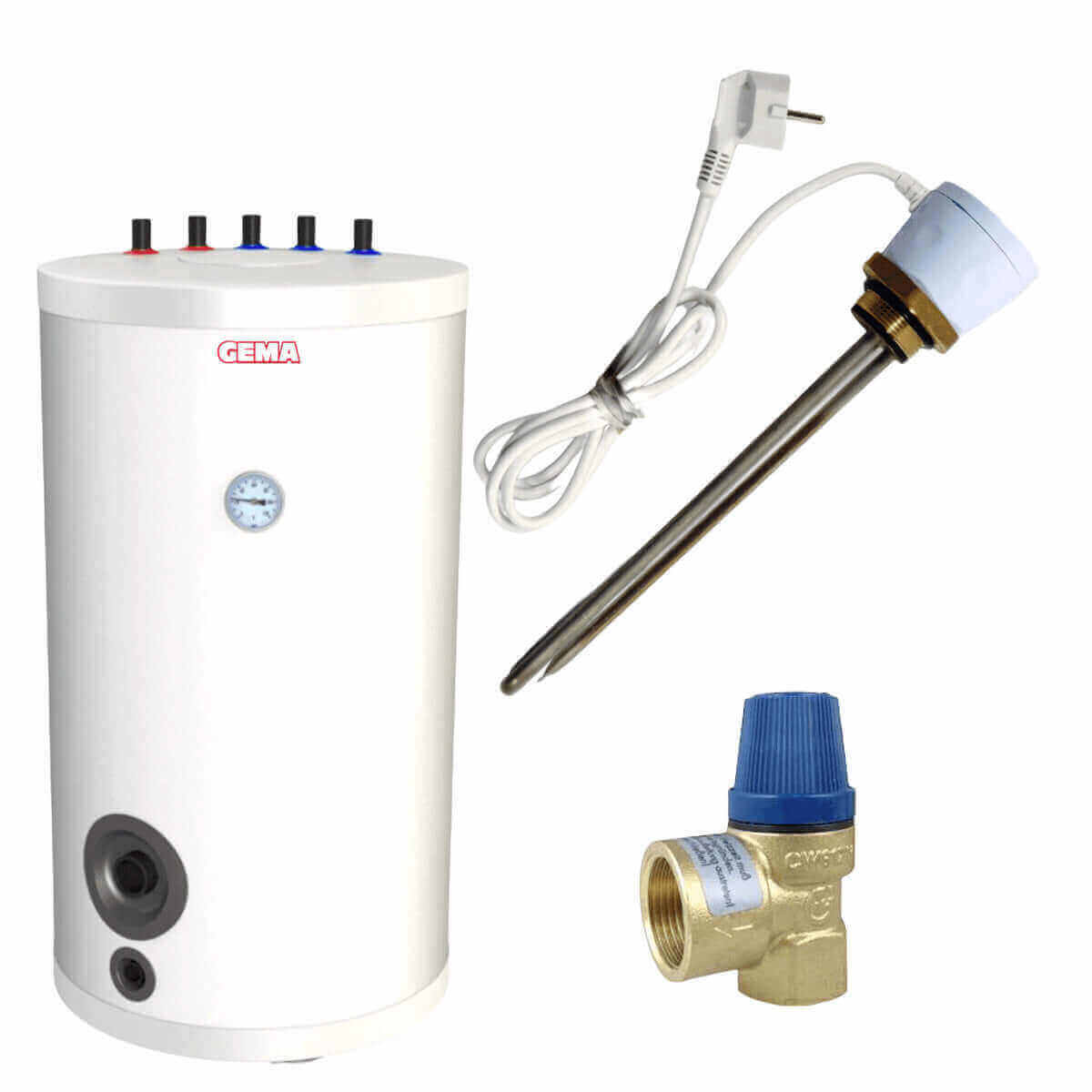

Scope of delivery

• Hot water tank with 1 heat exchanger including insulation
• safety valve
• Incoloy heating element 2 kW
• Operating and maintenance instructions
• Heating element operating instructions

Download

• Storage user manual
• certificate
• Installation instructions Heating element 230 V
• Installation instructions for heating element 400 V
